RFL Electronics RFL 9300 - Figure 10-1. RFL 9300 Supervisor Controller Module

SECTION 10: SUPERVISOR CONTROLLER MODULE
U24
U16
U17
U27
U30
U23
U28
RZ5
RZ7
U9
C36
+
U25
Y1
P1
U4
U5
U11
U1
U10
U2
U15
U14
U6
U7 U29
DS2
DS1
R22 R21
R20
R19
U31
C39
C40
R18
J5H
J5G
C6
TP4
TP3
TP1
J4
U13
U12
U19U18
U26
R12
R6
R9
R10
R3
R11
R5
R4
R7
R2 R1
R8
R15 R14
R17
R13
R16
C35
C10
C15
C11
C7
C9
C12
C3
C4
C2
C1
C14
C13
C5
C26
C27
C28
C24
C25
C20
C23
C30
C19 C18 C17
C29
C16
TP2
C31
C32
RZ4
RZ2
RZ3
RZ6
RZ9
U3
C34
C38
C33
RZ8
RZ1
U20
J3E
J1A
J2D
J1B
J2C
J3F
R23
R24
R25
R26
C43
C41
C42
C37
ECB 93B SUPERVISOR CONTROL NO. 106303-1 REV B2000 RFL ELECTRONICS, BOONTON, NJ USA
K
J
20
1
32
AC
AC
+
+
1

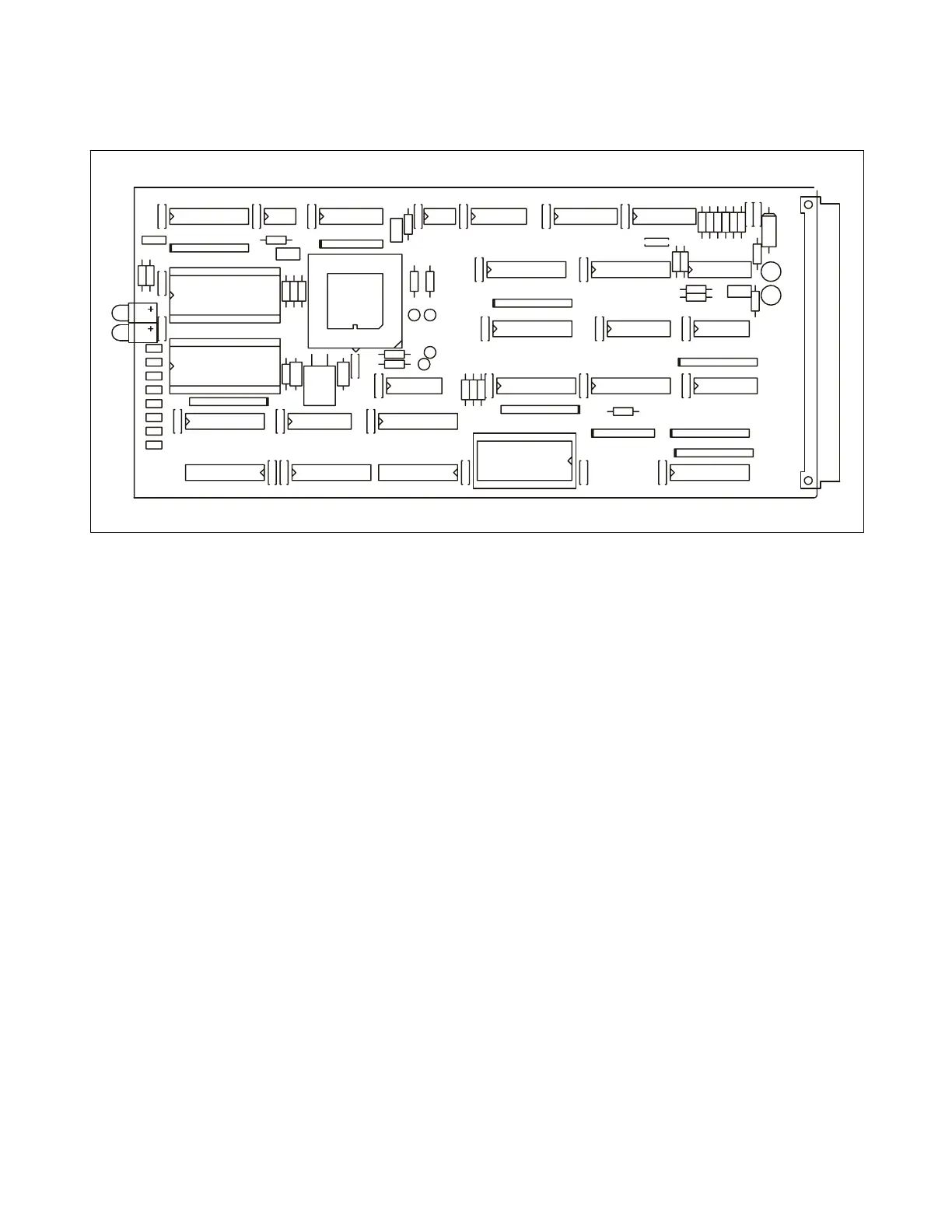

Figure 10-1. RFL 9300 supervisor controller module
10.1 DESCRIPTION
The RFL 93B SV supervisor controller module (Figure 10-1) serves as the communications hub for the RFL
9300. The supervisor controller module generates the system clock, which is the "heartbeat" of all RFL 9300
activity. During power-up, the supervisor controller module controls the initialization of all modules in the RFL
9300. It also monitors and controls many system-wide functions, such as alarms and Direct Transfer Trip (DTT)
signals.
10.2 CONTROLS AND INDICATORS
Figure 10-2 shows the location of all controls and indicators on the RFL 93B SV. These controls and indicators
are described below. Those described as front-panel controls are accessible with the RFL 93B DISPLAY in-
stalled in the RFL 9300 chassis; all others are only accessible when the RFL 93B SV is removed from the chas-
sis, or is on a card extender.
LED INDICATORS
DS1 SYS ALARM - Front-panel indicator; lights red when a system-wide problem is detected.
DS2 TX/RX ALARM - Front-panel indicator; lights red when a communications failure is detected.
