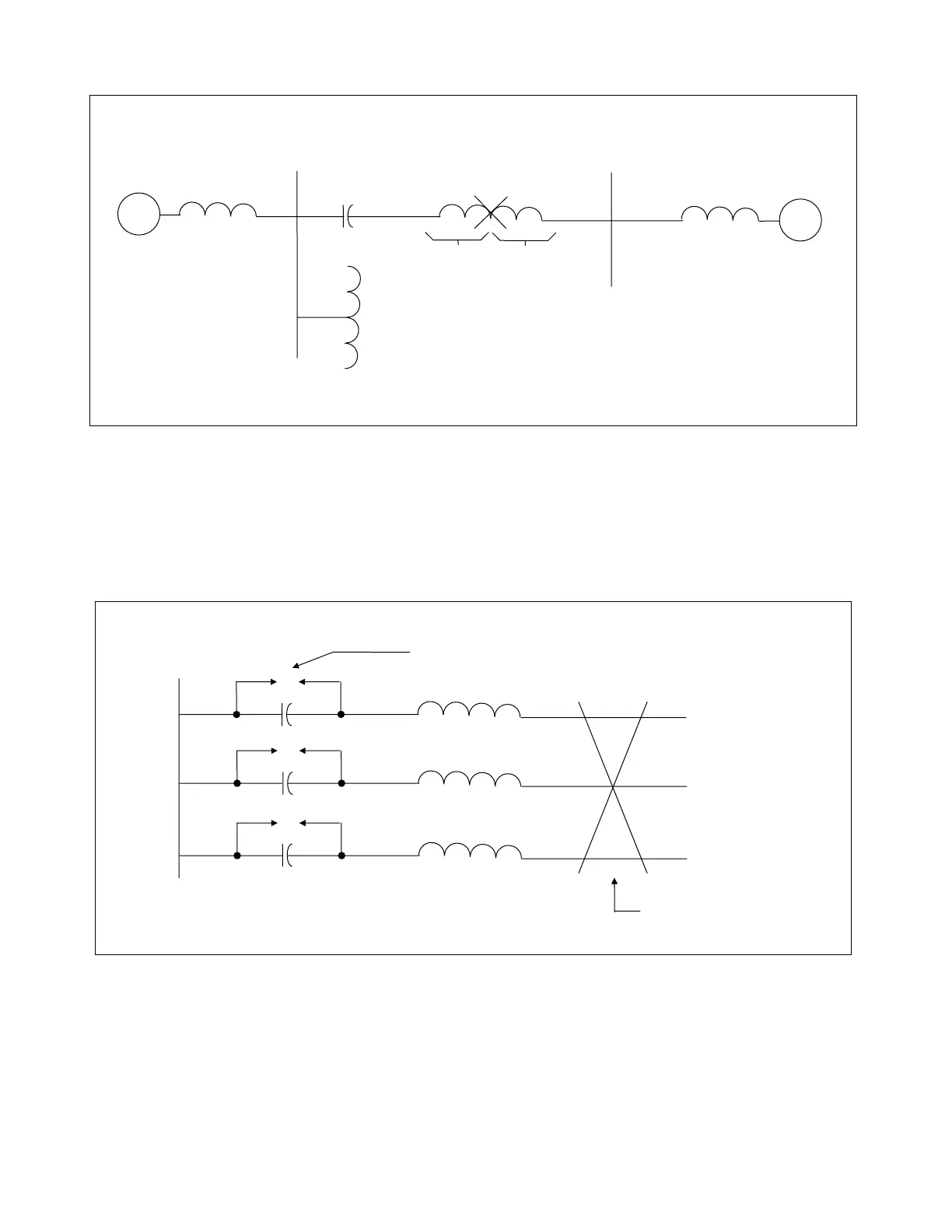

Figure 3-1. Voltage inversion

3.2.3 PHASE UNBALANCE

Severe phase unbalance may occur in series-compensated power systems. This unbalance may be caused by

non-symmetrical behavior (flashing or reinserting) of the gaps or other capacitor protective devices. (See Figure

3-2.)

Three-Phase Fault

Flashover in Phase A only

Phase C

Phase B

Phase A

nZL

(

l-n

)

REMOTE

If | nZ

L | < | ZC |, then

R is inverted

LOCAL

Figure 3-2. Phase unbalance

Phase unbalance causes circulating zero-sequence and negative-sequence currents. These may affect the op-

eration of distance relays, directional overcurrent relays, and current-only schemes that compare composite

quantities. The RFL 9300 is unaffected by phase unbalance because it operates on a per-phase basis; each

phase current and the 3I

current are compared separately.

RFL 9300 RFL Electronics Inc.

August 25, 2000 3 - 2 (973) 334-3100
