RFL Electronics RFL 9300 - Figure 6-32. Typical RFL 9300 Three-Terminal Addressing Scheme

To Next Page

To Previous Page

STATION C

TX1

TX2

TX1

TX2

STATION A

TX1

TX2

STATION B

LOCAL

REMOTE 1

REMOTE 2

4055

0040

0070

4025

0050

4045

LOCATION

OF OPERATOR

STATION C

TX1

TX2

TX1

TX2

STATION A

TX1

TX2

STATION B

LOCAL REMOTE 1

REMOTE 2

4055

0040

0070

4025

0050

4045

LOCATION

OF OPERATOR

STATION C

TX1

TX2

TX1

TX2

STATION A

TX1

TX2

STATION B

LOCAL

REMOTE 1

REMOTE 2

4055

0040

0070

4025

0050

4045

LOCATION

OF OPERATOR

B. “View” from station B

A. “View” from station A.

C. View from station C.

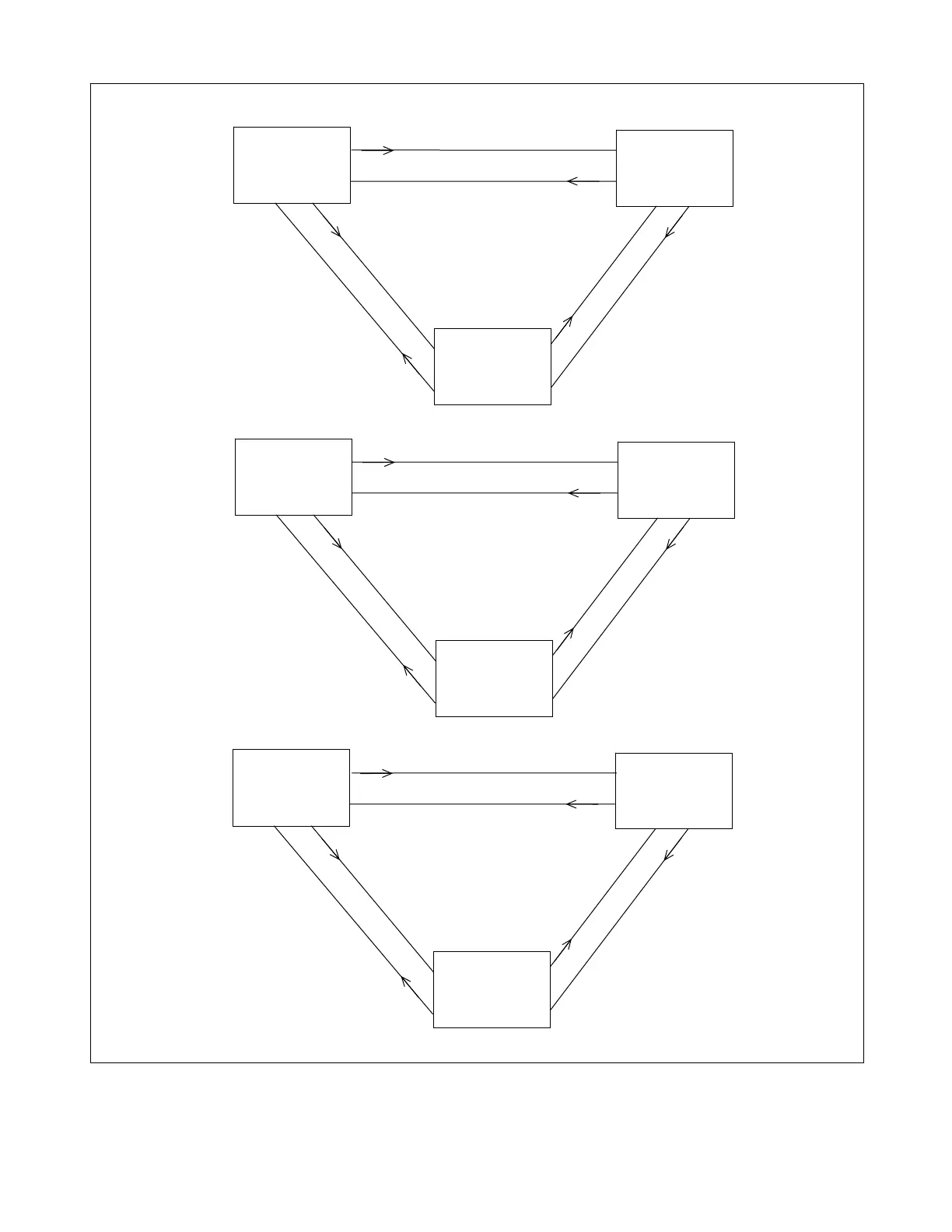

Figure 6-32. Typical RFL 9300 three-terminal addressing scheme
