If there is phase inversion or phase rotation at the local station as shown in Figure 8-12, the resulting Differen-

tial Current that will be displayed at all stations will be approximately double the current at the local station or

about 4 amps.

3 Amps

Remote 2

Station A

Station B

Communication

Channels

2 Am

5 Amps

RFL 9300

Three

Terminal

RFL 9300

Three

Terminal

Local

Remote 1

Phase input

to local relay

inverted

Station C

RFL 9300

Three

Terminal

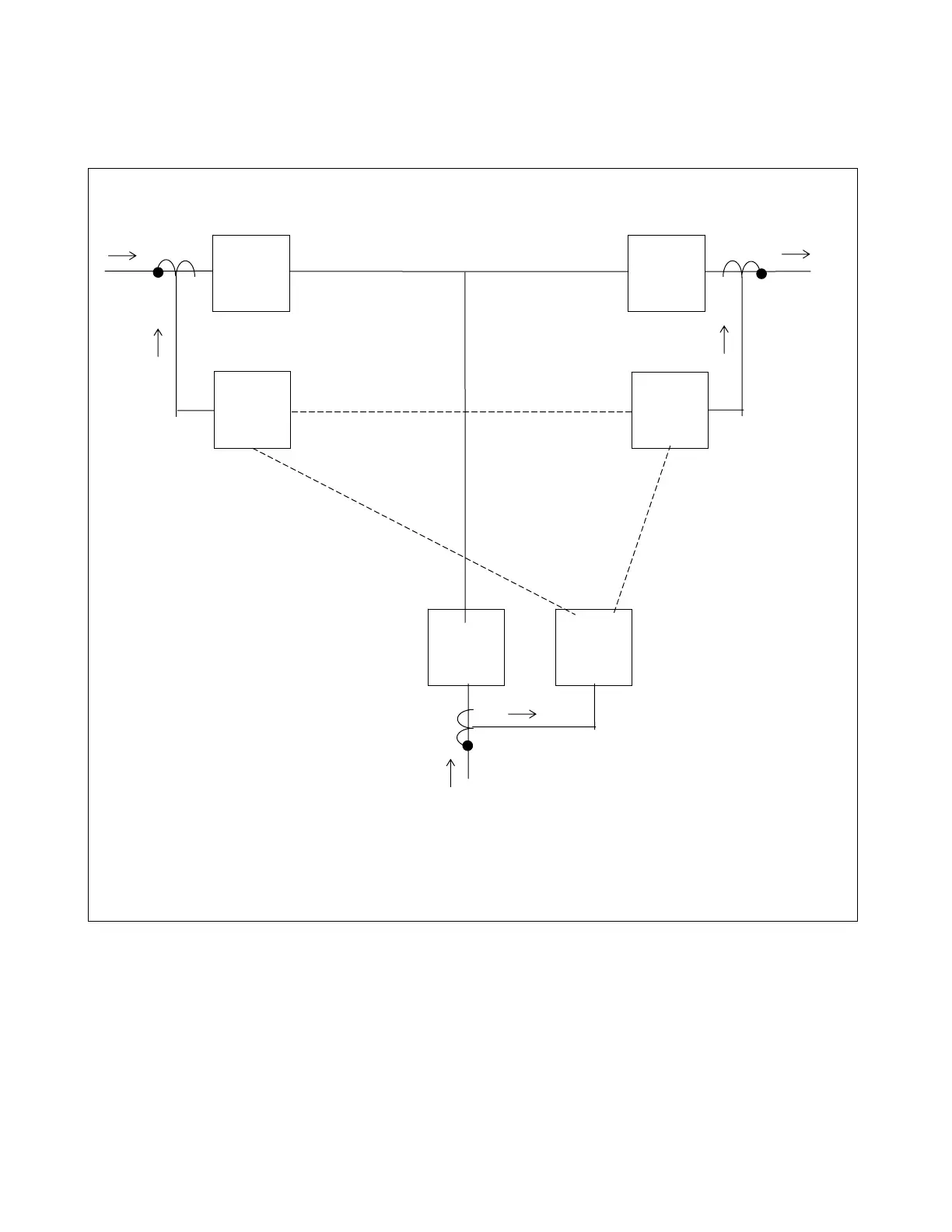

Figure 8-12. Phase inversion at local station

RFL 9300 RFL Electronics Inc.

October 20, 2004 8 - 36 (973) 334-3100
