SECTION 17: SINGLE WIDTH FIBER OPTIC TRANSCEIVER MODULE
U1
U3
U2
R3
C15
C13
J1
U6
C9
C3
C7
L2
U4
U5
R9
TP1
U8
RZ1
RZ2
R2
R1
R5
R4
R8
R14 R10
R11 R12
R7 R6
R13
R21
R17
R20
R18 R19
R22 R23
C14
C12
J2
C8
C11
C5 C4
C20
C21
C22
C19
C18
C17
C23
C24
C10
C6
TP2 TP3
TP4
TP5
TP6TP7
TP8
DS1
R25
DS2
R26
U10
R28
56K
64K
I128K
128K DIS1Q DIS2Q
A
B
32
+ +

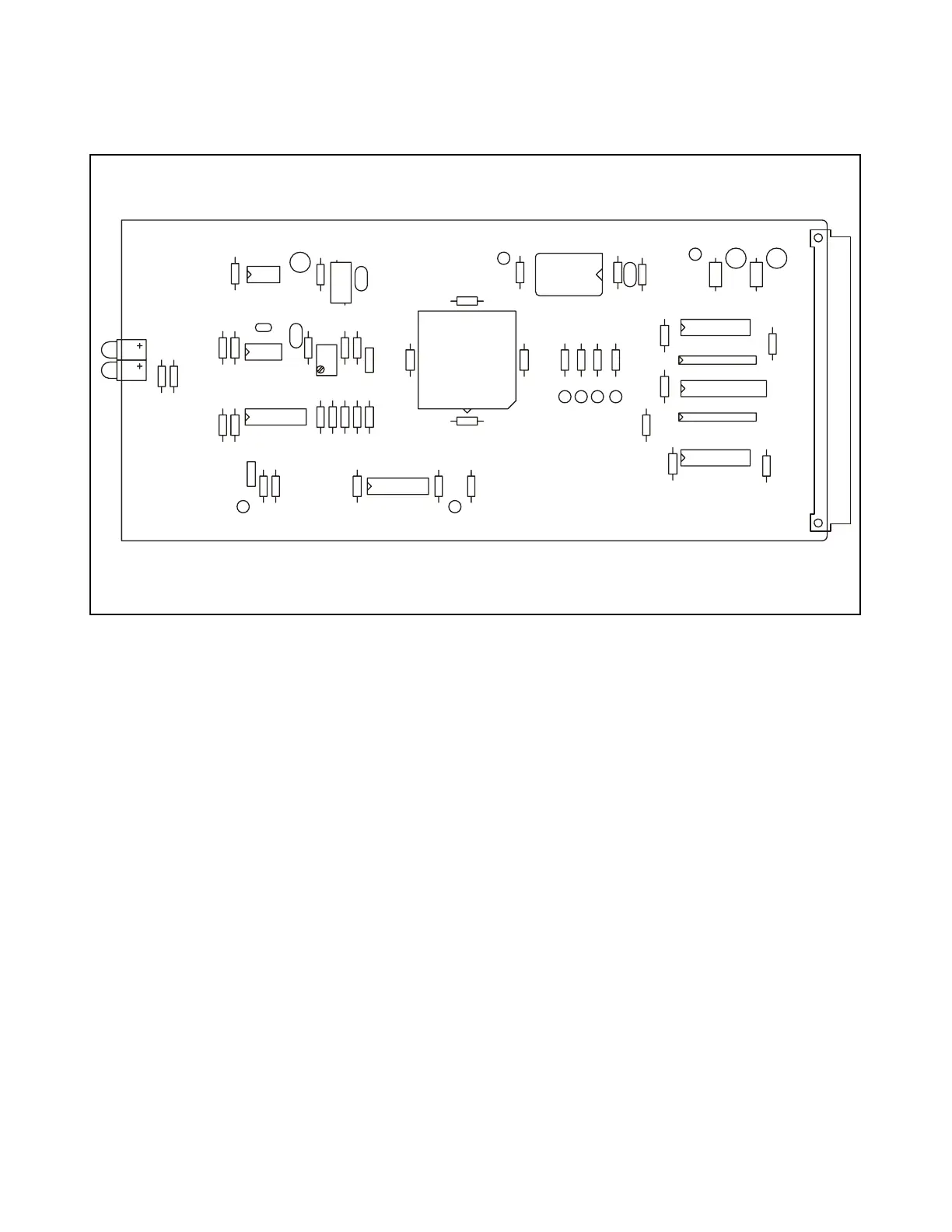

Figure 17-1. RFL 93 B FT/FR Single width fiber optic transceiver module
17.1 INTRODUCTION
The RFL 93B FT/FR single width fiber optic transceiver module (Figure 17-1) consists of a fiber optic transmitter
and a fiber optic receiver housed in a single 1.4 inch wide module. For this reason it is referred to as a single
width transceiver module.
The transmitter section accepts signals generated by the RFL 93B CC Communications Controller module
(Section 13) and conditions them for optic transmission. A transmitter output monitor on the module will activate
an alarm if transmitter power is lost.
The receiver section accepts inputs from a fiber optic I/O module (Section 18) and converts them back into RS-
422 signals that can be processed by the RFL 93B CC Communications Controller module (Section 13).
