AUX2 AUX3 AUX4

1 2 3 4 5 6

AUX2 AUX3 AUX4

123456

AUX2 AUX3 AUX4

1 2 3 4 5 6

TRIP1 TRIP2 AUX1

1 2 3456

TRIP1 TRIP2 AUX1

1 2 3 4 5 6

TRIP1 TRIP2 AUX1

1 2 3 4 5 6

TB1A

TB1B

TB2A

TB2B

TB3A

TB3B

PHASE A PHASE B PHASE C

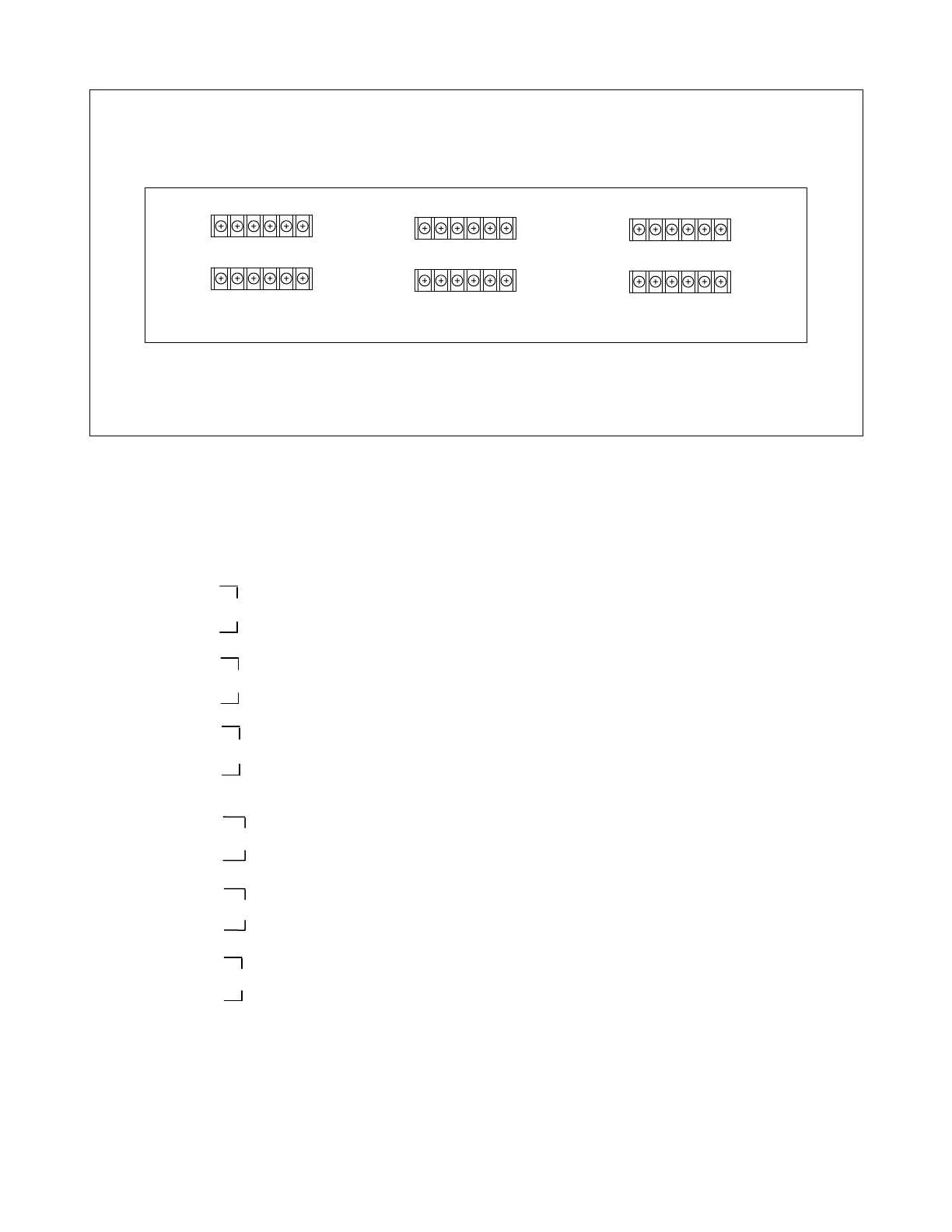

Figure 24-3. Typical RFL 9300 Single Pole Chassis, rear panel view

24.2.2 TERMINAL BLOCKS

24.2.2.1 PHASE A TERMINAL BLOCKS

TB1A 1

RFL 9300 RFL Electronics Inc.

TB1B 1

AUX2 Auxiliary contacts available to the user for phase A

TRIP1 Trip 1 relay contacts for phase A

AUX3 Auxiliary contacts available to the user for phase A

AUX4 Auxiliary contacts available to the user for phase A

AUX1 Auxiliary contacts available to the user for phase A

TRIP2 Trip 2 relay contacts for phase A

August 25, 2000 24 - 3 (973) 334-3100
