SECTION 19: POWER SUPPLY MODULE

1 ON

0 OFF

-15V

+15V

+5V

9300

48/125 VDC

106715

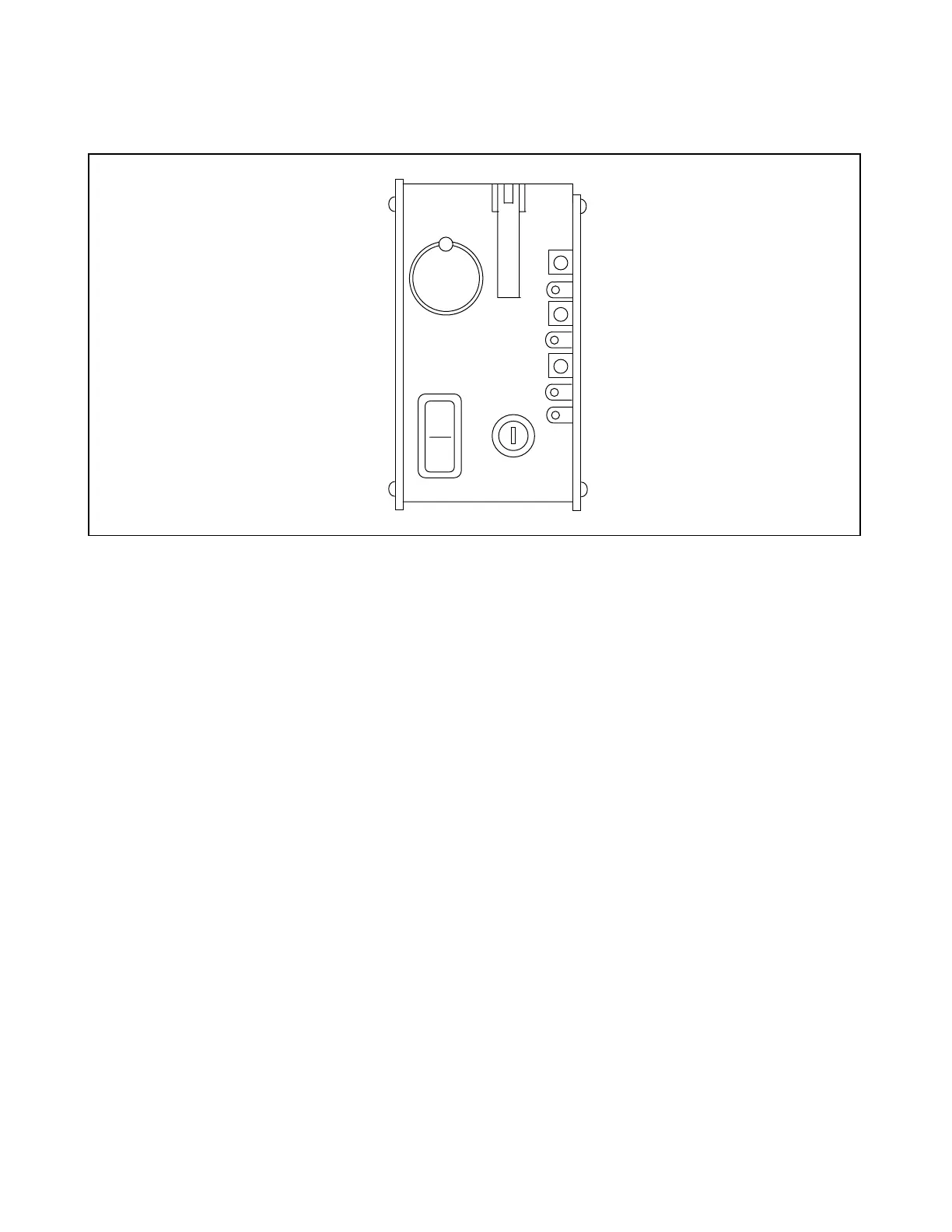

Figure 19-1. Typical RFL 9300 power supply module

19.1 DESCRIPTION

The wide range, 50 Watt power supply shown in Figure 19-1 is a multiple output, forward, dc to dc converter,

which is used to supply regulated dc power to the RFL 9300 Charge Comparison System. The power supply

operates from a 38 to 150 Vdc input and provides three regulated dc outputs: +5 Vdc at 2.5 Amps, + 15 Vdc at

1.3 Amps, and -15 Vdc at -0.6 Amps. All outputs have overvoltage protection and short circuit protection, and

the entire power supply will shut down if the ambient temperature exceeds a pre-established limit. All outputs

are constantly monitored and are connected to a common ground. Should any output exceed lower limits power

fault monitor (U9), will generate an under voltage signal.

RFL 9300 RFL Electronics Inc.

May 5, 2002 19 - 1 (973) 334-3100
