RFL Electronics RFL 9300 - Figure 16-3. Component Locator Drawing, RFL 93 DD I;O Direct Digital I;O Module

To Next Page

To Previous Page

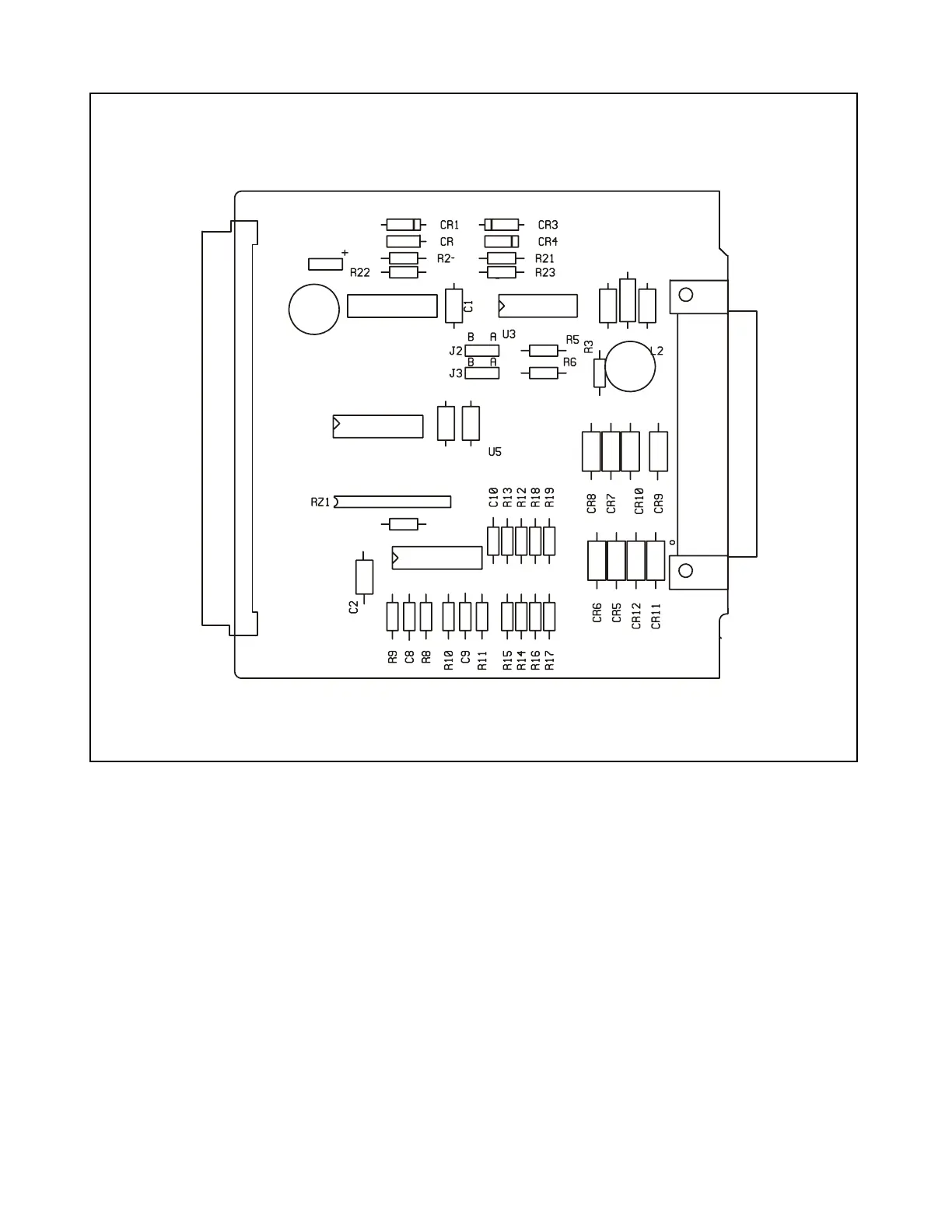

Figure 16-3. Component locator drawing, RFL 93 DD I/O Direct Digital I/O Module

(Assembly No. 103830-1; Drawing No. C-103833-1, Rev. A)

RFL 9300 RFL Electronics Inc.

May 1, 1998 16 - 5 (973) 334-3100
