SECTION 15: LINE COUPLER I/O MODULE

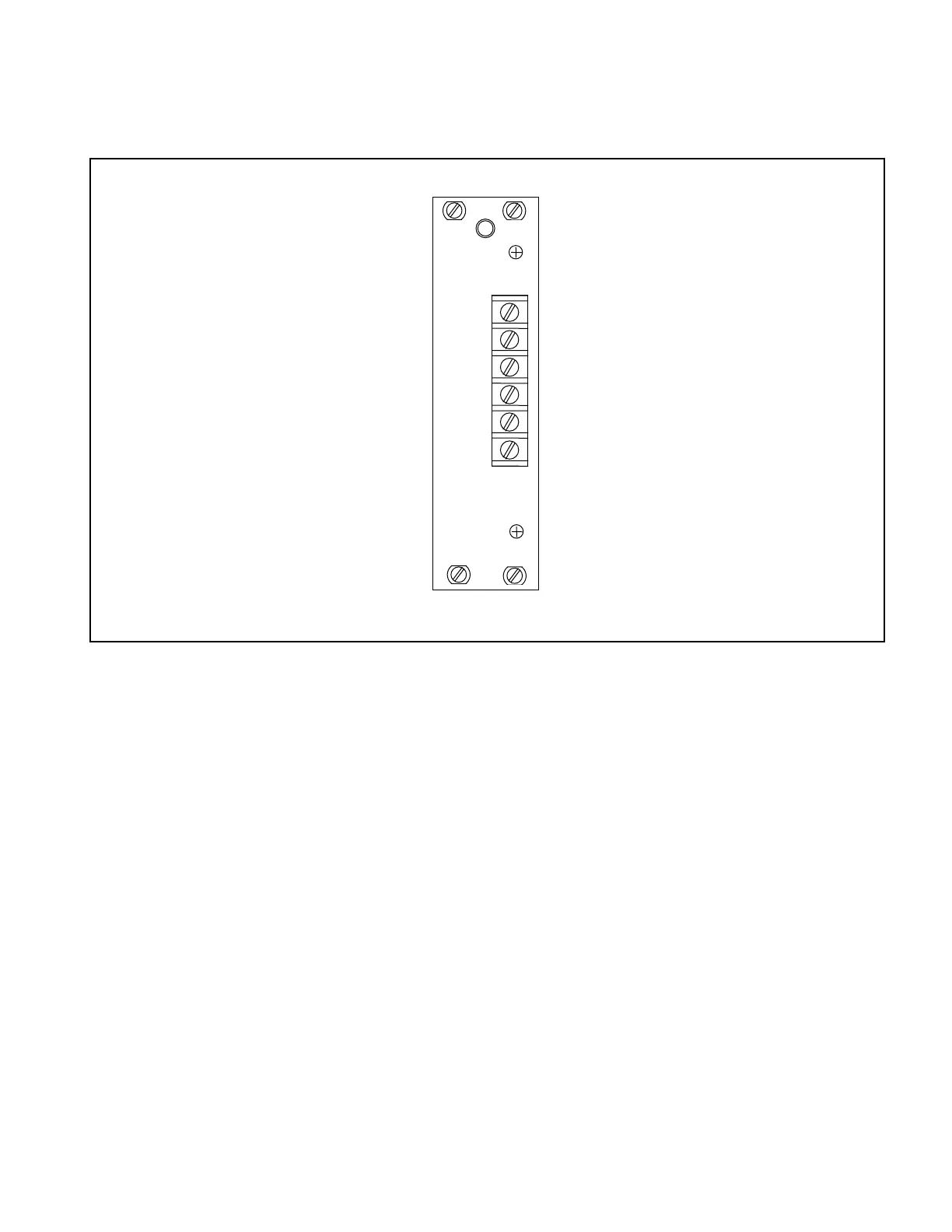

Figure 15-1. RFL 93 LC I/O Line Couple I/O Module

15.1 DESCRIPTION

The RFL 93 LC I/O Line Coupler I/O Module (Fig. 15-1) acts as a barrier between the telephone lines and the RFL

93B MO Modem Module. Its design incorporates isolation transformers (one for incoming signals and one for out-

going signals) which are designed for 600-ohm impedances, which are common in most telephone leased line cir-

cuits.

15.2 CONTROLS AND INDICATORS

The RFL 93 LC I/O has no controls or indicators; it is a passive module. There is a four-position terminal block on

its rear panel which provides connections to a four-wire telephone line:

4W TX Connect to terminals 1 and 2.

4W RX Connect to terminals 3 and 4.

RFL 9300 RFL Electronics Inc.

May 1, 1998 15 - 1 (973) 334-3100
