RFL Electronics RFL 9300 - Figure 8-9. Correctly Wired Three-Terminal System

To Next Page

To Previous Page

8.4.4.5.2 Three Terminal Systems

If the differential current is greater that 1 AMP, the resulting differential current value may indicate which relay is

incorrectly wired.

If all three relays are wired correctly then the sum of the currents going into the local

and remote 2 relays will be

the same as the current going out of the remote 1 relay

as shown in Figure 8-9, and the differential current on

Phase A will be zero.

Station A

Station B

Communication

Channels

RFL 9300

Three

Terminal

RFL 9300

Three

Terminal

Local

Remote 1

2 Am

5 Amps

RFL 9300

Three

Terminal

Station C

Remote 2

3 Amps

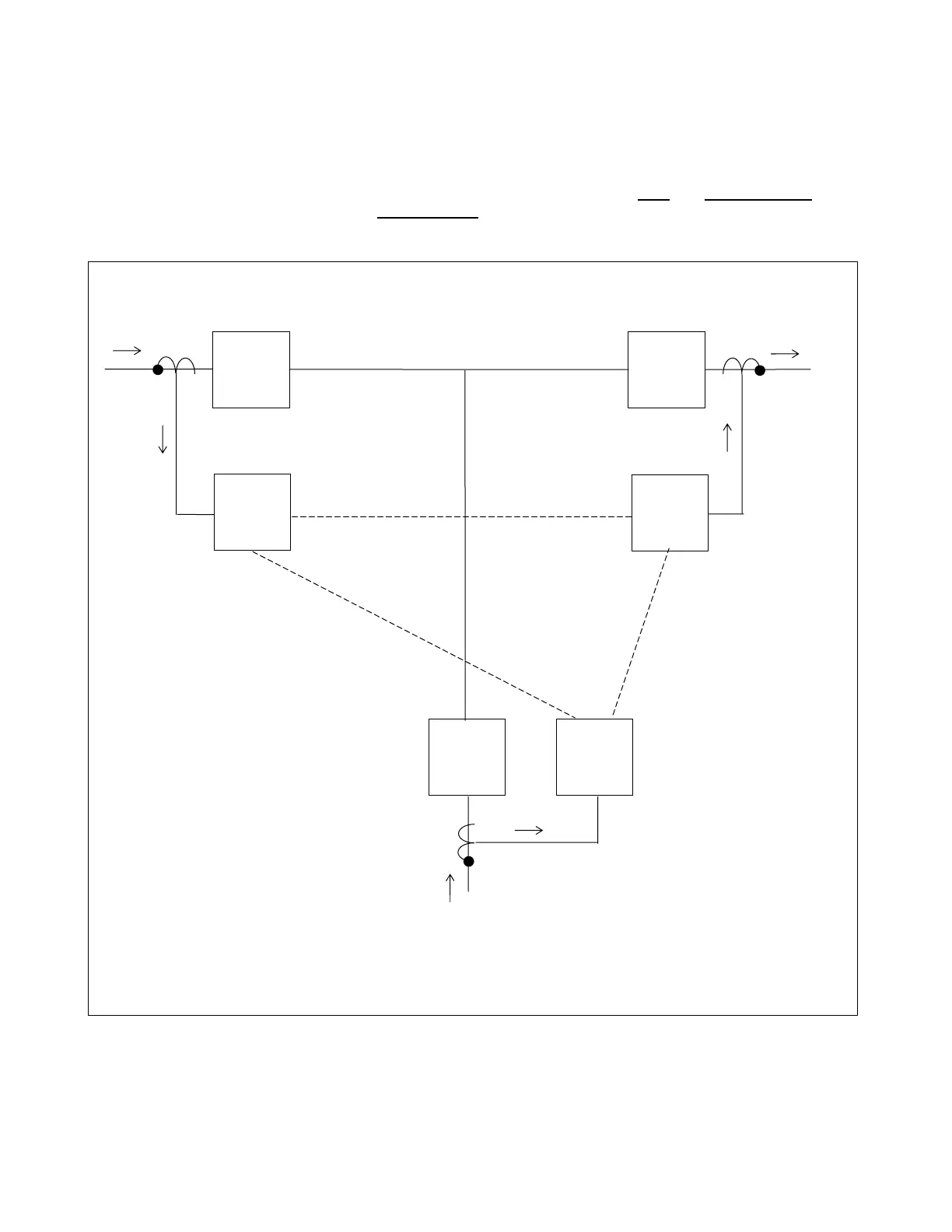

Figure 8-9. Correctly wired three-terminal system
