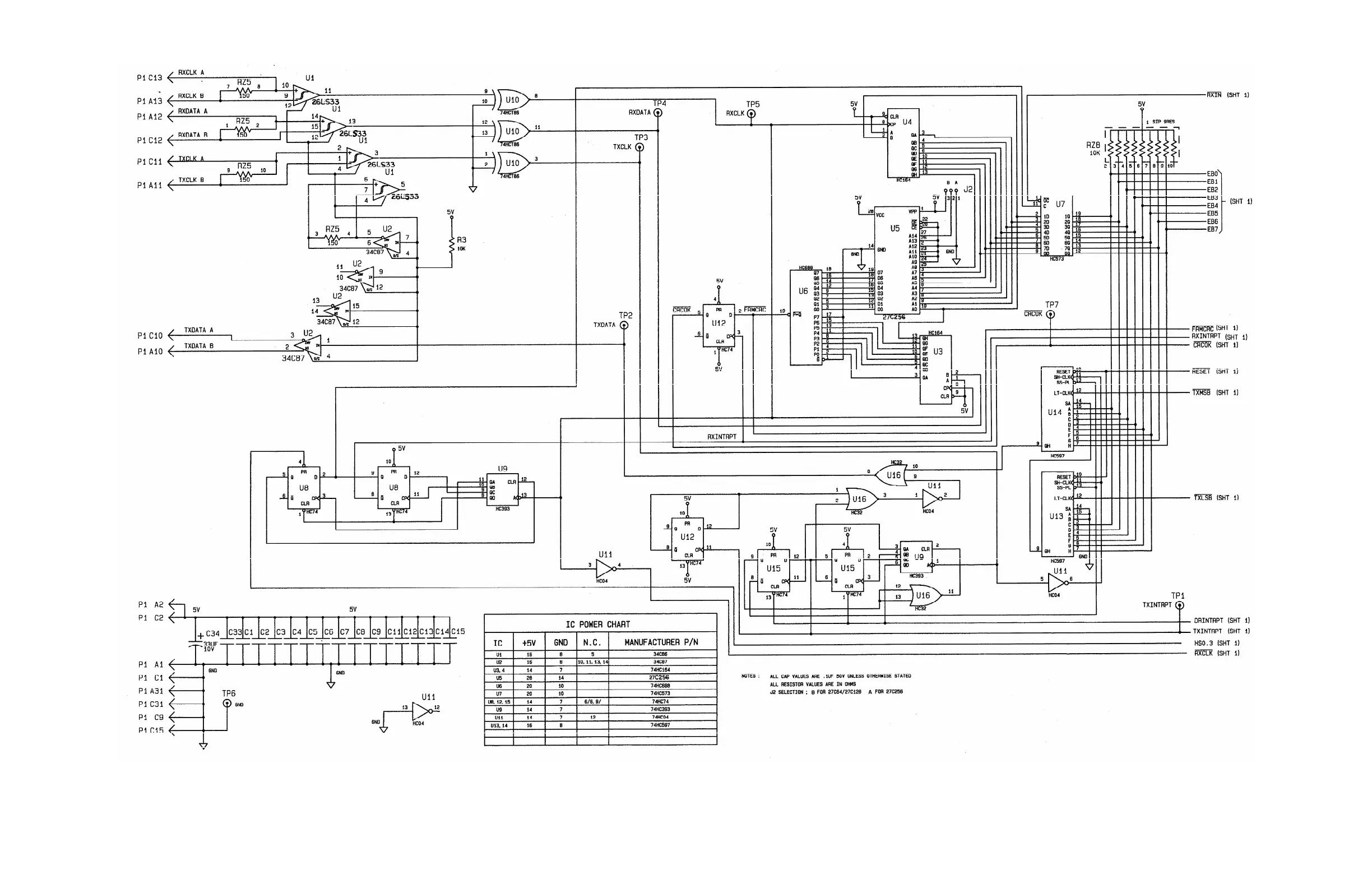

Figure 13- 8. Communications controller module for
RFL 9300 Charge Comparison System
(Assembly No. 106365; Schematic No. D-103824, Rev. E)
Sheet 2 of 2
