10.12
SEL-400 Series Relays Instruction Manual Date Code 20171006
Testing, Troubleshooting, and Maintenance
Test Methods
Step 3. View the SER settings.
a. Click the + next to the Report branch of the QuickSet Settings
tree view structure shown in Figure 10.5.
b. Click on the SER Points and Aliases branch.

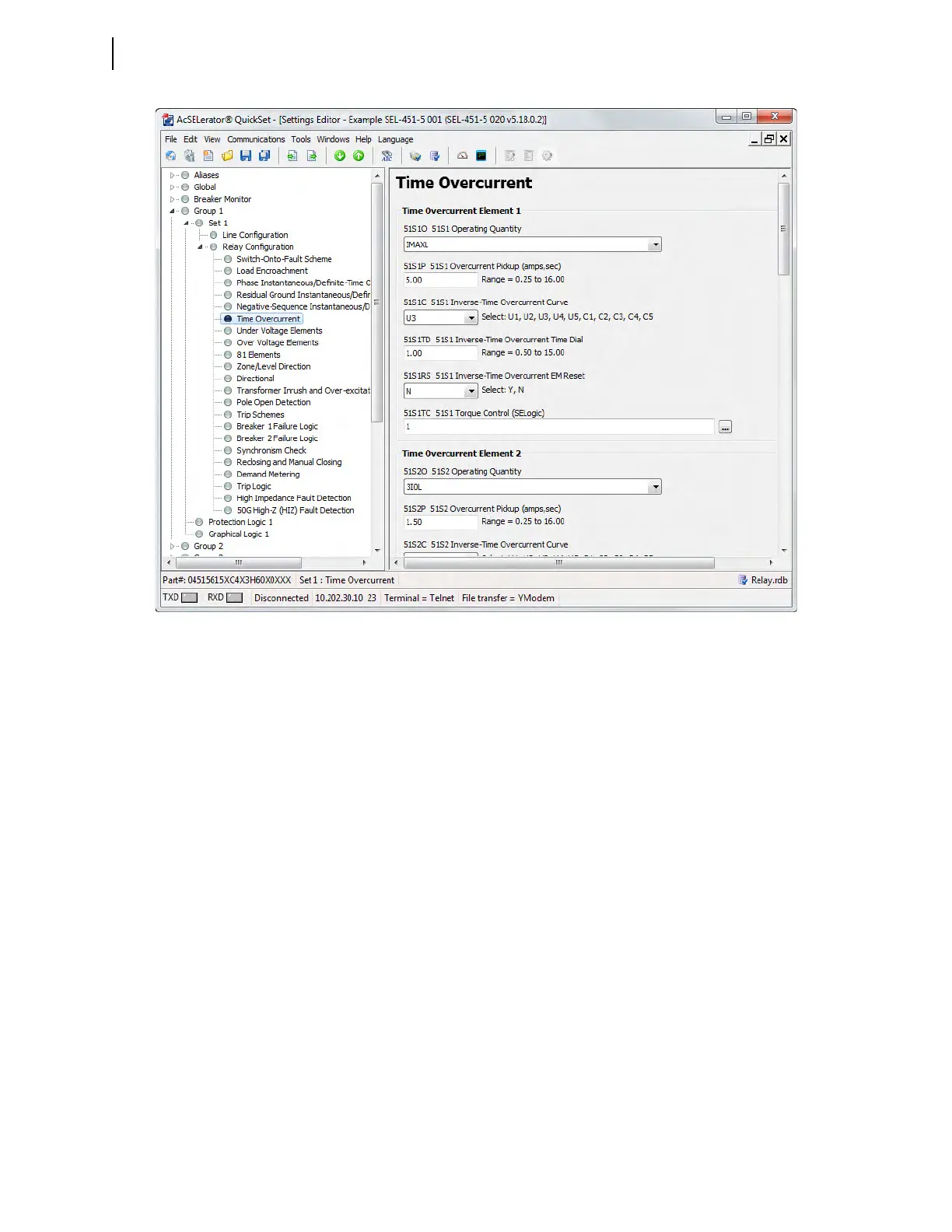

Figure 10.4 Checking the 51S1 Overcurrent Element: QuickSet
