Basic Relay Operations
Examining Relay Elements
Step 3. Click File > Save to save the new settings in QuickSet.
Step 4. Upload the new settings to the SEL-451.
a. Click File > Send.
QuickSet prompts you for the settings class you want to send to
the relay, as shown in the Group Select dialog box of Figure 3.38.
b. Click the check box for Front Panel.
c. Click OK.
The relay responds with the Transfer Status dialog box shown
in Figure 3.38.
If you see no error message, the new settings are loaded in the relay.

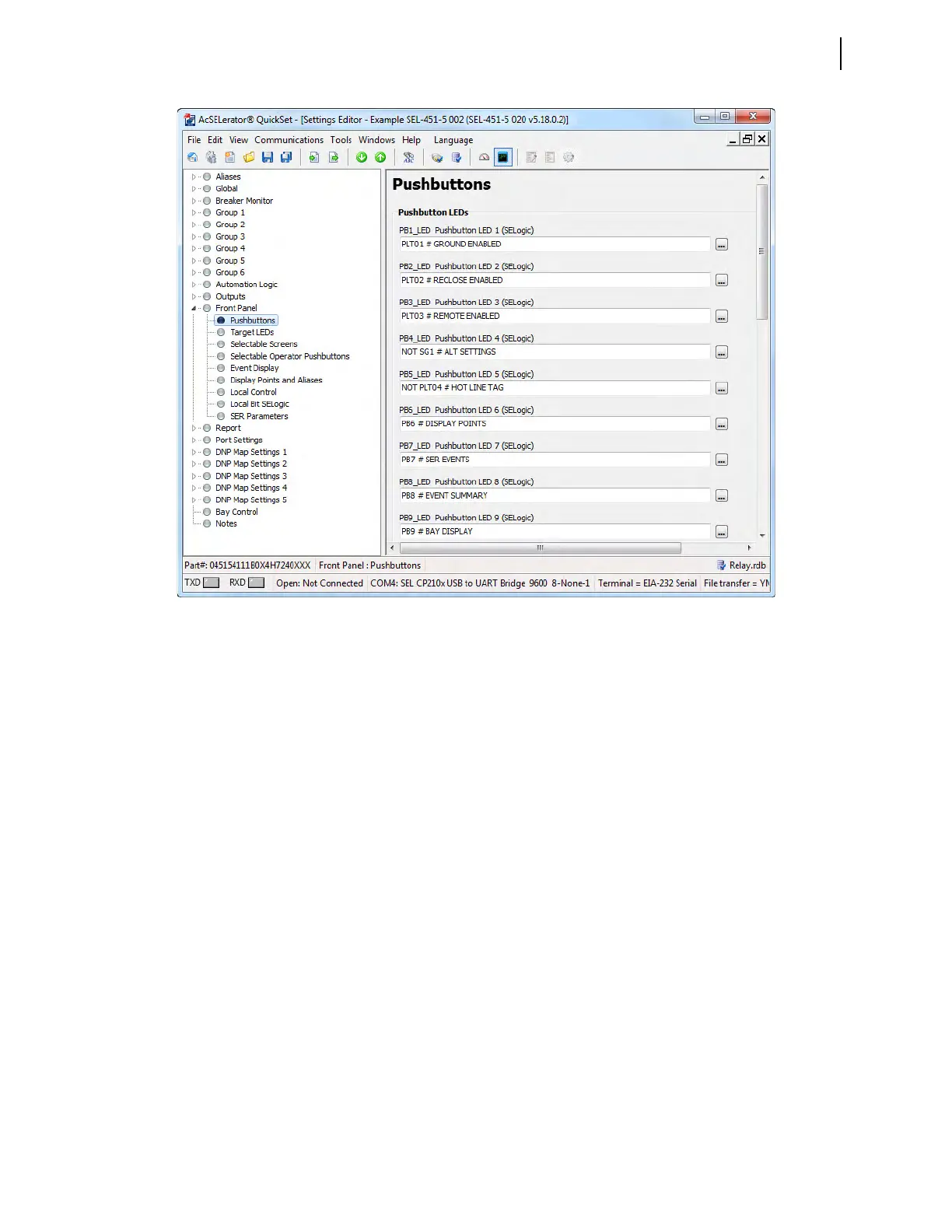

Figure 3.37 Setting Pushbutton LED Response in QuickSet
