3.72
SEL-400 Series Relays Instruction Manual Date Code 20171006
Basic Relay Operations
Operating the Relay Inputs and Outputs
Step 3. Access the Control Inputs settings.
a. Click the arrow next to the Global branch of the Settings tree view.
b. Click the arrow next to the Control Inputs branch of the
Settings tree view (see Figure 3.64).
Step 4. Set EICIS Independent Control Input Settings to Y.

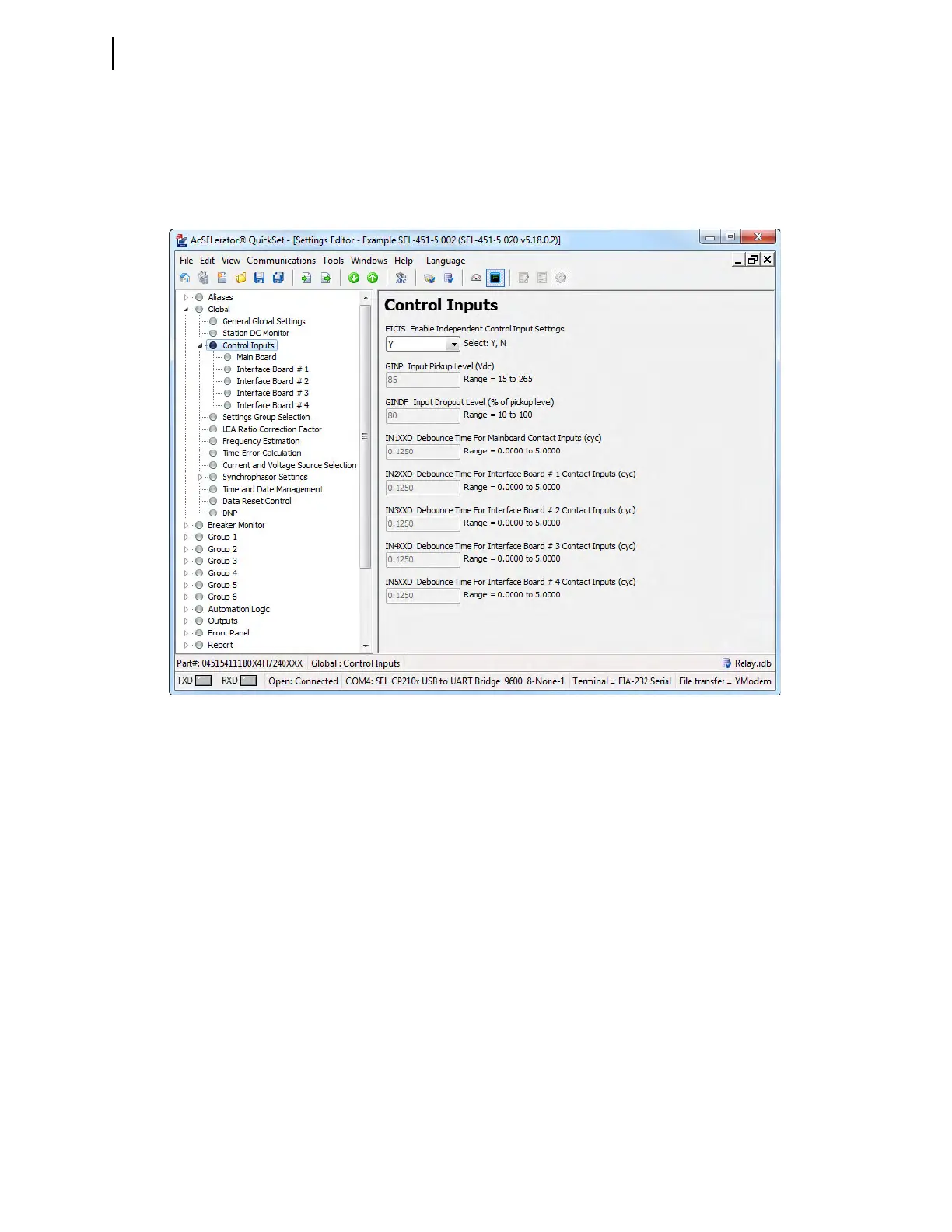

Figure 3.64 Accessing Control Inputs Settings in QuickSet
