SEL-400 Series Relays Instruction Manual Date Code 20171006
Basic Relay Operations
Configuring Timekeeping
Step 5. Configure a control output to alarm a loss of HIRIG mode.
a. In the Settings tree view, click Outputs and then click Main
Board (see Figure 3.68).
b. In the OUT108 Main Board Outputs text box, enter the OR
NOT PSV02 condition to the preexisting OUT108 := NOT
(SALARM OR HALARM) equation, as shown in Figure 3.68.

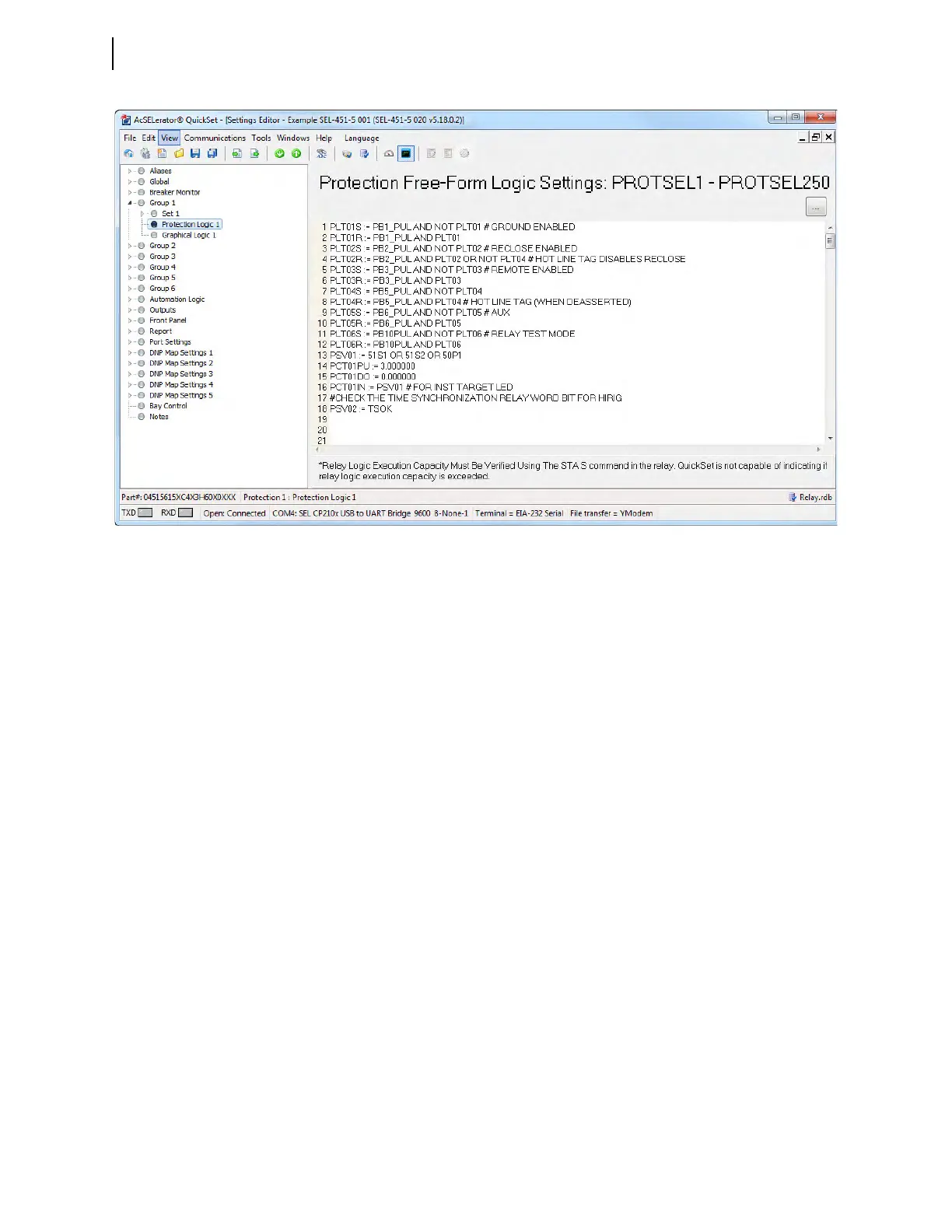

Figure 3.67 Programming a PSV to Monitor HIRIG in QuickSet
