Procedure

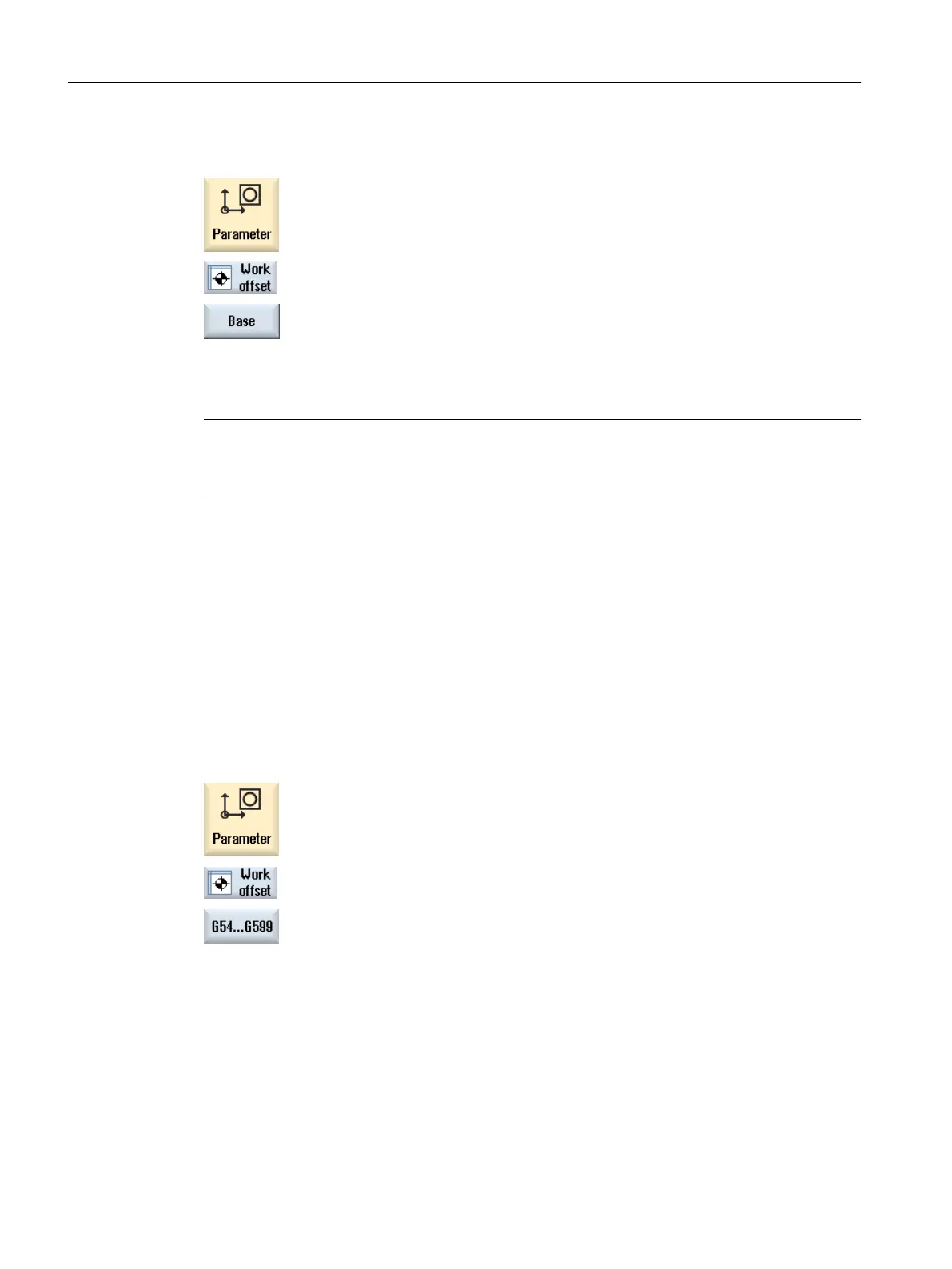

1. Select the "Parameter" operating area.
2. Press the "Zero offset" softkey.
3. Press the "Base" softkey.
The "Zero Offset - Base" window is opened.
4. You can edit the values directly in the table.
Note
Activate base offsets
The offsets specified here are immediately active.
4.8.4 Displaying and editing settable zero offset
All settable offsets, divided into coarse and fine offsets, are displayed in the "Work offset -
G54...G599" window.
Rotation, scaling and mirroring are displayed.
Procedure
1. Select the "Parameter" operating area.
2. Press the "Work offset" softkey.
3. Press the "G54 … G599" softkey.
The "Work offset - G54 ... G599 [mm]" window opens.
Note
The labeling of the softkeys for the settable work offsets varies, i.e. the
settable work offsets configured on the machine are displayed (exam‐
ples: G54 … G57, G54 … G505, G54 … G599).
Please observe the information provided by the machine manufacturer.
4. You can edit the values directly in the table.
Setting up the machine
4.8 Zero offsets
Turning
120 Operating Manual, 06/2019, A5E44903486B AB
