Machined surface Face C

Machining type Roughing (∇)

Machining position Single position

X0 0 abs

Y0 0 abs

Z0 0 abs

W 23

L 23

R 8

α0 4 Degrees

Z1 5 inc

DXY 50 %

DZ 3

UXY 0.1 mm

UZ 0

Insertion Vertical

FZ 0.015 mm/tooth

4. Press the "Accept" softkey.

9.19.3 Results/simulation test

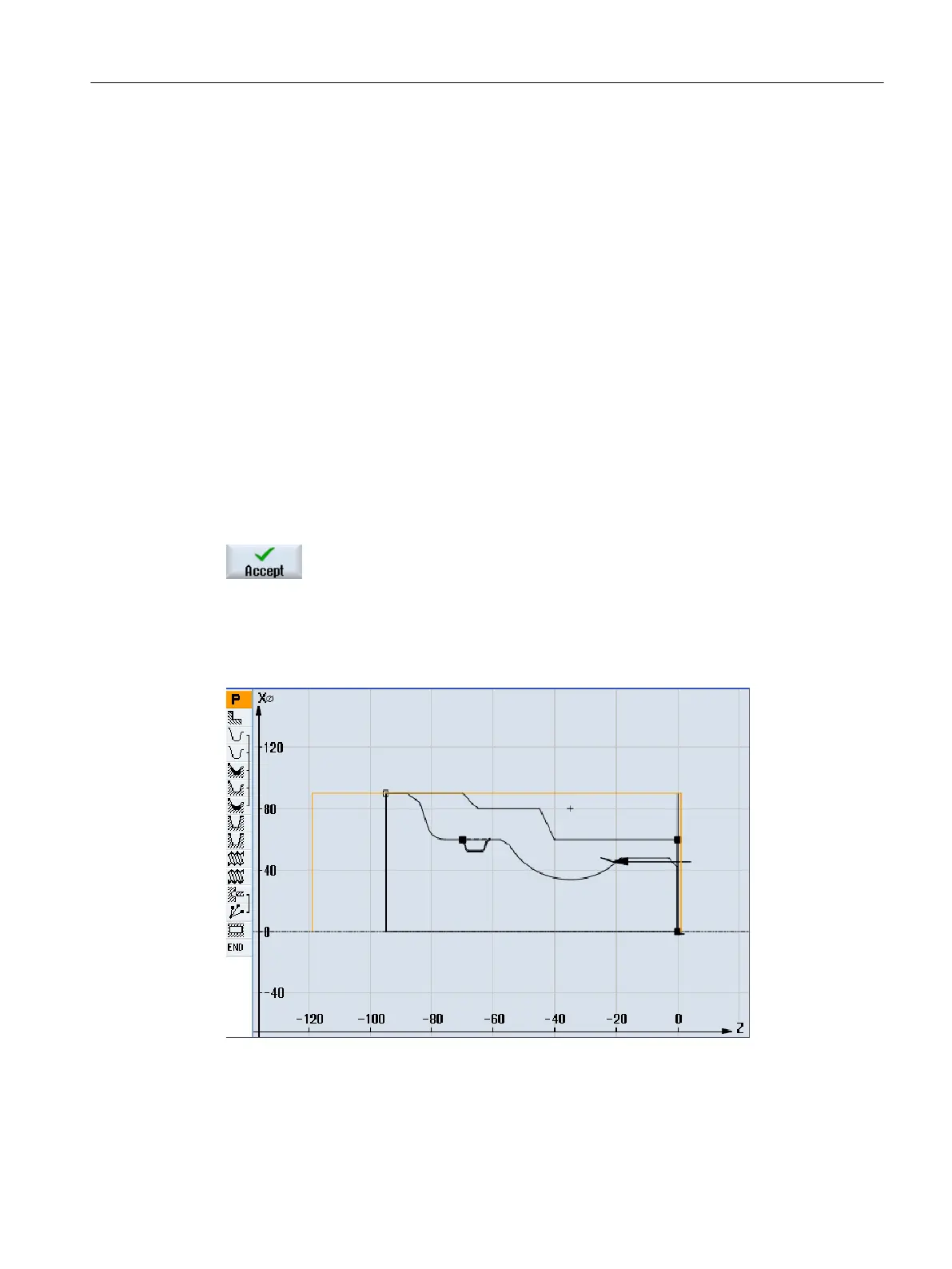

Figure 9-10 Programming graphics

Creating a ShopTurn program

9.19 Example: Standard machining

Turning

Operating Manual, 06/2019, A5E44903486B AB 339
