Program view in the G code





1) Machining program in the leading channel

2) Machining program in the following channel

3) 2-channel stock removal cycles, which contain implicit WAIT marks, are identified by a preceding clock symbol.

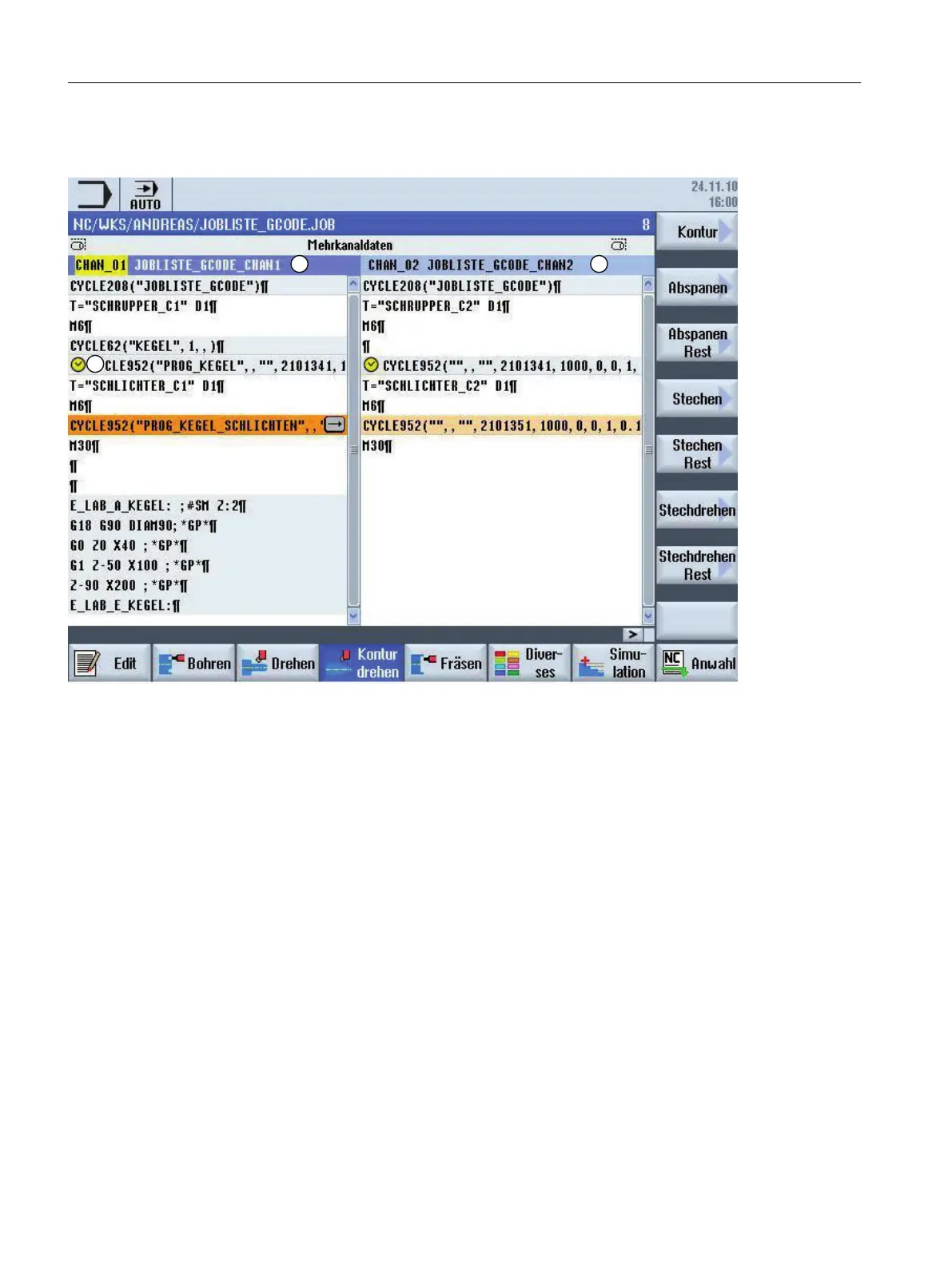

Figure 11-4 View of a 2-channel stock removal program in G code

11.2.13.2 Stock removal

Calling up the cycle

Precondition

● "programSYNC" option

Multi-channel machining

11.2 Multi-channel support

Turning
