ShopTurn machining schedule











1) Machining program in the leading channel

2) Machining program in the following channel

3) Contour and machining steps in the leading channel have a bracket symbol

4) 2-channel steps; implicit WAIT marks are identified using a clock symbol.

5) The contour is only defined in the leading channel; this is the reason that there is no bracket here.

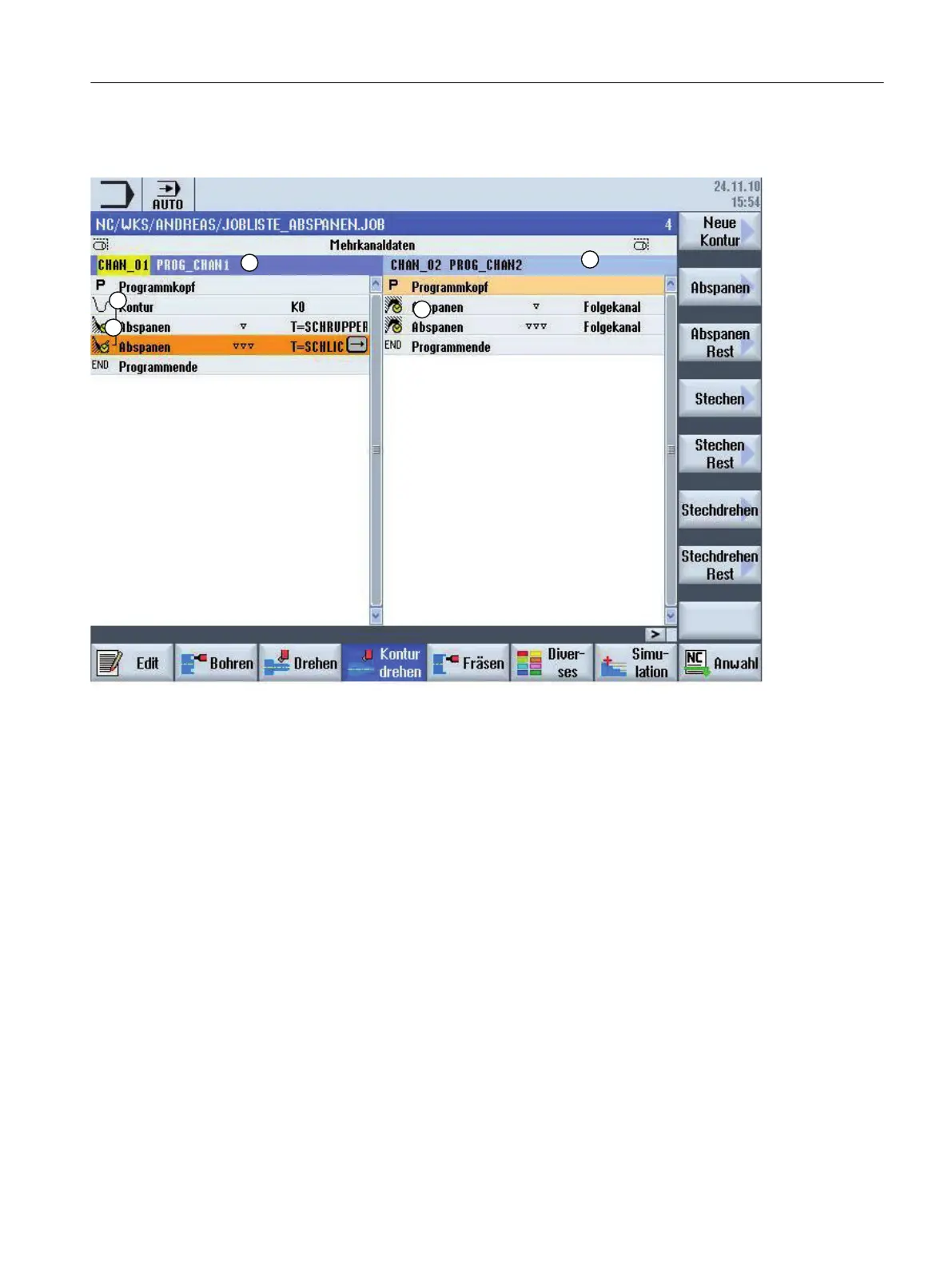

Figure 11-3 View of a 2-channel stock removal program in ShopTurn

Multi-channel machining

11.2 Multi-channel support

Turning
