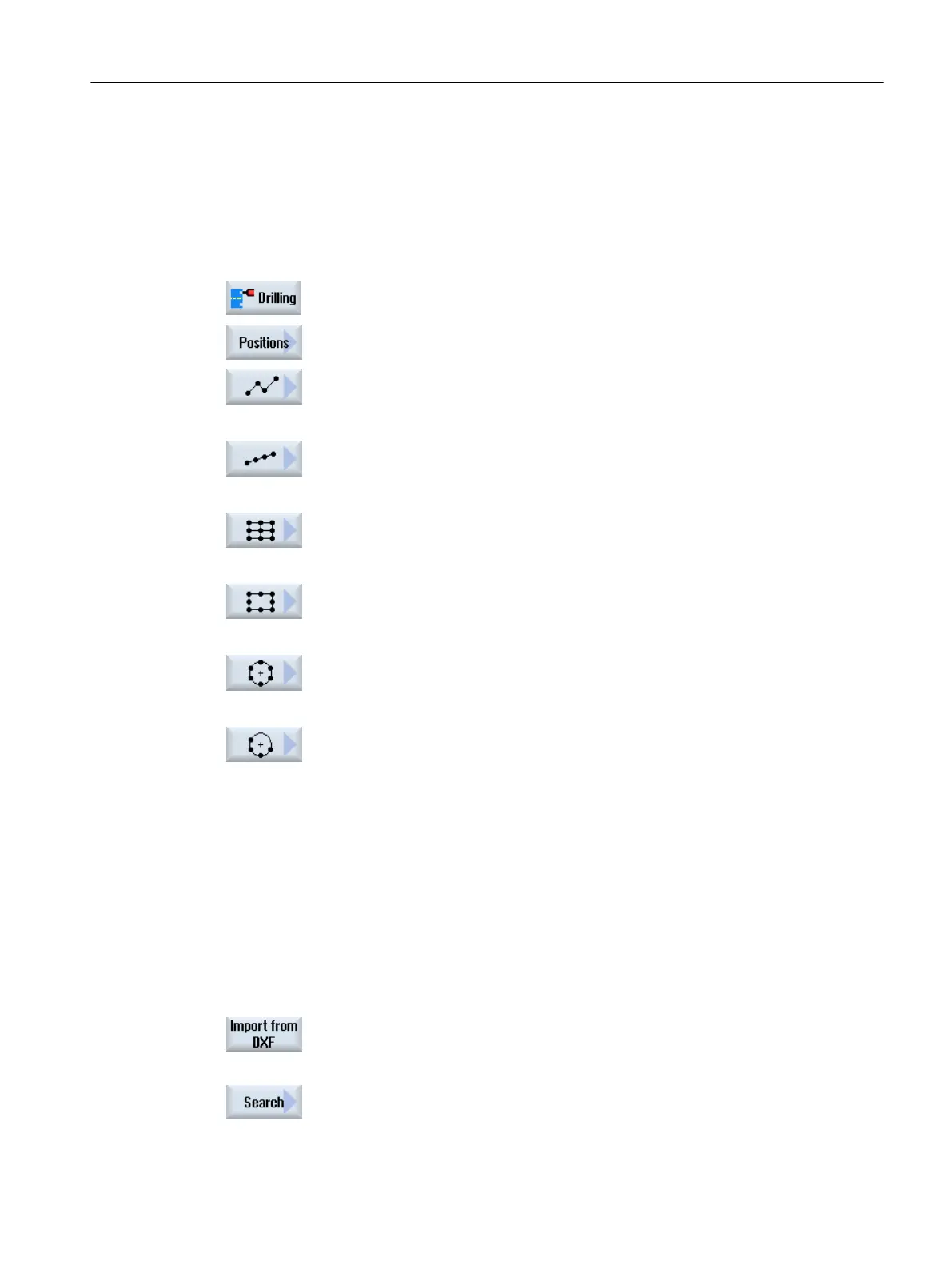

6.11.3.7 Transferring the drilling positions
Calling the cycles
1. The part program or ShopTurn program to be edited has been created
and you are in the editor.
2. Press the "Drilling" softkey.
3. Press the "Positions" softkey.
4. Press the "Arbitary positions" softkey.
The "Positions" input window opens.
- OR -
Press the "Line" softkey.
The "Position Row" input window opens.
- OR -
Press the "Grid" softkey.
The "Position Grid" input window opens.
- OR
Press the "Frame" softkey.
The "Position Frame" input window opens.
- OR -
Press the "Circle" softkey.
The "Position Circle" input window opens.
- OR -
Press the "Partial circle" softkey.
The "Position Partial Circle" input window opens.
Selecting the drilling positions
Requirement
You have selected a position pattern.
Procedure
Opening a DXF file
1. Press the "Import from DXF" softkey.
2. Position the cursor on the desired DXF file in the storage directory.
You can use the search function to search directly for a DXF file in com‐
prehensive folders and directories.
Machining the workpiece
6.11 Working with DXF files
Turning
Operating Manual, 06/2019, A5E44903486B AB 199
