Display Meaning
Actual feed value
If several axes traverse, is displayed for:
● "JOG" mode: Axis feed for the traversing axis
● "MDA" and "AUTO" mode: Programmed axis feed
Rapid traverse G0 is active
0.000 No feed is active
Override Display as a percentage

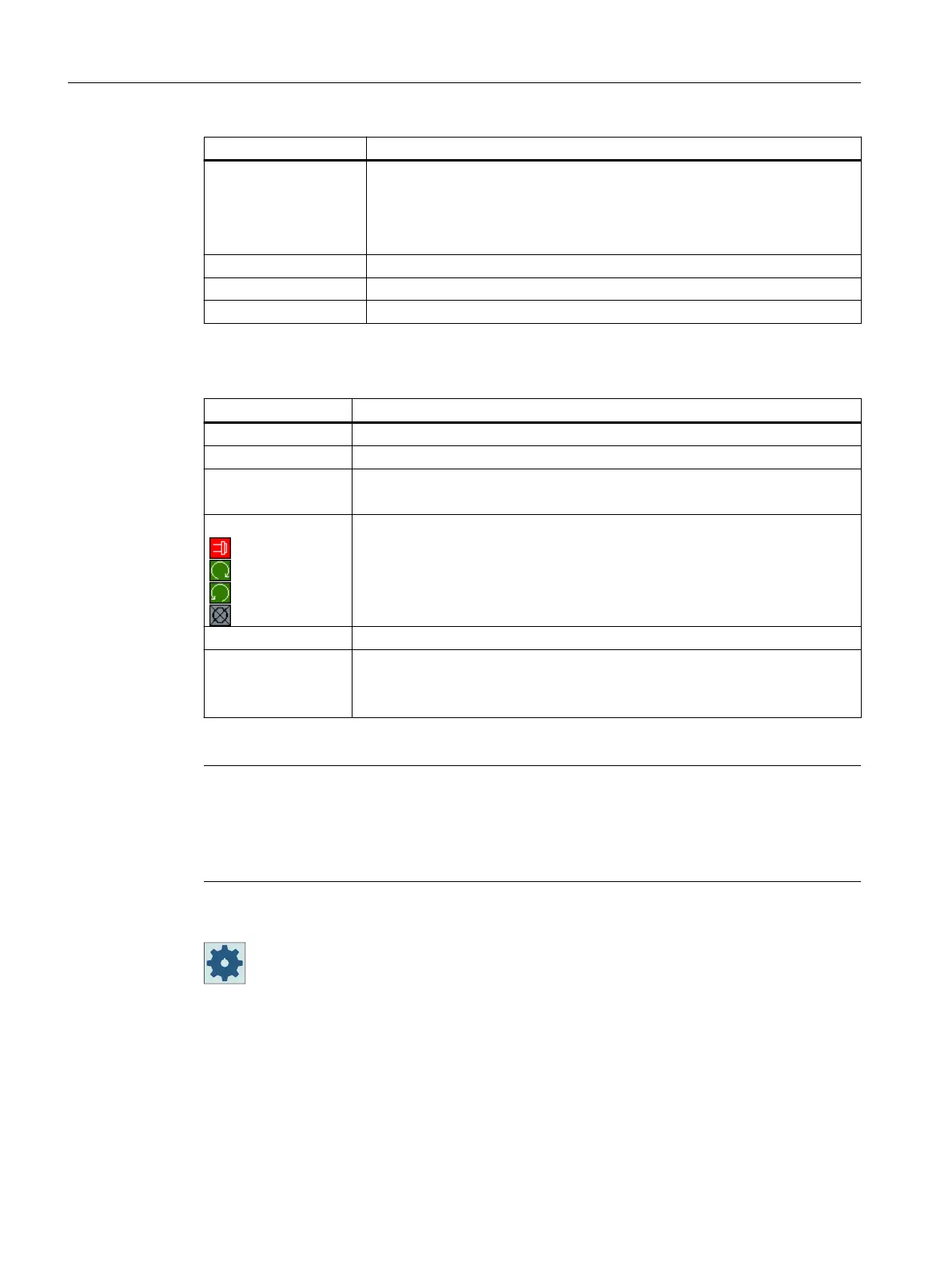

Spindle data
Display Meaning
S
S1 Spindle selection, identification with spindle number and main spindle
Speed Actual value (when spindle turns, display increases)
Setpoint (always displayed, also during positioning)
Symbol Spindle status
Spindle not enabled
Spindle is turning clockwise
Spindle is turning counterclockwise
Spindle is stationary
Override Display as a percentage
Spindle utilization
rate
Display between 0 and 100%
The upper limit value can be greater than 100%.
See machine manufacturer's specifications.
Note
Display of logical spindles
If the spindle converter is active, logical spindles are displayed in the workpiece coordinate
system. When switching over to the machine coordinate system, the physical spindles are
displayed.
Machine manufacturer
Please refer to the machine manufacturer's specifications.
2.4.5 Current block display
The window of the current block display shows the program blocks currently being executed.
Introduction
2.4 User interface
Turning
48 Operating Manual, 06/2019, A5E44903486B AB
