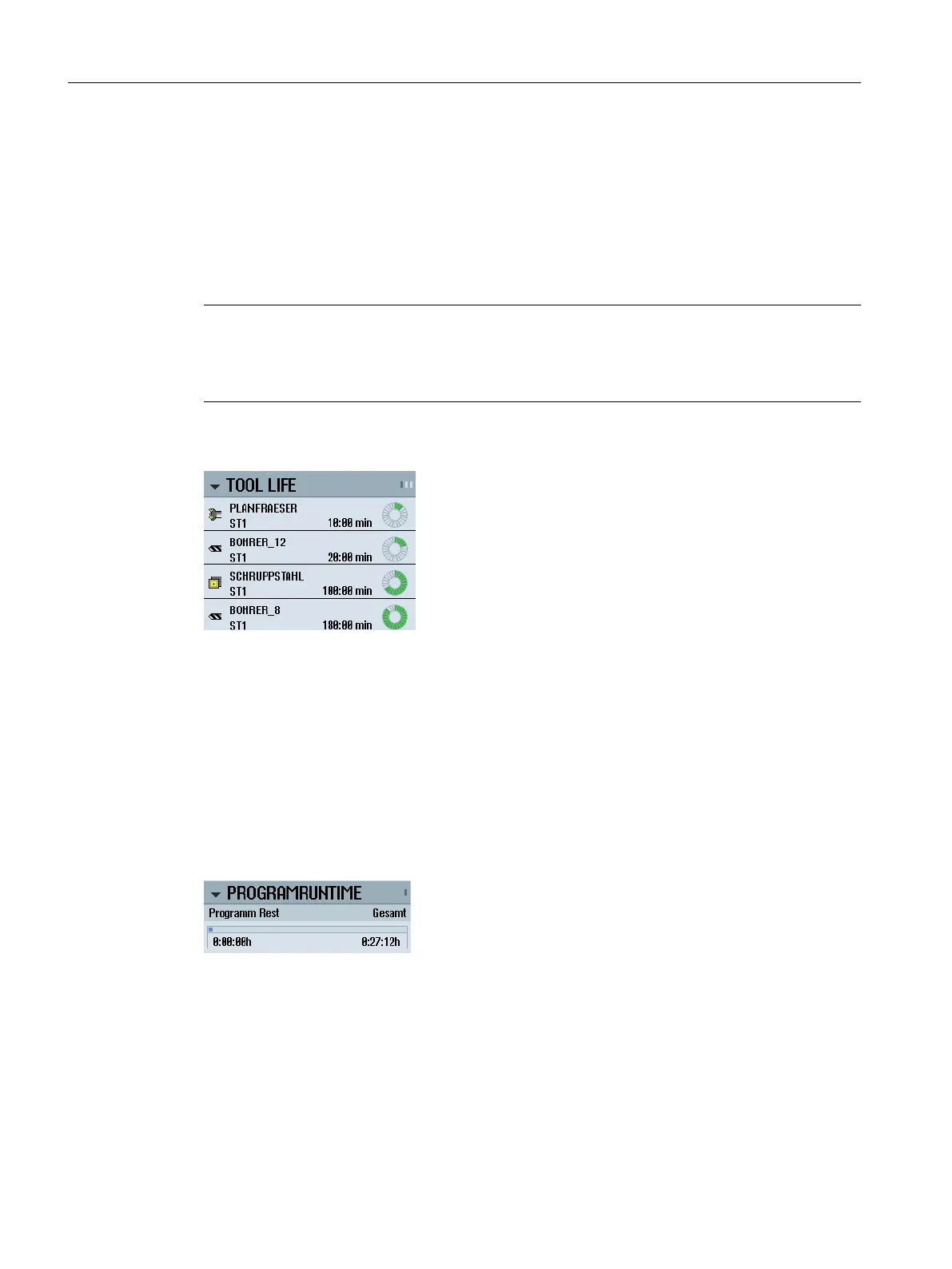

3.5.10 "Service life" widget
The widget displays the tool monitoring in relation to the following values:
Operating time of tool (standard time monitoring)
Finished workpieces (quantity monitoring)
Tool wear (wear monitoring)
Note
Multiple cutting edges
If a tool has multiple cutting edges, the values of the edge with the lowest residual service life,
quantity and wear is displayed.
It possible to alternate between views by scrolling horizontally.
3.5.11 "Program runtime" widget
The widget contains the following data:
Total runtime of the program
Time remaining to end of program
This data is estimated for the first program run.
Additionally, progress of the program is visualized in a bar chart as a percentage.
3.5.12 Widget "Camera 1" and "Camera 2"
You can create up to two cameras for tracking remote processes and monitoring difficult-to-
access areas.
Widgets "Camera 1" and "Camera 2" are used to display camera images. There is a dedicated
widget for each camera.
Multitouch operation with SINUMERIK Operate
3.5 Expansion with side screen
Turning
84 Operating Manual, 06/2019, A5E44903486B AB
