13.3 Tool types

A number of tool types are available when you create a new tool. The tool type determines

which geometry data is required and how it will be computed.

Tool types

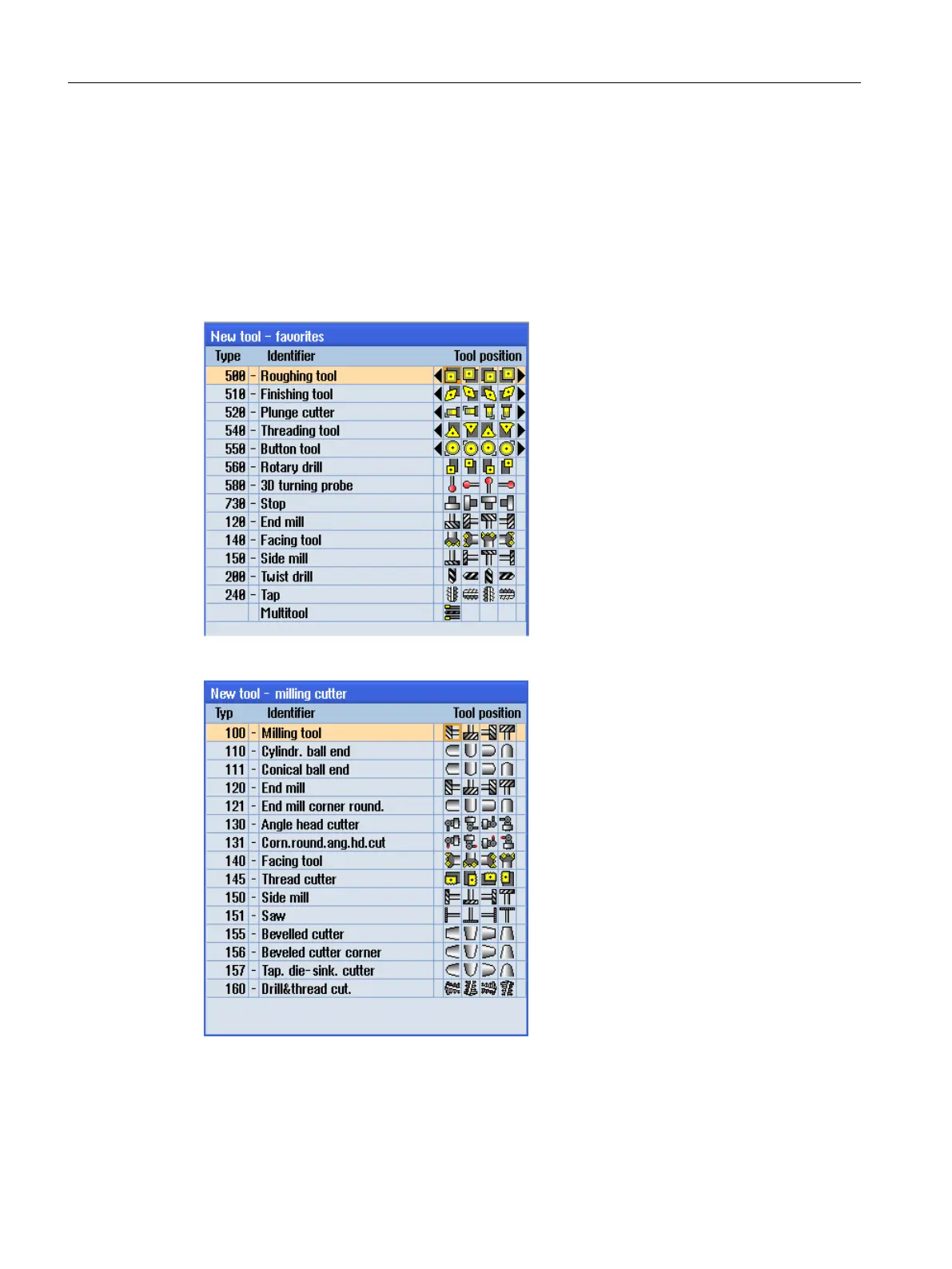

Figure 13-1 Example of Favorites list

Figure 13-2 Available tools in the "New Tool - Milling Cutter" window

Tool management

13.3 Tool types

Turning
