20.3 Machine control panel menu

You select keys from the machine control panel which are reproduced by the software by touch

operation of the relevant softkeys.

See Section "Controls on the machine control panel" for a description of the individual keys.

Note

PLC interface signals that are triggered via the softkeys of the machine control panel menus are

edge triggered.

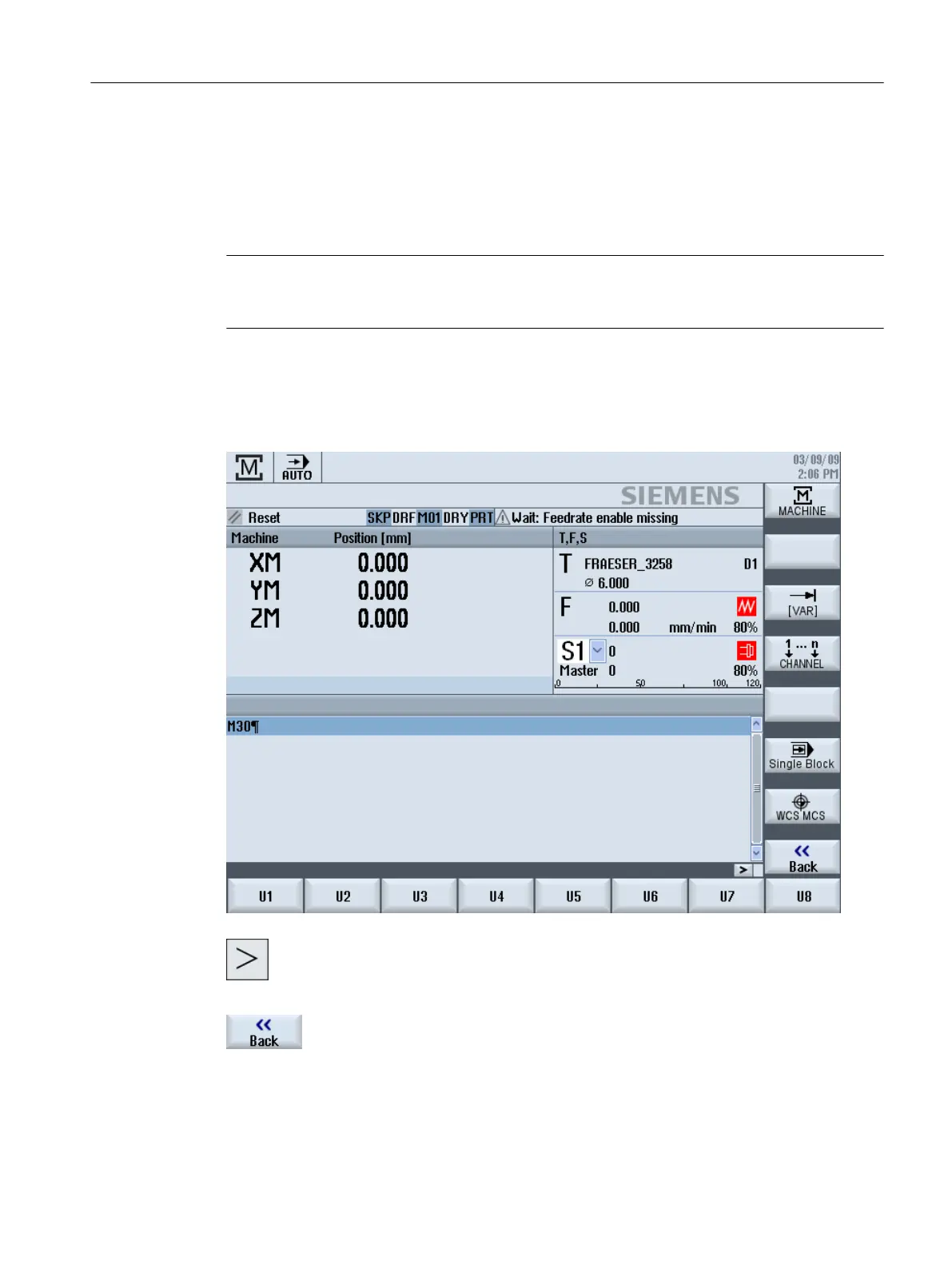

Showing and hiding

The user menu key "U" displays the CPF softkey bar (vertical softkey bar) and the user softkey

bar (horizontal softkey bar).

Press the menu forward key to extend the horizontal user softkey bar. There are

8 additional softkeys available.

You use the "Back" softkey to hide the menu bar again

HT 8 (840D sl only)

20.3 Machine control panel menu

Turning

Operating Manual, 06/2019, A5E44903486B AB 907
