Drilling a position pattern
You can drill a position pattern:
● First select the desired function (e.g. "Centering") via the softkey in "Drilling".
● Select the appropriate tool, enter the desired values in the parameter screen and press the
"Accept" softkey to confirm the technology block.
The input screen is closed and the line with the technology data is displayed in the main
screen.
● Press the "Positions" softkey and select the desired position pattern (e.g. any positions) via
softkey, enter the desired values in the parameter screen form press the "Accept" softkey.
The input screen is closed and the technology and positioning blocks are displayed in
brackets.
Note
You only have the option of creating a machining operation and a position pattern one after
the other.
Note
If you enter the positions first, only the drilling cycles for driven tools are offered after
creating the positioning block.
Approach and retraction
When machining the workpiece, you traverse from the current position to the machining start
point. After the machining process, the tool is returned along a direct path to the starting point.
16.6.1 Drilling with Manual Machine
Functions (cycles)

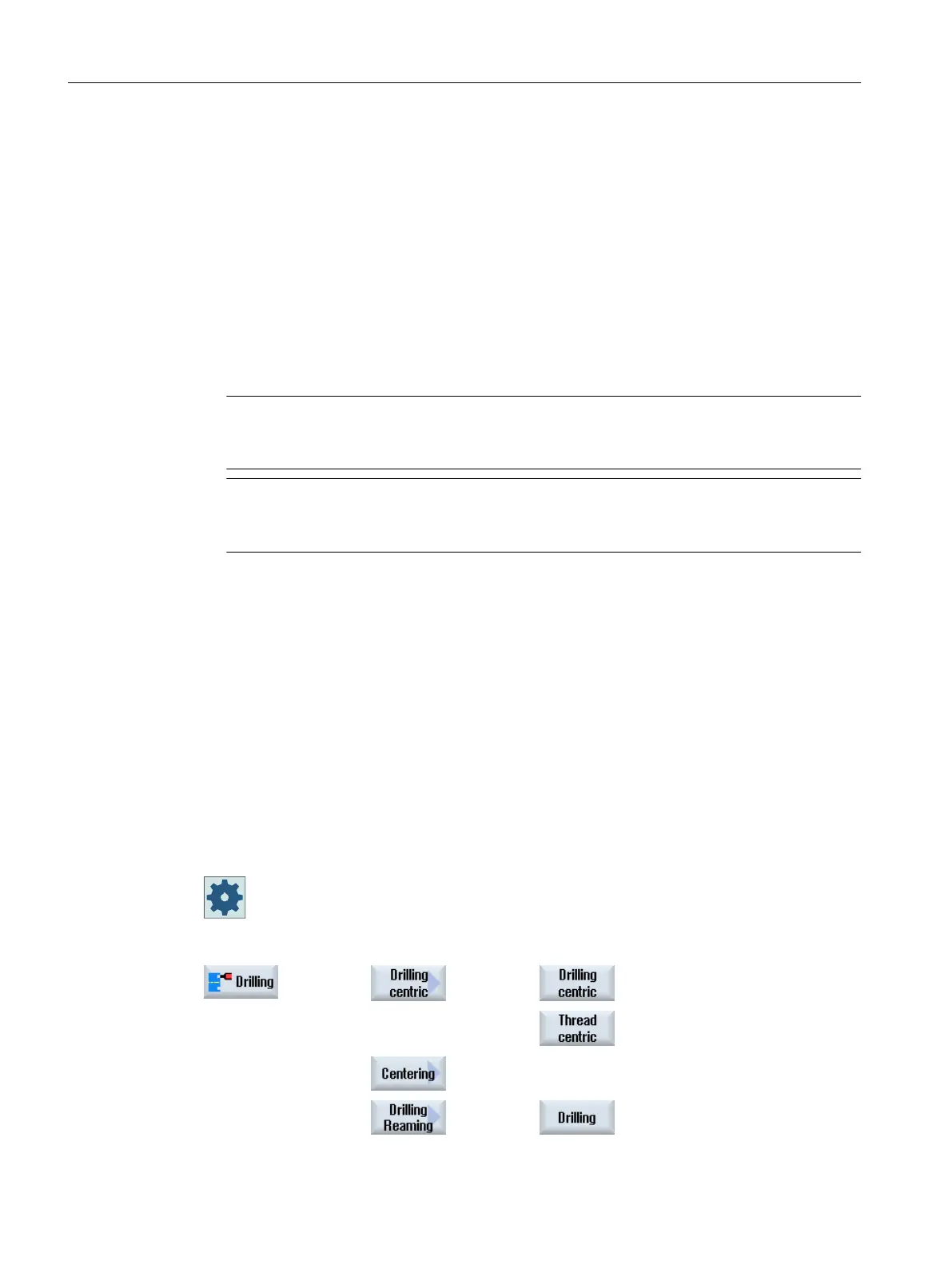

The same range of technological functions (cycles) is available as in automatic mode for drilling
on the face or peripheral surface of a workpiece:
Machine manufacturer
Please refer to the machine manufacturer's specifications.
⇒ ⇒
⇒
Working with Manual Machine
16.6 More complex machining
Turning
868 Operating Manual, 06/2019, A5E44903486B AB
