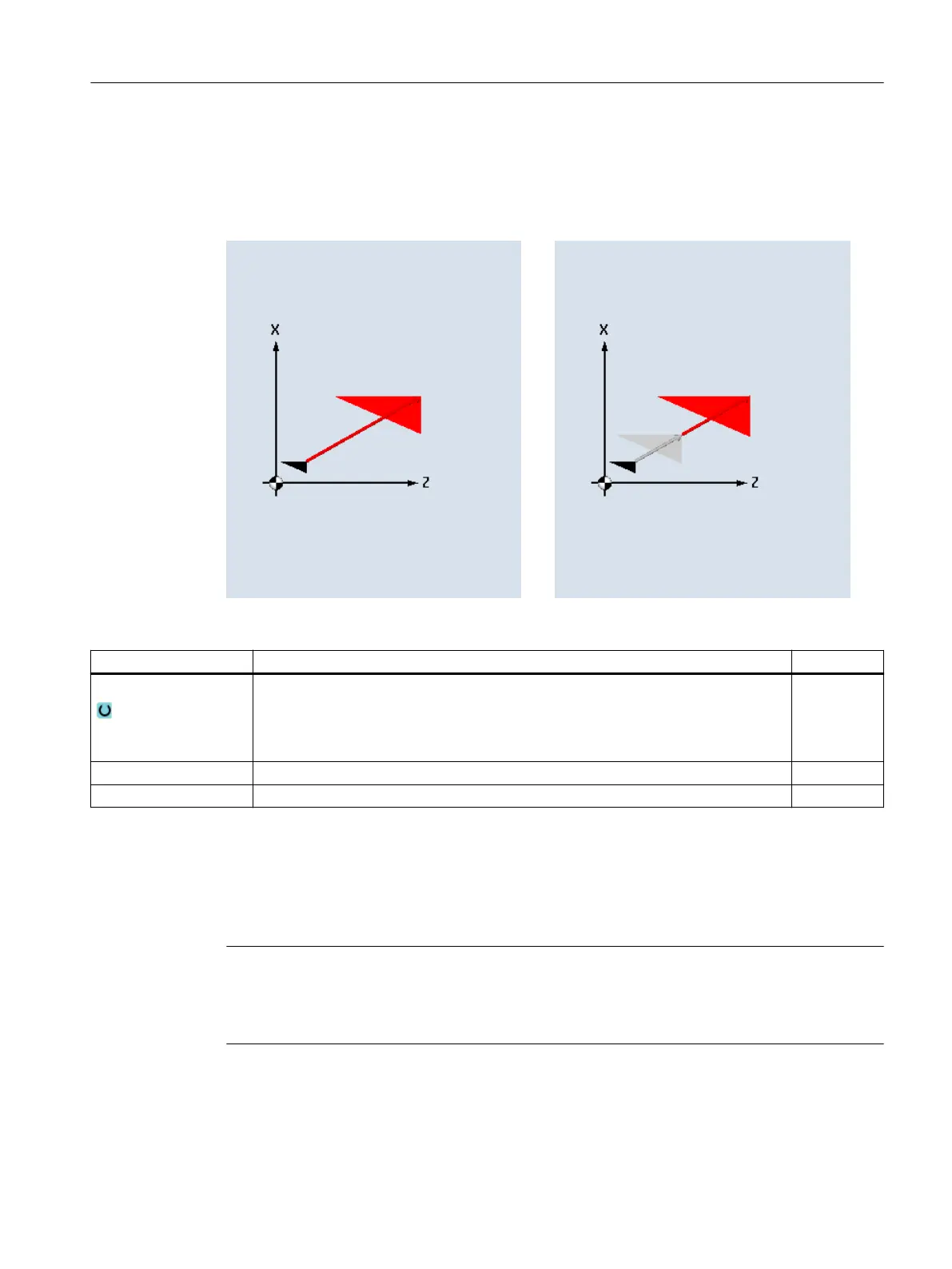

10.7.6 Scaling

You can specify a scale factor for the active machining plane as well as for the tool axis. The

programmed coordinates are then multiplied by this factor.

New scaling Additive scaling

Parameter Description Unit

Scaling

● New

New scaling

● Additive

Additive scaling

ZX Scale factor ZX

Y Scale factor Y

10.7.7 Mirroring

Furthermore, you can mirror all axes. Enter the axis to be mirrored in each case.

Note

Travel direction of the milling cutter

Note that with mirroring, the travel direction of the cutting tool (conventional/climb) is also

mirrored.

Programming technology functions (cycles)

10.7 Additional cycles and functions in ShopTurn

Turning

Operating Manual, 06/2019, A5E44903486B AB 635
