⑧ Dialog line to provide additional user notes
⑨ Operating window with program block display
⑩ Axis position display in the actual value window
⑪ Channel state and program control
⑫ Program name
2.4.2 Status display
The status display includes the most important information about the current machine status
and the status of the NCK. It also shows alarms as well as NC and PLC messages.
Depending on your operating area, the status display is made up of several lines:
● Large status display
The status display is made up of three lines in the "Machine" operating area.
● Small status display
In the "Parameter", "Program", "Program Manager", "Diagnosis" and "Start-up" operating
areas, the status display consists of the first line from the large display.
Status display of "Machine" operating area
First line

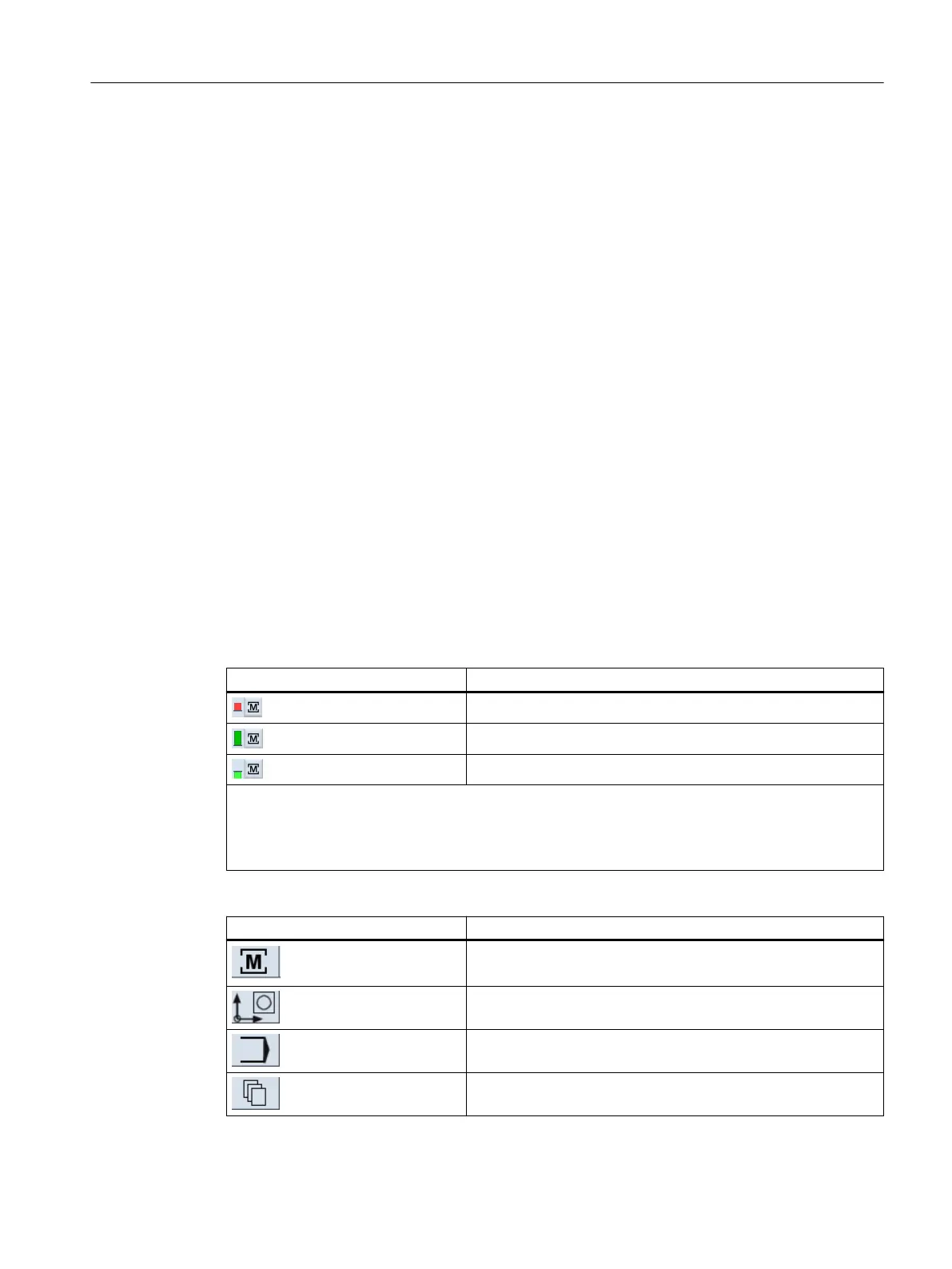

Ctrl-Energy - power display
Display Meaning
The machine is not productive.
The machine is productive and energy is being consumed.
The machine is feeding energy back into the supply system.
The power display must be switched on in the status line.
Note
Information about configuration is available in the following reference:
System Manual "Ctrl-Energy", SINUMERIK 840D sl / 828D
Active operating area
Display Meaning
"Machine" operating area
With touch operation, you can change the operating area here.
"Parameter" operating area
"Program" operating area
"Program manager" operating area
Introduction
2.4 User interface
Turning
Operating Manual, 06/2019, A5E44903486B AB 43
