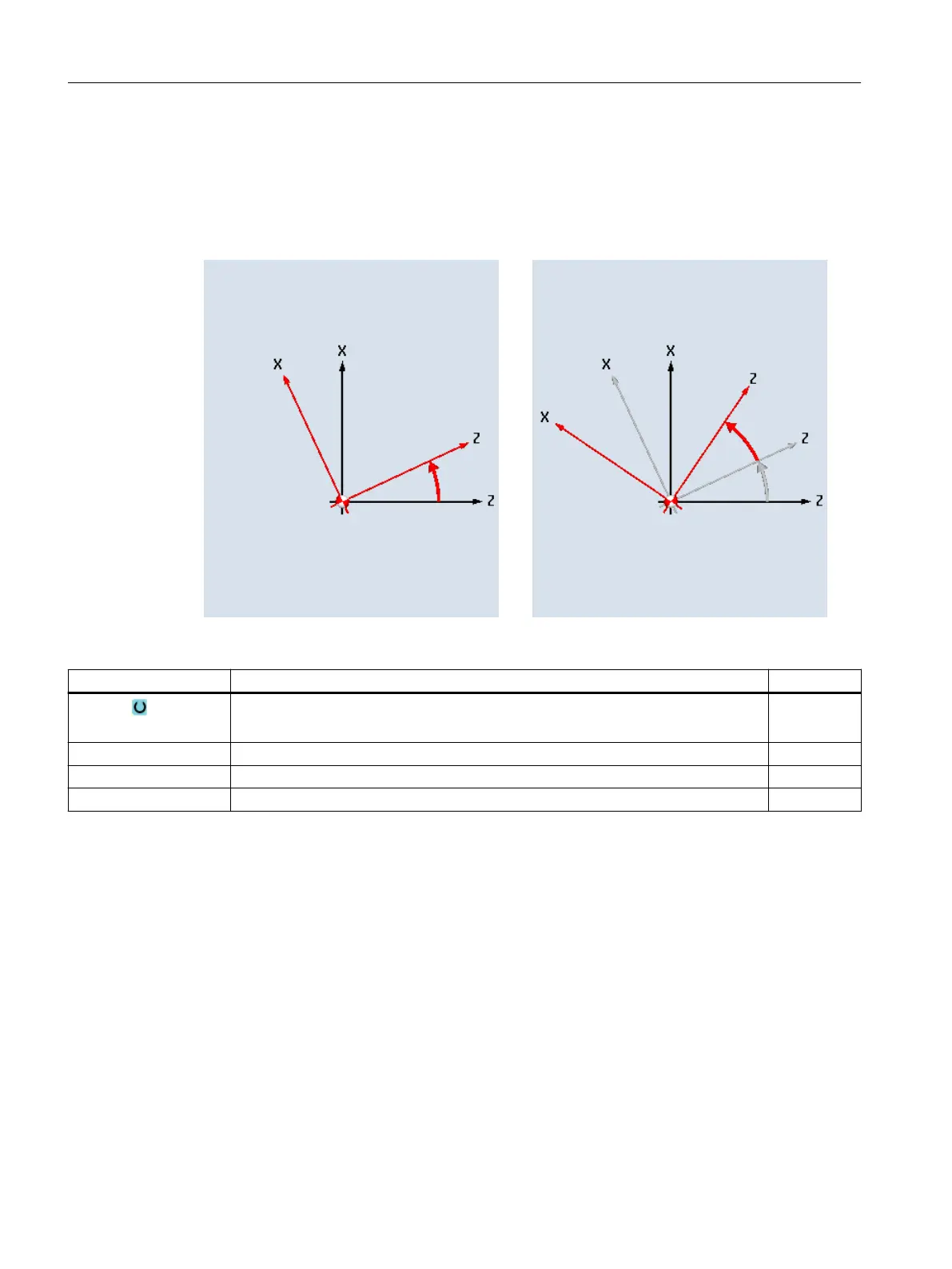

10.7.5 Rotation

You can rotate every axis through a specific angle. A positive angle corresponds to

counterclockwise rotation.

New rotation Additive rotation

Parameter Description Unit

Rotation

● New

● New rotation

Z Rotation around Z Degrees

X Rotation around X Degrees

Y Rotation around Y Degrees

Programming technology functions (cycles)

10.7 Additional cycles and functions in ShopTurn

Turning

634 Operating Manual, 06/2019, A5E44903486B AB
