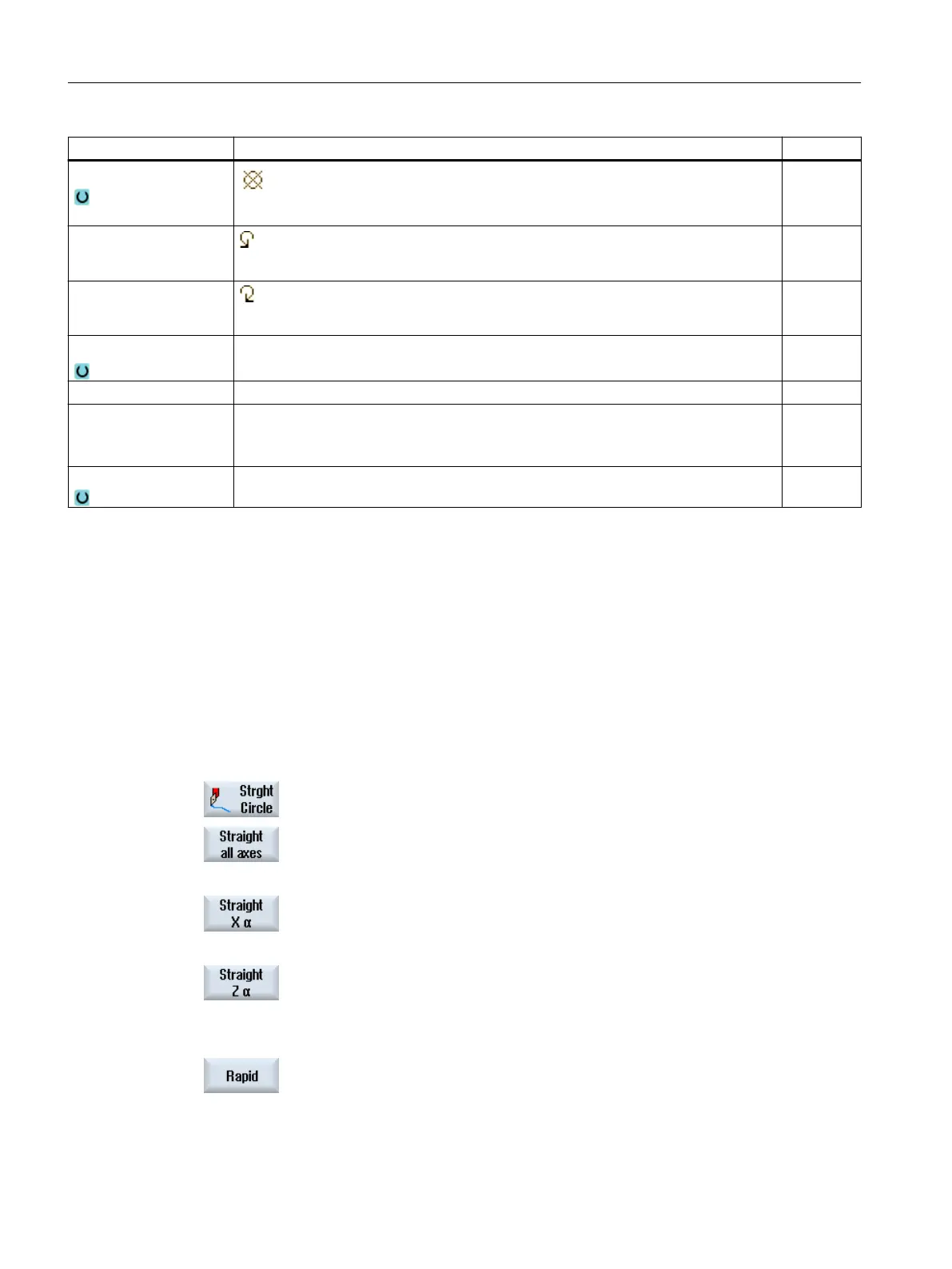

Parameter Description Unit
Spindle M function
Spindle off: Spindle is stopped
CCW rotation: Spindle rotates counterclockwise
CW rotation: Spindle rotates clockwise
Gear stage Specification of the gear stage (auto, I - V)
α1 Rotation of the coordinate system. Degrees
Other M function Input of machine functions
Refer to the machine manufacturer's table for the correlation between the meaning
and number of the function.
Machining plane Selection of the machining plane (G17(XY), G18 (ZX), G19 (YZ))
16.5.3 Straight and circular machining
16.5.3.1 Straight turning
Use this function for simple, straight machining (e.g. face or longitudinal turning).
Procedure
1. "Manual Machine" is active.
2. Press the "Straight circle" softkey.
3. Select the desired straight machining and press the "All axes" softkey
- OR -
Press the softkey "Straight X α"
- OR -
Press the softkey "Straight Z α"
4. Specify the desired value for the feedrate F.
- OR -
Press the "Rapid traverse" softkey.
The rapid traverse is displayed in field "F".
5. Enter the target position and, if required, the angle (α) for the axis or axes
to be traversed.
Working with Manual Machine
16.5 Simple workpiece machining
Turning
864 Operating Manual, 06/2019, A5E44903486B AB
