18.2 Measure tool

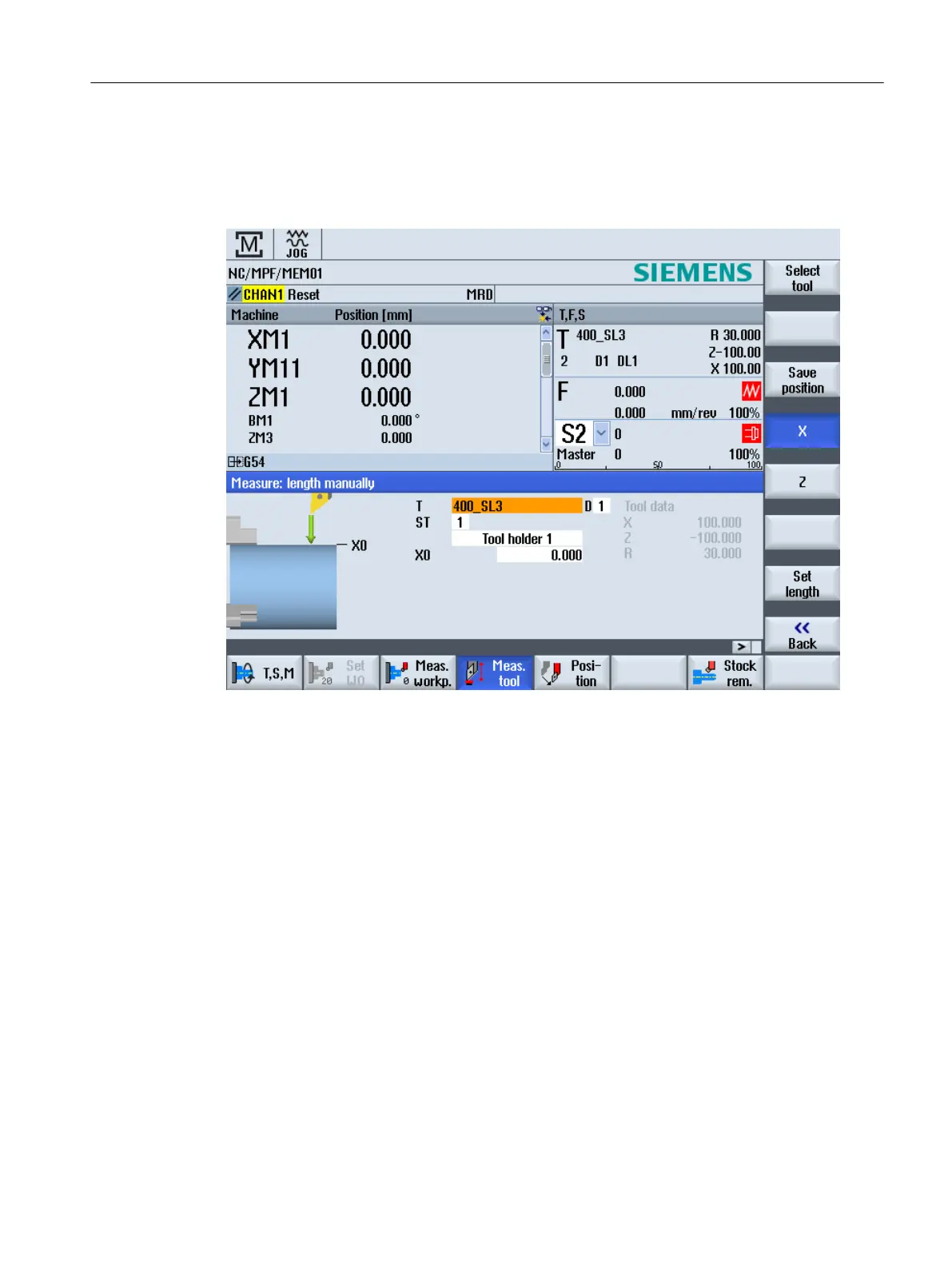

Selection options "Toolholder 1" and "Toolholder 2" are available for scratching when

measuring a tool. This is how you set the tool holder in which the tool to be measured is located.

Working with two tool carriers

18.2 Measure tool

Turning

Operating Manual, 06/2019, A5E44903486B AB 891
