Parameter Description
DZ Maximum depth infeed – (only for ∇ and ∇∇∇) mm
UXY Plane finishing allowance for the length (L) and width (W) of the rectangular spigot.
Smaller rectangular spigot dimensions are obtained by calling the cycle again and pro‐
gramming it with a lower finishing allowance.
- (only for ∇ and ∇∇∇)
mm
UZ Depth finishing allowance (tool axis) - (only for ∇ and ∇∇∇) mm
FS Chamfer width for chamfering - (for chamfering only) mm
ZFS Insertion depth of tool tip (abs and inc) - (for chamfering only)
(ZFS for machining surface, face C/Y or XFS for peripheral surface C/Y)
mm
* Unit of feedrate as programmed before the cycle call
Hidden parameters
The following parameters are hidden. They are pre-assigned fixed values or values that can be
adjusted using setting data.
Parameter Description Value Can be set in SD
PL (only for G code) Machining plane Defined in MD
52005
SC (only for G
code)
Safety clearance 1 mm x
Machining
position
Mill circular spigot at the programmed position (X0, Y0, Z0). Single posi‐
tion
Machine manufacturer
Please refer to the machine manufacturer's specifications.
10.4.6 Multi-edge (CYCLE79)
Function
You can mill a multi-edge with any number of edges with the "Multi-edge" cycle.

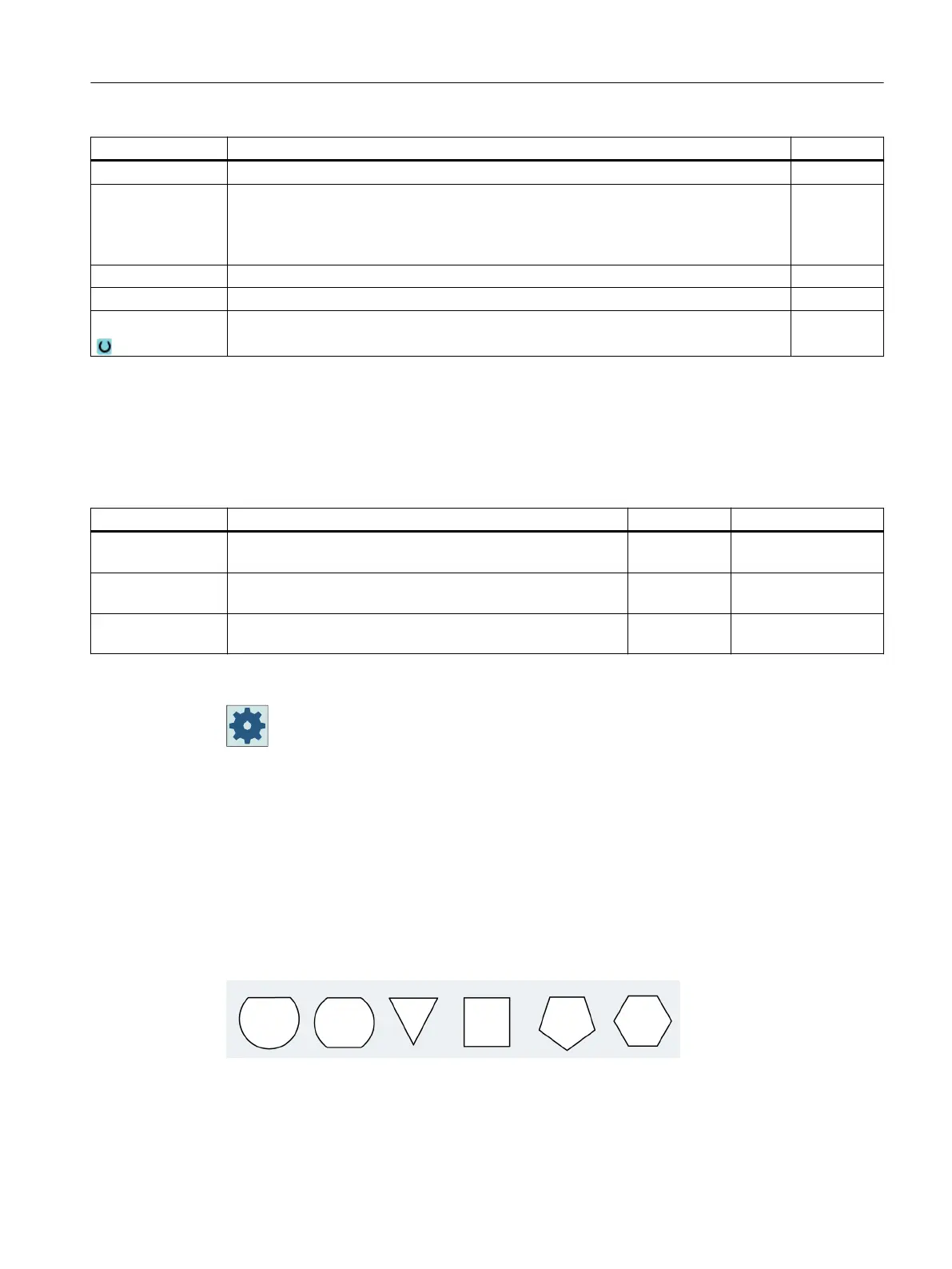

You can select from the following shapes with or without a corner radius or chamfer:
Programming technology functions (cycles)
10.4 Milling
Turning
Operating Manual, 06/2019, A5E44903486B AB 519
