5.3 Traversing axes
You can traverse the axes in manual mode via the Increment or Axis keys or handwheels.
During a traverse initiated from the keyboard, the selected axis moves at the programmed
setup feedrate. During an incremental traverse, the selected axis traverses a specified
increment.
Set the default feedrate
Specify the feedrate to be used for axis traversal in the set-up, in the "Settings for Manual
Operation" window.
5.3.1 Traverse axes by a defined increment
You can traverse the axes in manual mode via the Increment and Axis keys or handwheels.
Procedure

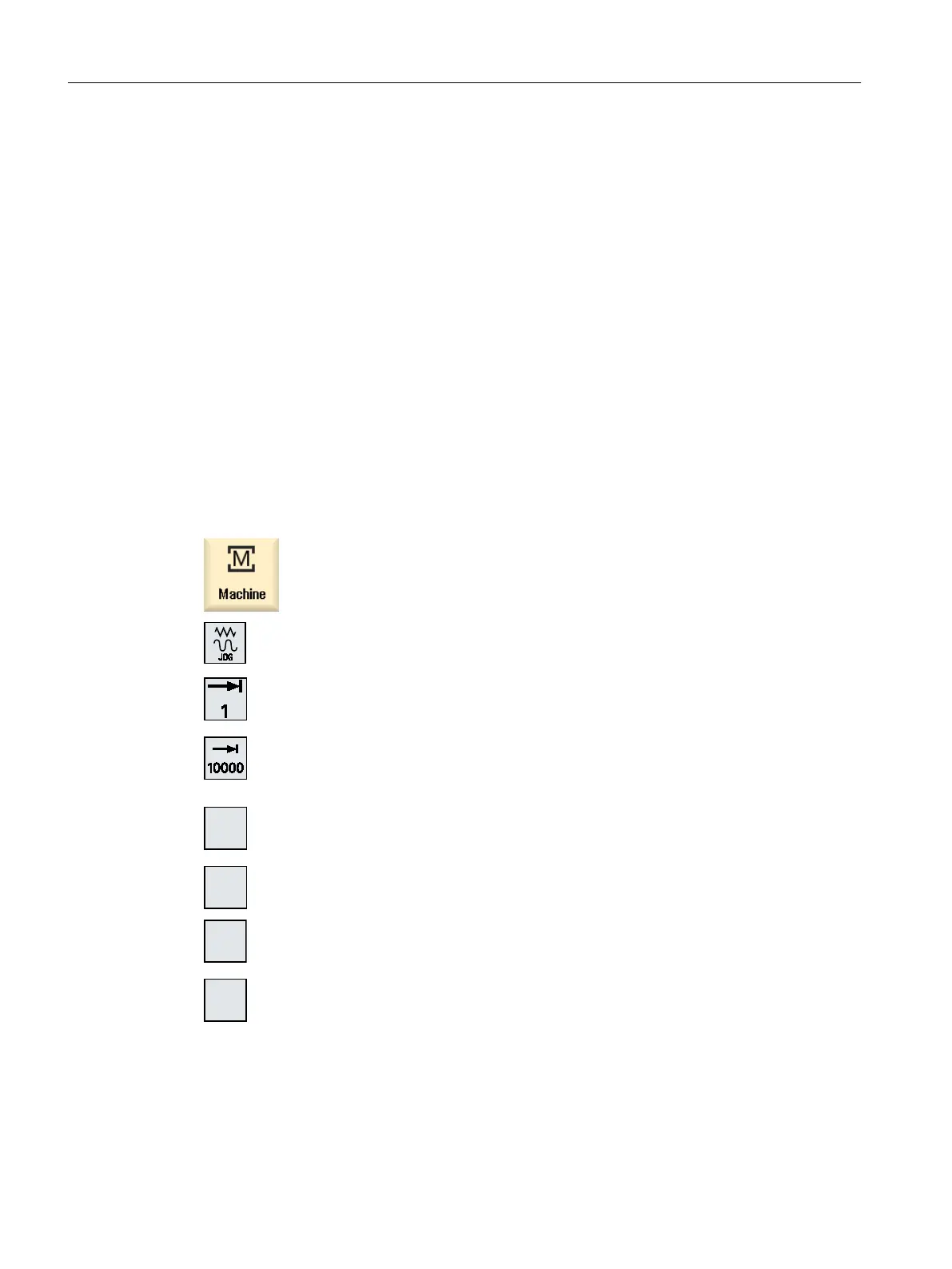

1. Select the "Machine" operating area.
2. Press the <JOG> key.
3. Press keys 1, 10, etc. up to 10000 in order to move the axis in a defined
increment.
The numbers on the keys indicate the traverse path in micrometers or
microinches.
Example: Press the "100" button for a desired increment of 100 μm (= 0.1
mm).
4. Select the axis to be traversed.
5. Press the <+> or <-> key.
Each time you press the key the selected axis is traversed by the defined
increment.
Feedrate and rapid traverse override switches can be operative.
Working in manual mode
5.3 Traversing axes
Turning
142 Operating Manual, 06/2019, A5E44903486B AB
