3.6.2 Screen layout
The standard supply of a SINUMERIK Operate Display Manager offers the option of choosing
between 3-display areas and 4-display areas.



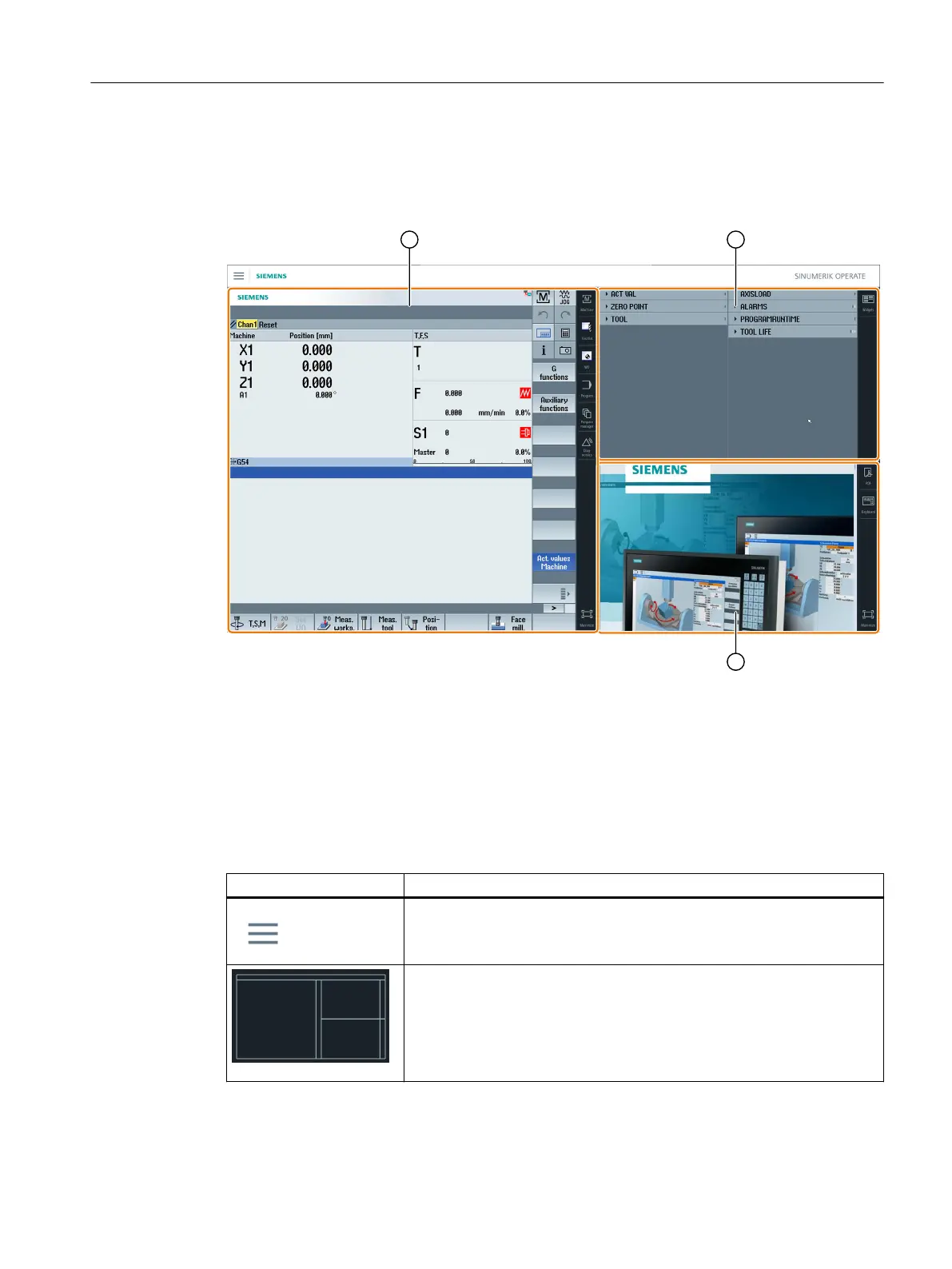

① SINUMERIK Operate with navigation bar for switchover of the operating area
② Display area for standard widgets
③ Display area for applications (e.g. PDF)
3.6.3 Operator controls
The Display Manager is activated.
Operator control Function
Menu
Tap on the menu to select the desired arrangement of the display areas.
3-display areas
● SINUMERIK Operate (with function block)
● Widget area
● Applications area (PDF, virtual keyboard)
Multitouch operation with SINUMERIK Operate
