2.4 User interface

2.4.1 Screen layout

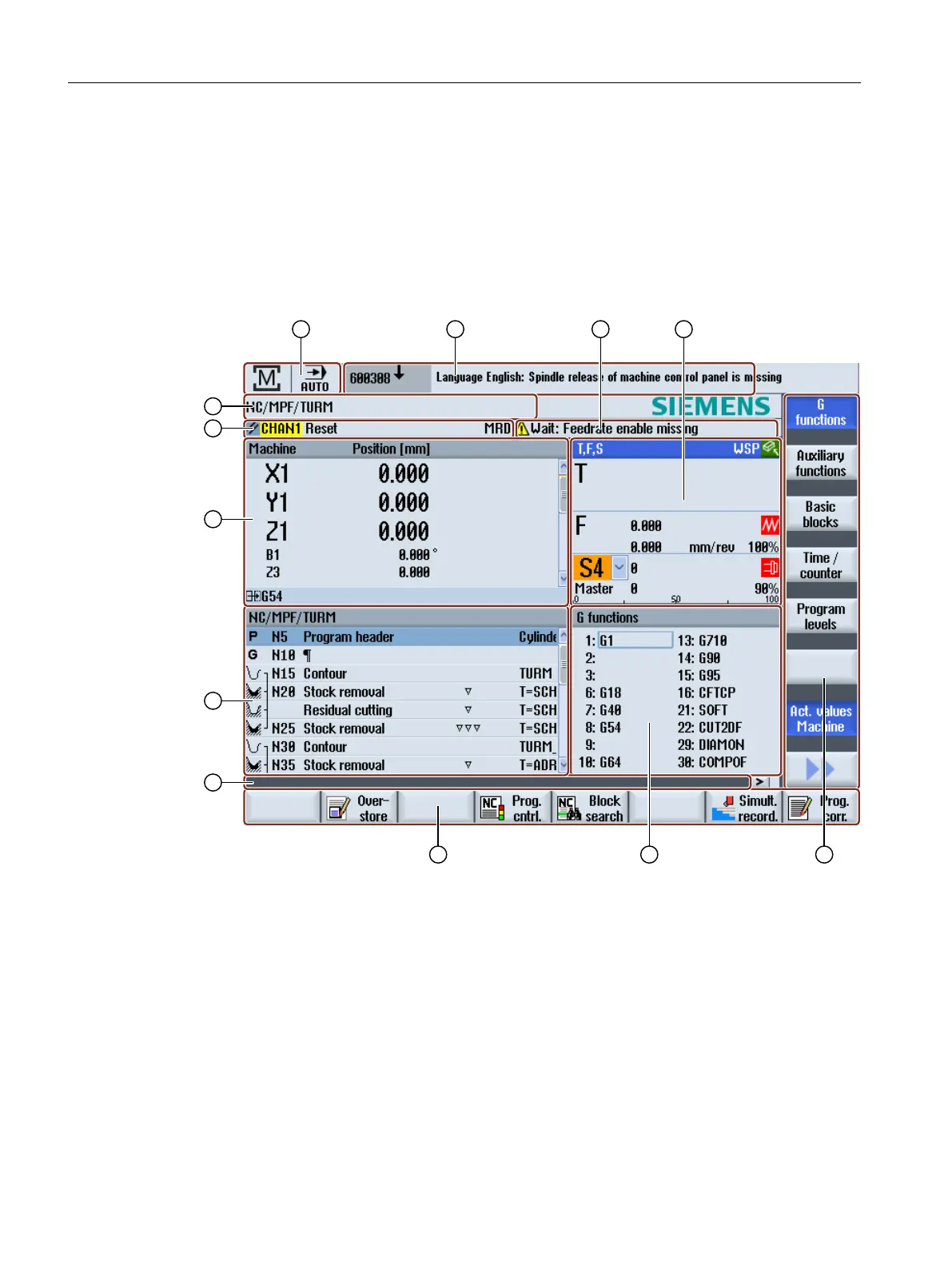

Overview















① Active operating area and mode

② Alarm/message line

③ Channel operational messages

④ Display for

● Active tool T

● Current feedrate F

● Active spindle with current state (S)

● Spindle utilization rate in percent

⑤ Vertical softkey bar

⑥ Display active G functions, all G functions, H functions and input window for different functions

(e.g. skip blocks, program control)

⑦ Horizontal softkey bar

Introduction
