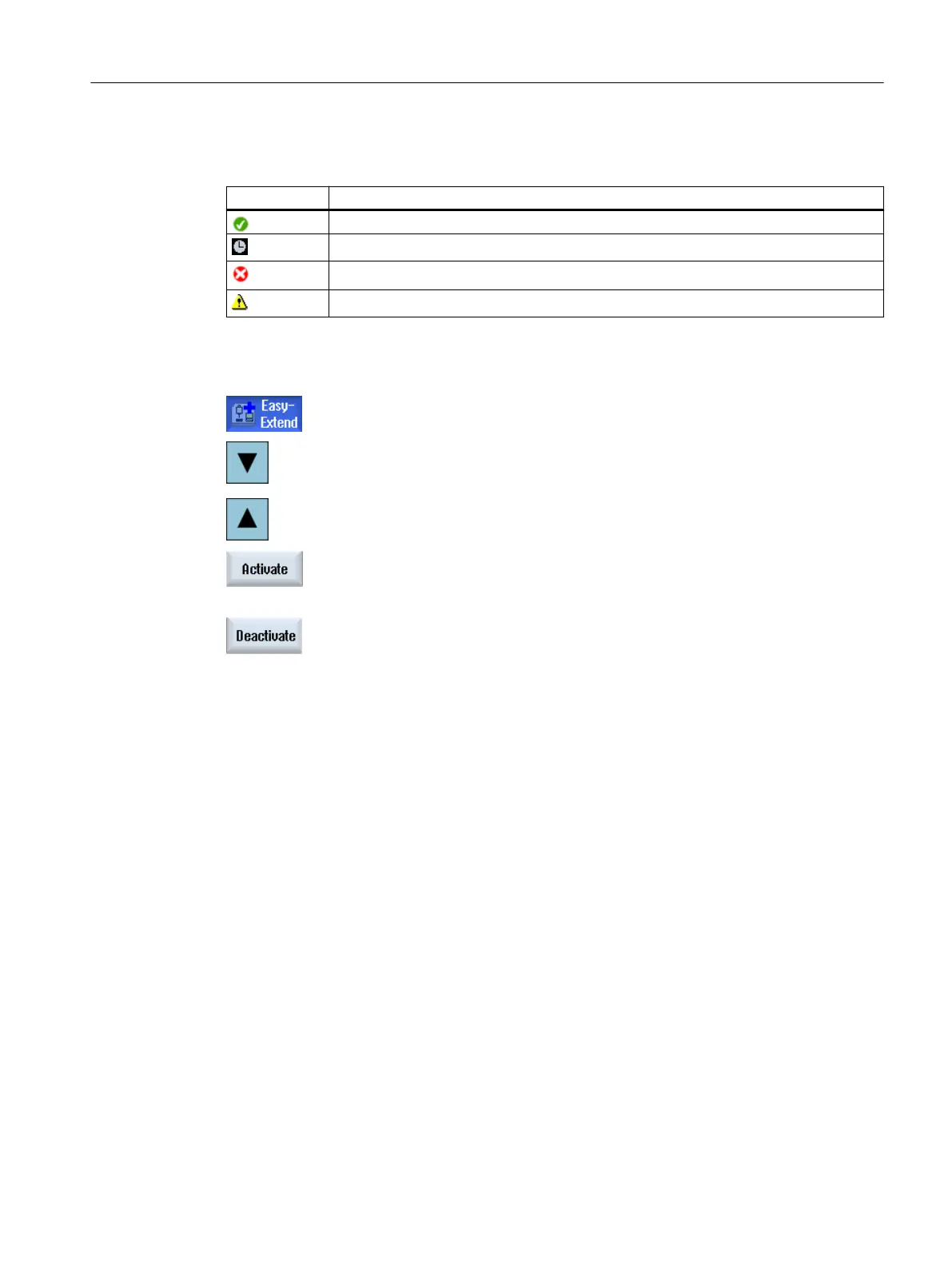

22.3 Activating and deactivating a device

Status Meaning

Device activated

System waiting for PLC checkback signal

Device faulty

Interface error in the communication module

Procedure

1. Easy Extend is opened.

2 You can select the desired device in the list with the <Cursor down> or

<Cursor up> keys.

3. Position the cursor on the device option for which the function has been

unlocked and press the "Activate" softkey.

The device is marked as activated and can now be used.

4. Select the desired activated device and press the "Deactivate" softkey to

switch the device off again.

Easy Extend

22.3 Activating and deactivating a device

Turning

Operating Manual, 06/2019, A5E44903486B AB 925
