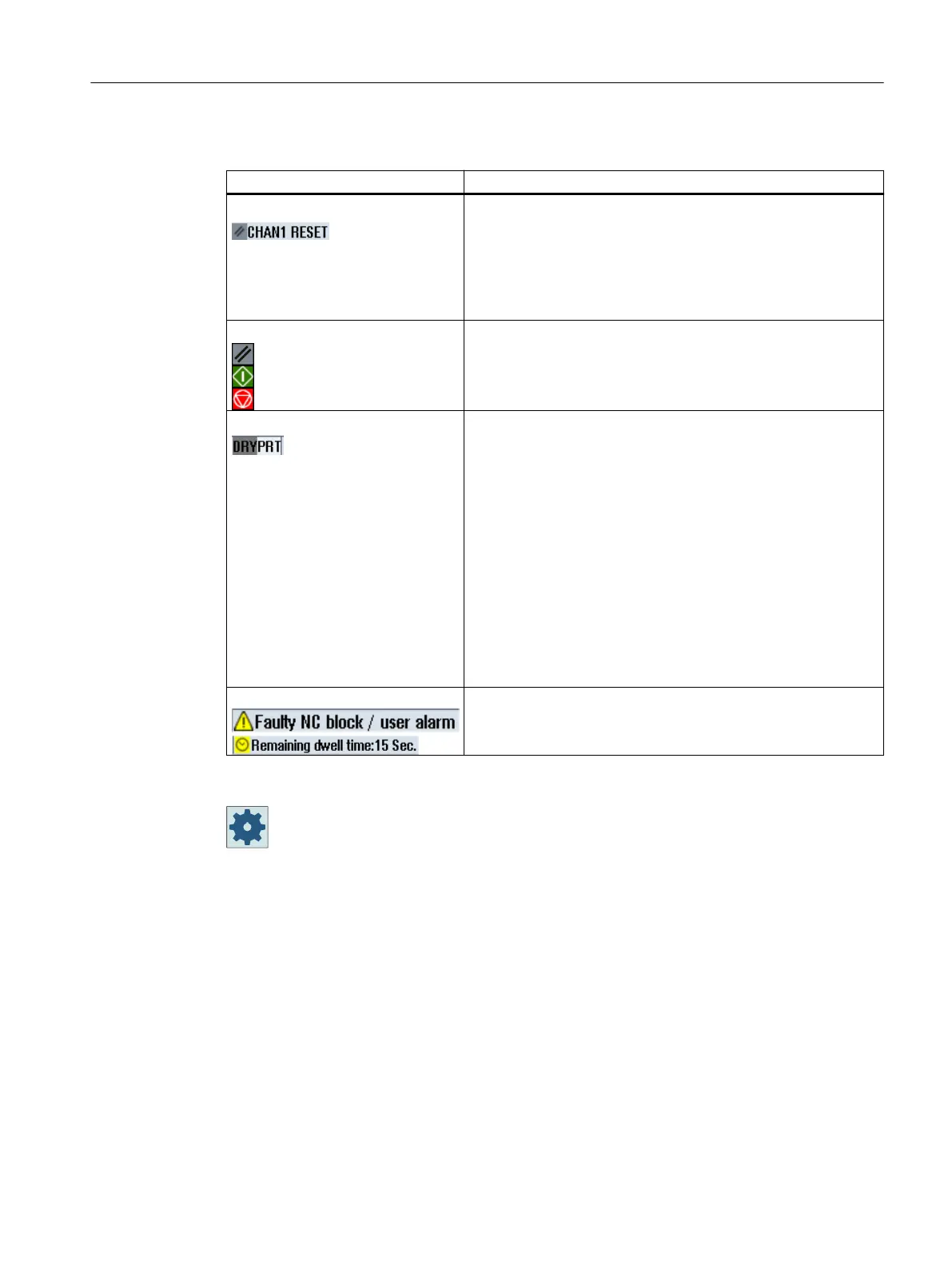

Third line
Display Meaning
Channel status display.
If the machine has several channels, then the channel name is
also displayed.
If there is only one channel, then only "Reset" is displayed as
channel status.
With touch operation, you can change the channel here.
Channel status display:
The program was canceled with "Reset".
The program is executed.
The program was interrupted with "Stop".
Display of active program controls:
PRT no axis motion
DRY dry run feedrate
RG0: reduced rapid traverse
M01: programmed stop 1
M101: programmed stop 2 (the designation is variable)
SB1: Single block, coarse (program stops only after blocks that
perform a machine function)
SB2: Calculation block (program stops after each block)
SB3: Single block, fine (program also only stops after blocks
which perform a machine function in cycles)
CST: configured stop (program stops at stop-relevant locations,
which you defined before the program starts)
Channel operational messages:
Stop: An operator action is usually required.
Wait: No operator action is required.
The machine manufacturer settings determine which program controls are displayed.
Machine manufacturer
Please observe the information provided by the machine manufacturer.
2.4.3 Actual value window
The actual values of the axes and their positions are displayed.
Work/Machine
The displayed coordinates are based on either the machine coordinate system or the
workpiece coordinate system. The machine coordinate system (Machine), in contrast to the
workpiece coordinate system (Work), does not take any work offsets into consideration.
You can use the "Machine actual values" softkey to toggle between the machine coordinate
system and the workpiece coordinate system.
Introduction
2.4 User interface
Turning
Operating Manual, 06/2019, A5E44903486B AB 45
