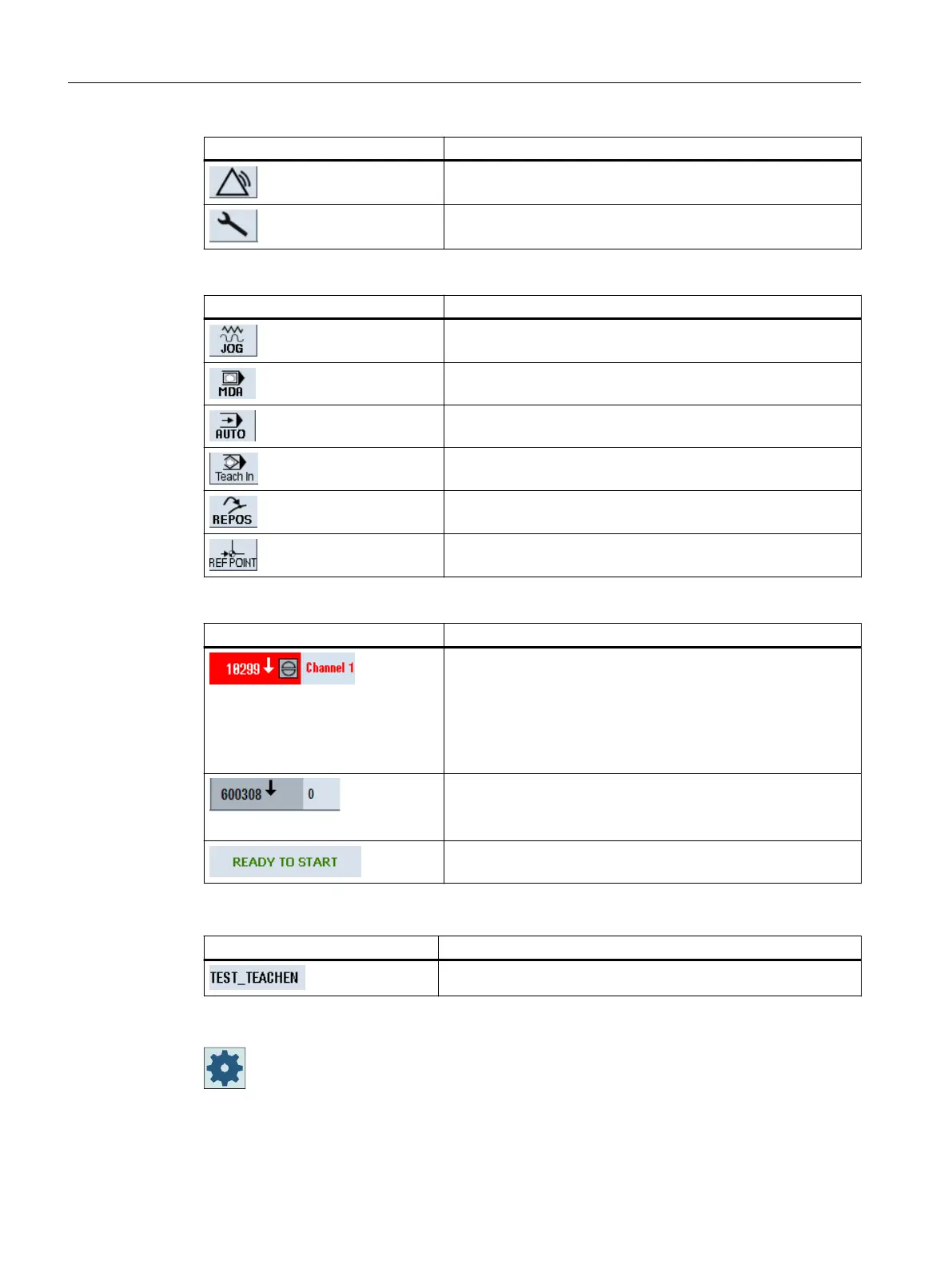

Display Meaning
"Diagnostics" operating area
"Startup" operating area
Active mode or function
Display Meaning
"Jog" mode
"MDA" mode
"AUTO" mode
"TEACH IN" function
"REPOS" function
"REF POINT" function
Alarms and messages
Display Meaning
Alarm display
The alarm numbers are displayed in white lettering on a red
background. The associated alarm text is shown in red lettering.
An arrow indicates that several alarms are active.
An acknowledgment symbol indicates that the alarm can be ac‐
knowledged or canceled.
NC or PLC message
Message numbers and texts are shown in black lettering.
An arrow indicates that several messages are active.
Messages from NC programs do not have numbers and appear
in green lettering.
Second line
Display Meaning
Program path and program name
The displays in the second line can be configured.
Machine manufacturer
Please observe the information provided by the machine manufacturer.
Introduction
2.4 User interface
Turning
44 Operating Manual, 06/2019, A5E44903486B AB
