Setting up the machine

4.1 Switching on and switching off

Startup

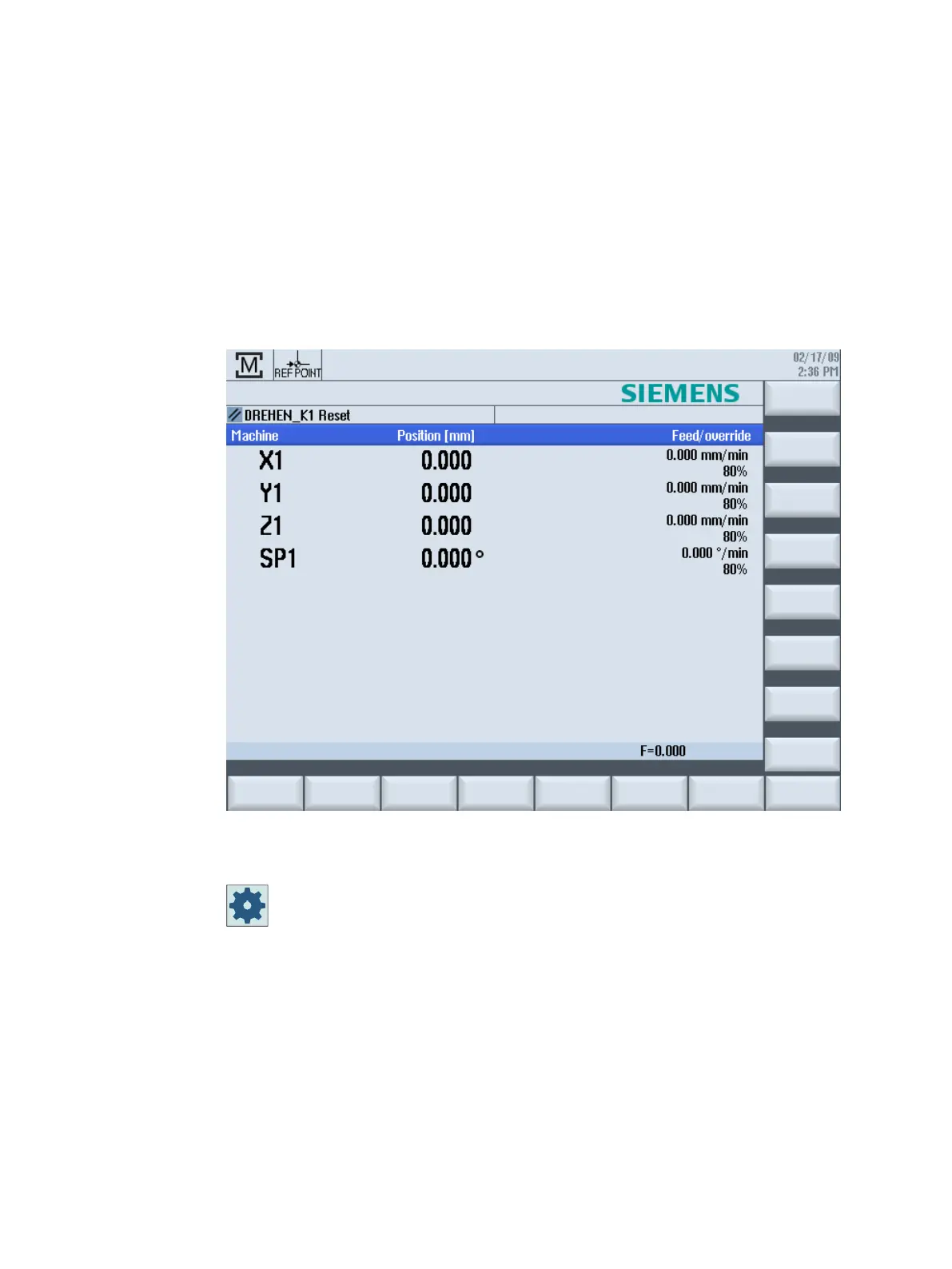

When the control starts up, the main screen opens according to the operating mode specified

by the machine manufacturer. This is usually the main screen for the "REF POINT" function.

Machine manufacturer

Please observe the information provided by the machine manufacturer.

Turning

Operating Manual, 06/2019, A5E44903486B AB 93

Default Chapter5
- Preface5
- Table of Contents9
