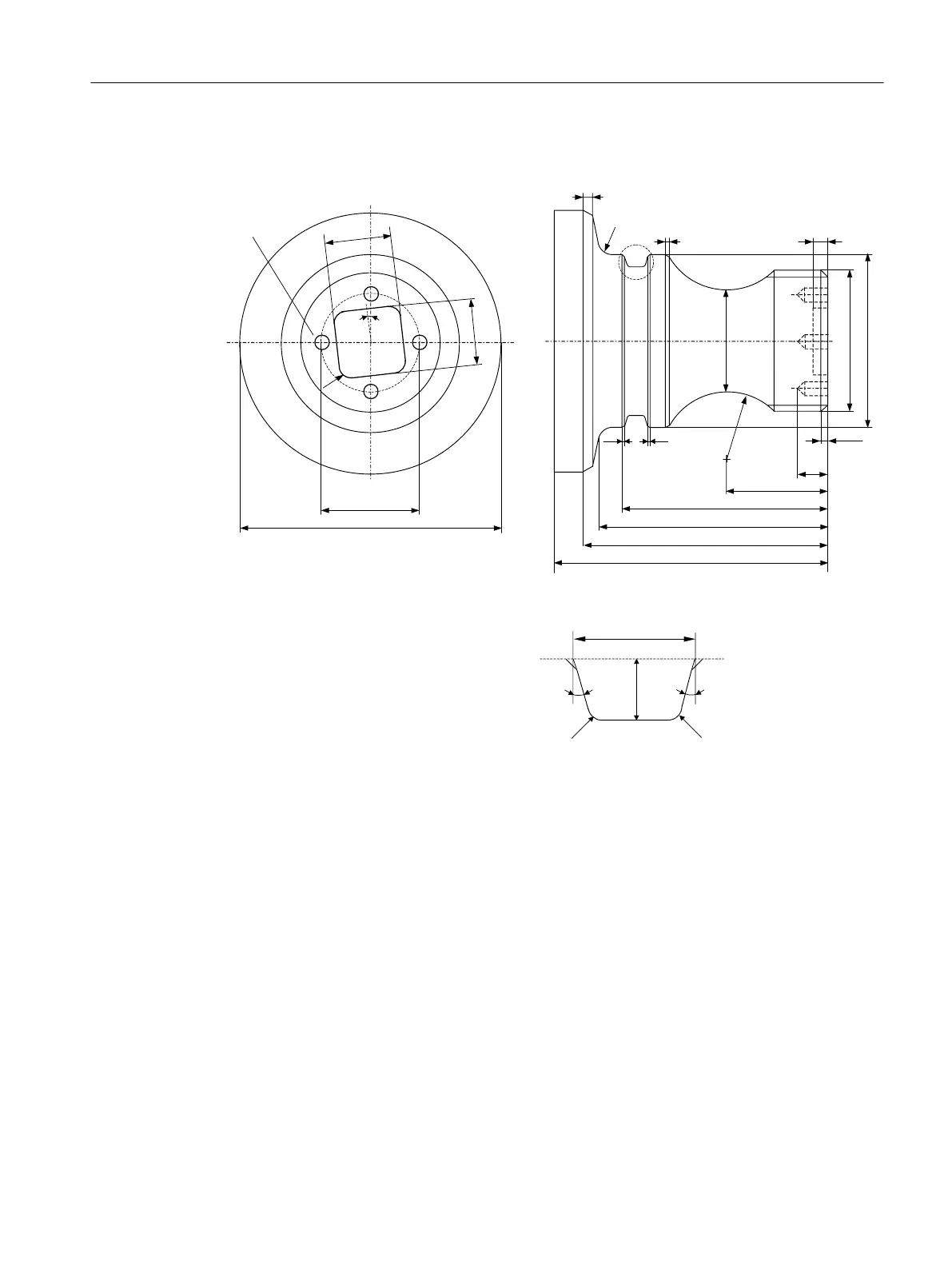

9.19.1 Workpiece drawing

[

ෘ

ෘ





ෘ



;





r

5

)6

)6

5

;



0[

ෘ



[r













5

)6)6

ෘ





r

5

9.19.2 Programming

1. Program header

1. Specify the blank.

Measurement unit mm

Blank Cylinder

XA 90 abs

ZA +1.0 abs

ZI -120 abs

ZB -100 abs

Retraction simple

XRA 2 inc

ZRA 5 inc

Creating a ShopTurn program

9.19 Example: Standard machining

Turning

Operating Manual, 06/2019, A5E44903486B AB 327
