17.7 Tool selection for the manual mode
For the preparatory actions in the manual mode, tool selection and spindle control are both
performed centrally in the T, S, M window.

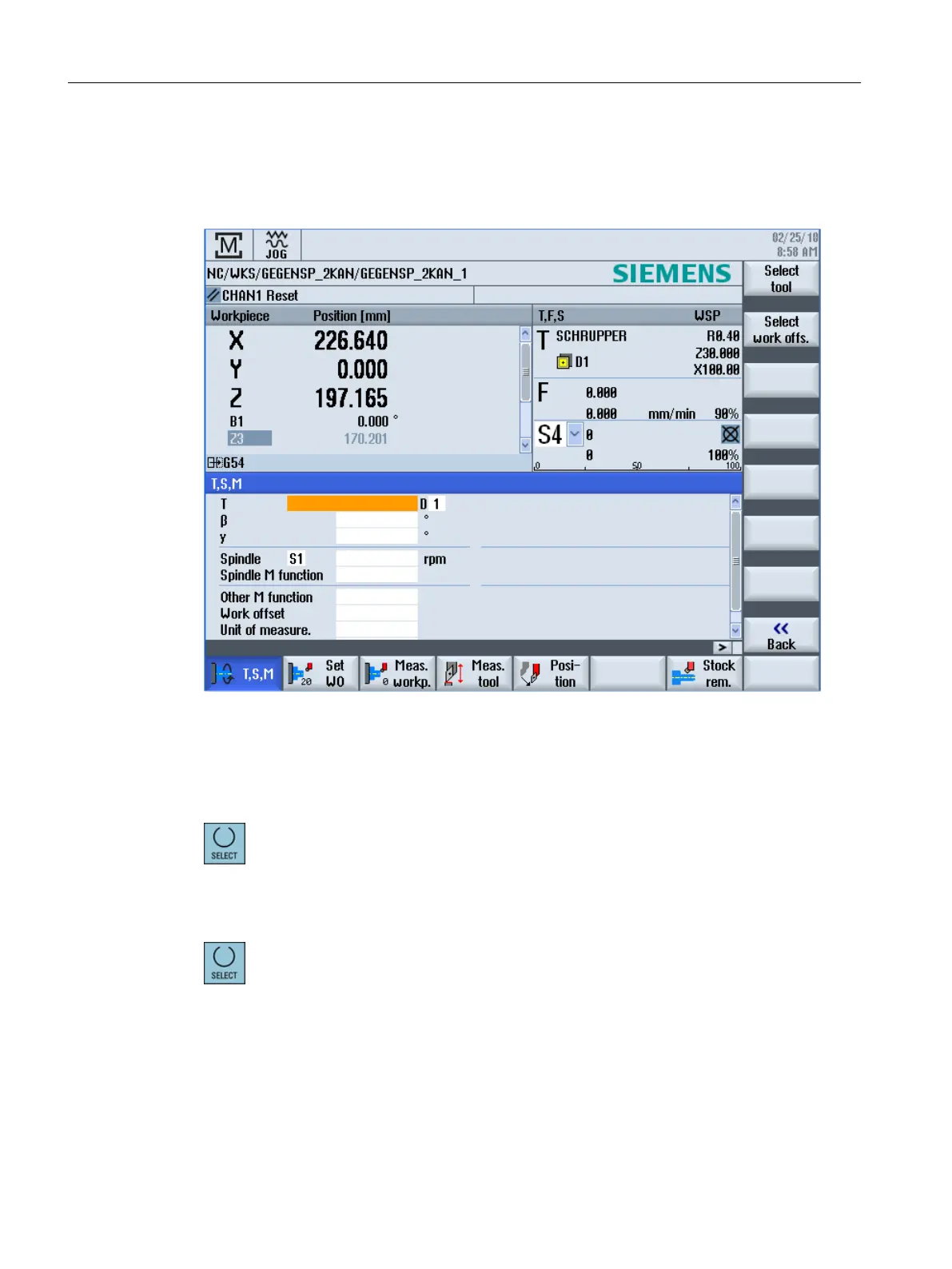

Figure 17-1 TSM window for the B and C axis
Procedure
Aligning the milling and turning tool with β angle:
Press the <SELECT> key and select
● 0° or
● 90° or
● Value entry box to freely enter the angle.
Aligning the turning tool with γ angle:
Press the <SELECT> key and select
● 0°
● 180°
● Value entry box to freely enter the angle.
See also
Selecting a tool and spindle (Page 138)
Working with a B axis (only 840D sl)
