4.10 Displaying setting data lists

You can display lists with configured setting data.

Machine manufacturer

Please refer to the machine manufacturer's specifications.

Procedure

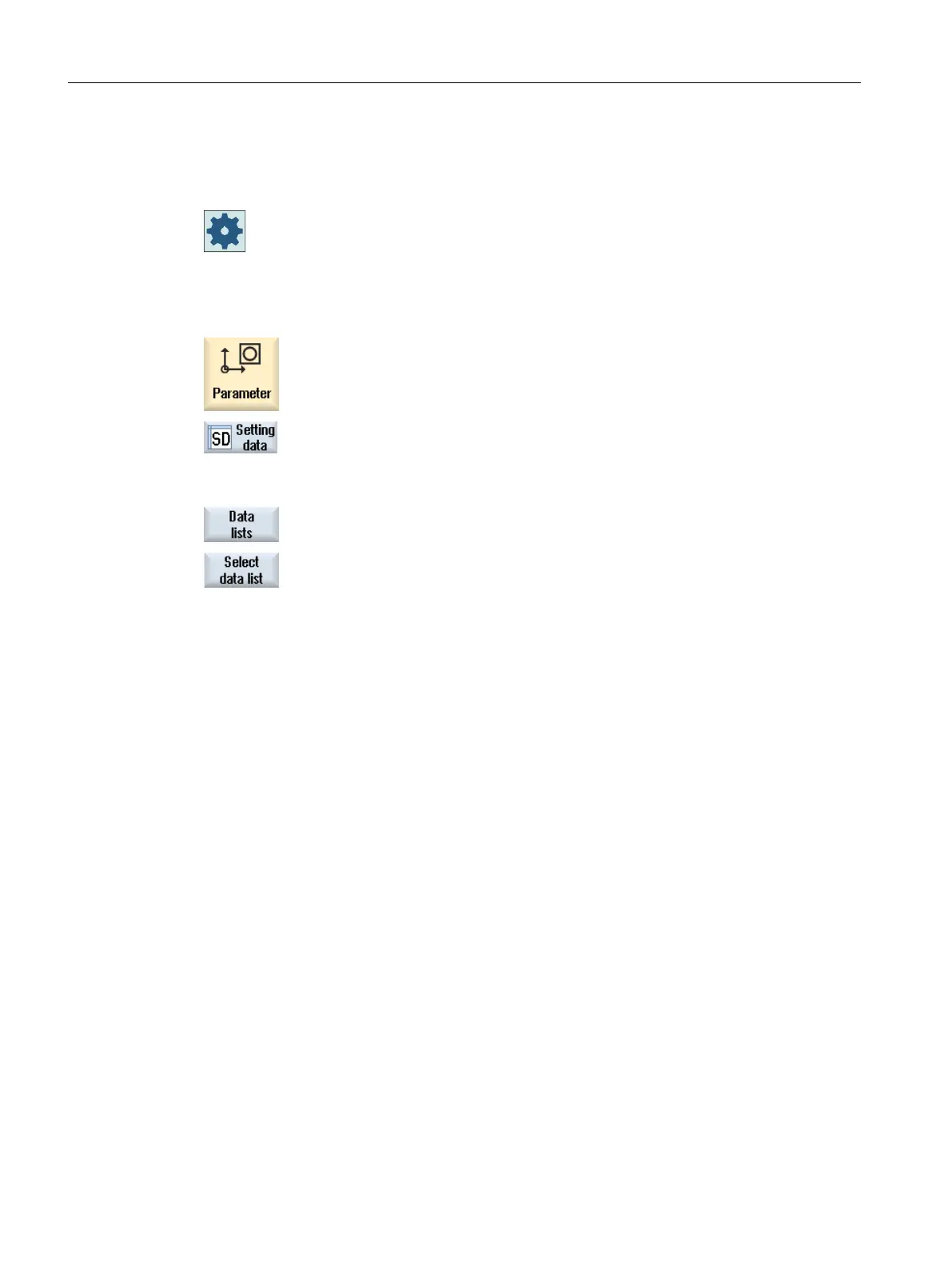

1. Select the "Parameter" operating area.

2. Press the "Setting data" and "Data lists" softkeys.

The "Setting Data Lists" window opens.

3. Press the "Select data list" softkey and in the "View" list, select the re‐

quired list with setting data.

Setting up the machine

4.10 Displaying setting data lists

Turning

130 Operating Manual, 06/2019, A5E44903486B AB
