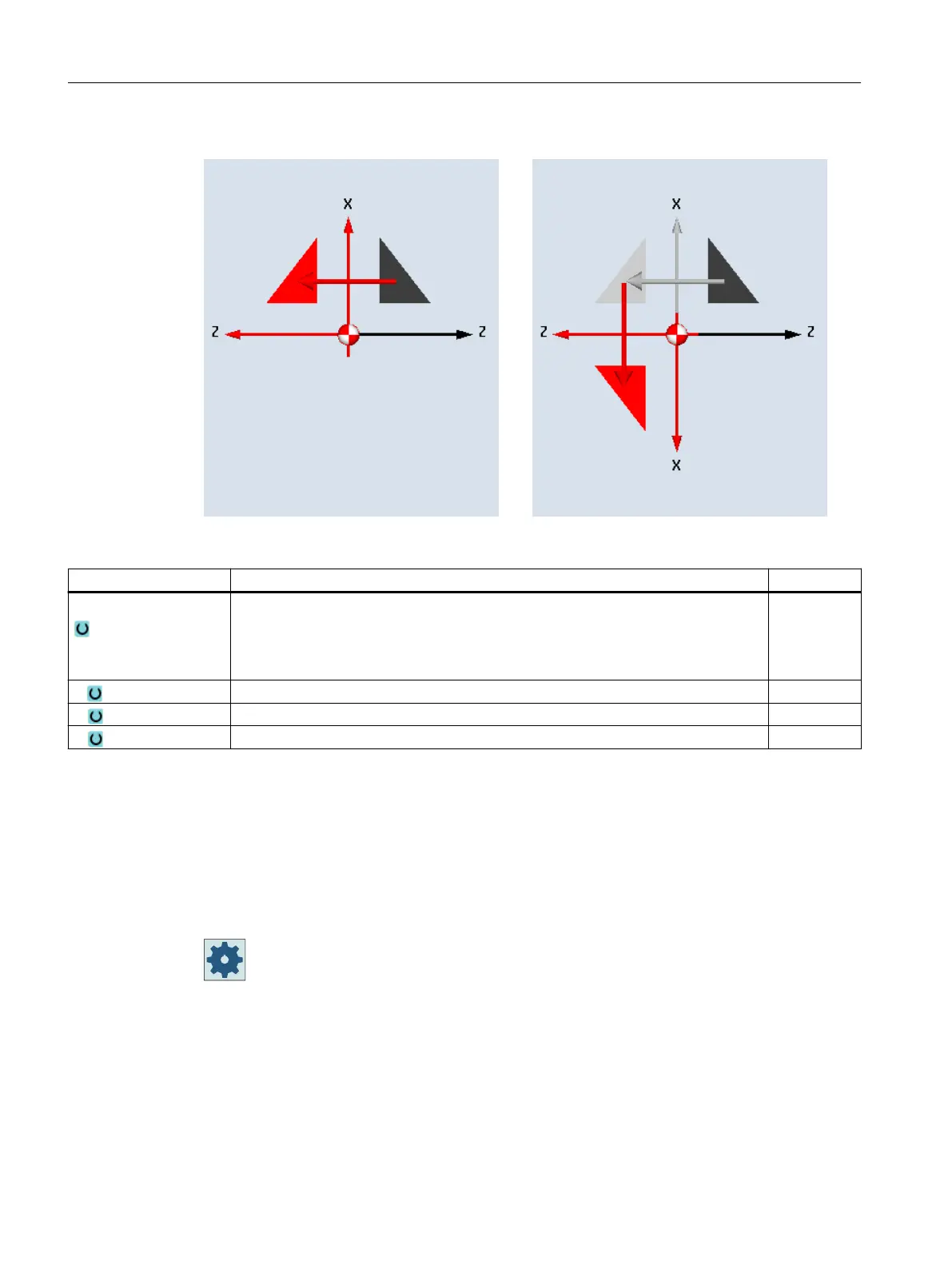

New mirroring Additive mirroring

Parameter Description Unit

Mirroring

● New

New mirroring

● Additive

Additive mirroring

Z Mirroring of the Z axis, on/off

X Mirroring of the X axis, on/off

Y Mirroring of the Y axis, on/off

10.7.8 Rotation C

You can rotate the C axis through a specific angle to enable subsequent machining operations

to be performed at a particular position on the face or peripheral surface.

The direction of rotation is set in a machine data element.

Machine manufacturer

Please refer to the machine manufacturer's specifications.

Programming technology functions (cycles)

10.7 Additional cycles and functions in ShopTurn

Turning

636 Operating Manual, 06/2019, A5E44903486B AB
