3. Enter the following parameters:
Machined surface Face C
Drilling depth Tip
Z1 10 inc
DT 0 s

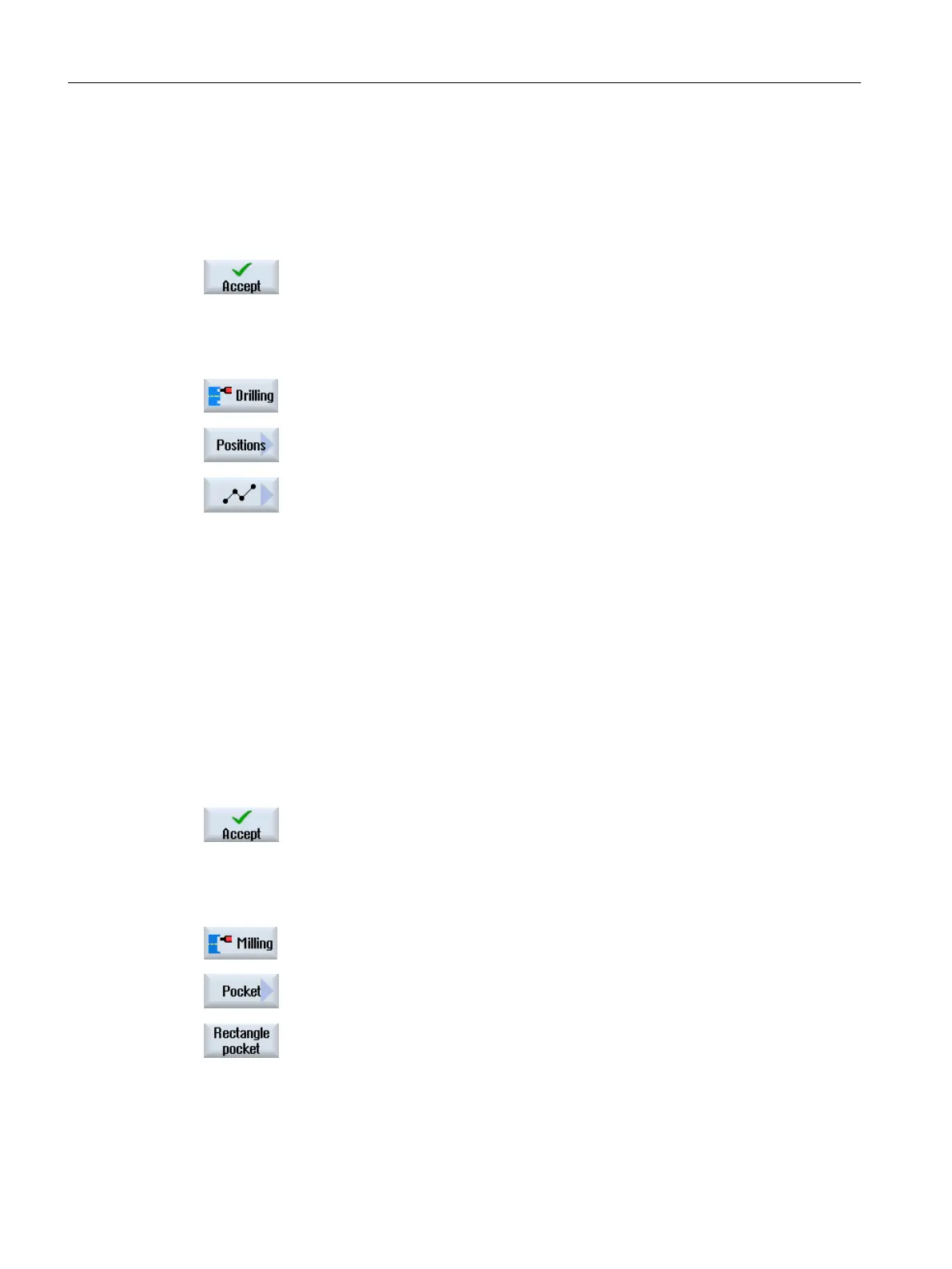

4. Press the "Accept" softkey.
13. Positioning
1. Press the "Drilling", "Positions" and "Freely Programmable Positions"
softkeys.
The "Positions" input window opens.
2. Enter the following parameters:
Machined surface Face C
Coordinate system Polar
Z0 0 abs
C0 0 abs
L0 16 abs
C1 90 abs
L1 16 abs
C2 180 abs
L2 16 abs
C3 270 abs
L3 16 abs
3. Press the "Accept" softkey.
14. Milling the rectangular pocket
1. Press the "Milling", "Pocket" and "Rectangular pocket" softkeys.
The "Rectangular Pocket" input window opens.
2. Enter the following technology parameters:
T Miller_D8 D1 F 0.030 mm/tooth V 200 m/min
3. Enter the following parameters:
Creating a ShopTurn program
9.19 Example: Standard machining
Turning
338 Operating Manual, 06/2019, A5E44903486B AB
