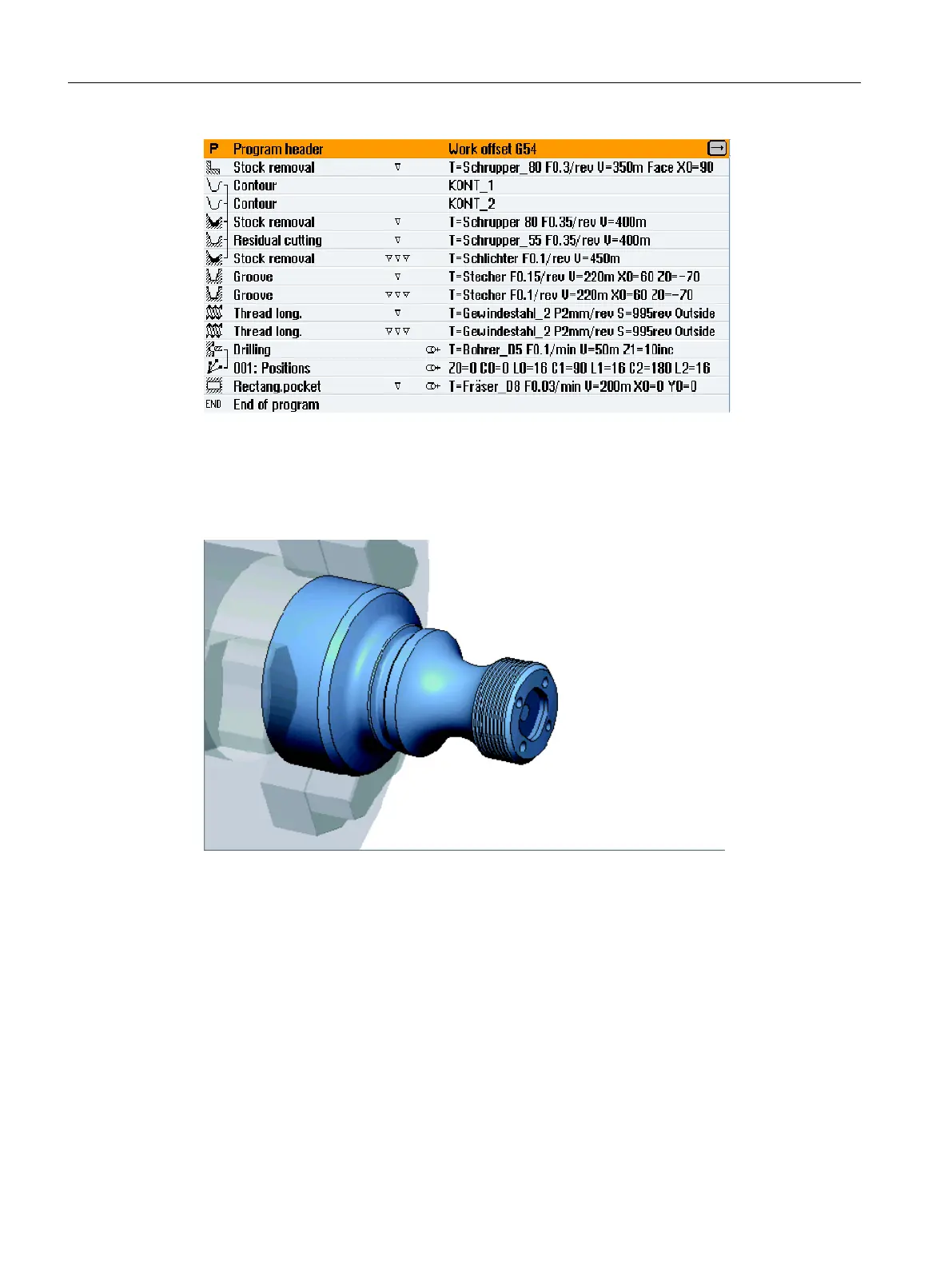

Figure 9-11 Process plan

Program test by means of simulation

During simulation, the current program is calculated in its entirety and the result displayed in

graphic form.

Figure 9-12 3D view

Creating a ShopTurn program

9.19 Example: Standard machining

Turning

340 Operating Manual, 06/2019, A5E44903486B AB
