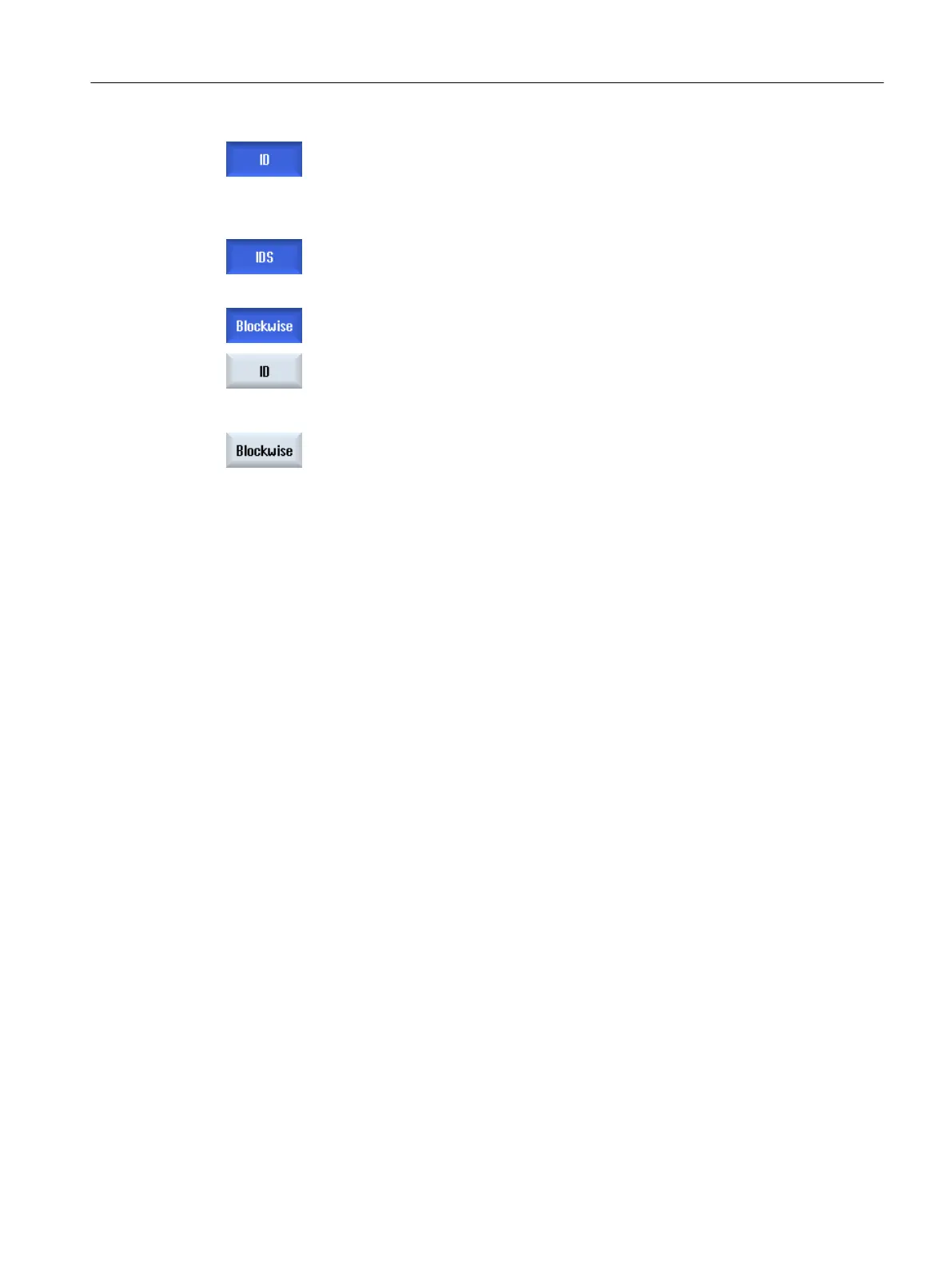

4. Press the "ID" softkey if you wish to hide the modal synchronized actions

in the automatic mode.

- AND / OR -

Press the "IDS" softkey if you wish to hide static synchronized actions.

- AND / OR -

Press the "Blockwise" softkey if you wish to hide the non-modal

synchronized actions in the automatic mode.

...

5. Press the "ID", "IDS" or "Blockwise" softkeys to re-display the corre‐

sponding synchronized actions.

Machining the workpiece

6.14 Displaying superimpositions

Turning

Operating Manual, 06/2019, A5E44903486B AB 221
