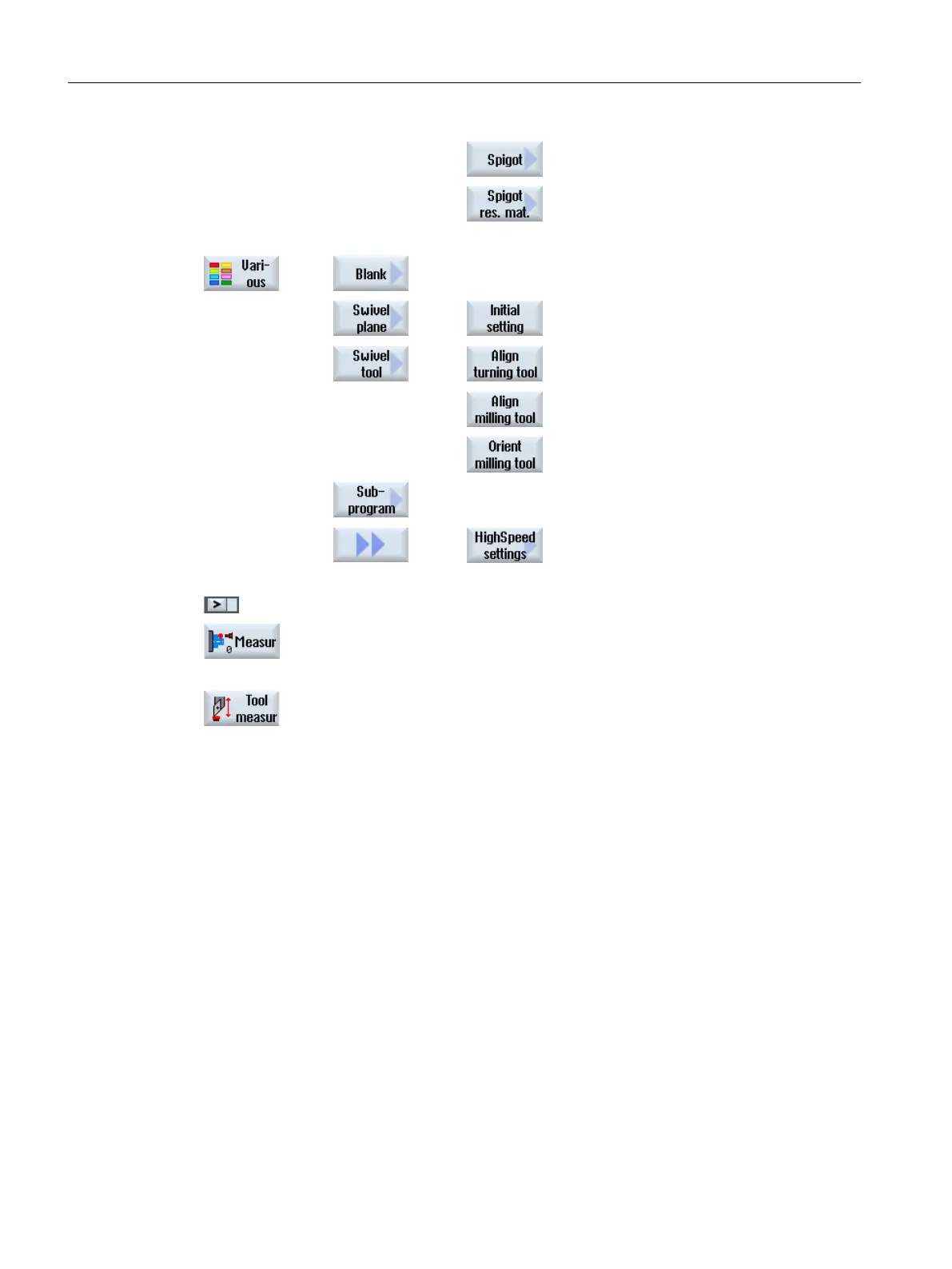

⇒ A menu tree with all of the available measuring variants of the measuring

cycle function "Measure workpiece" can be found in the following reference:

Programming Manual Measuring cycles / SINUMERIK 840D sl/828D

⇒ A menu tree with all of the available measuring variants of the measuring

cycle function "Measure tool" can be found in the following reference:

Programming Manual Measuring cycles / SINUMERIK 840D sl/828D

See also

General (Page 345)

Generating a G code program (Page 268)

Creating a G code program

8.8 Selection of the cycles via softkey

Turning

276 Operating Manual, 06/2019, A5E44903486B AB
