6. Retraction with G0 to the safety clearance of the reference point.
7. Retraction to retraction plane with G0 to drilling position in the two axes of the plane
(coordinates of the hole center point).
Procedure
1. The part program or ShopTurn program to be processed has been cre‐
ated and you are in the editor.
2. Press the "Drilling" softkey.
3. Press the softkey "Boring" for G code.
- OR -
3. Press the softkeys "Drilling Reaming" and "Boring" for ShopTurn

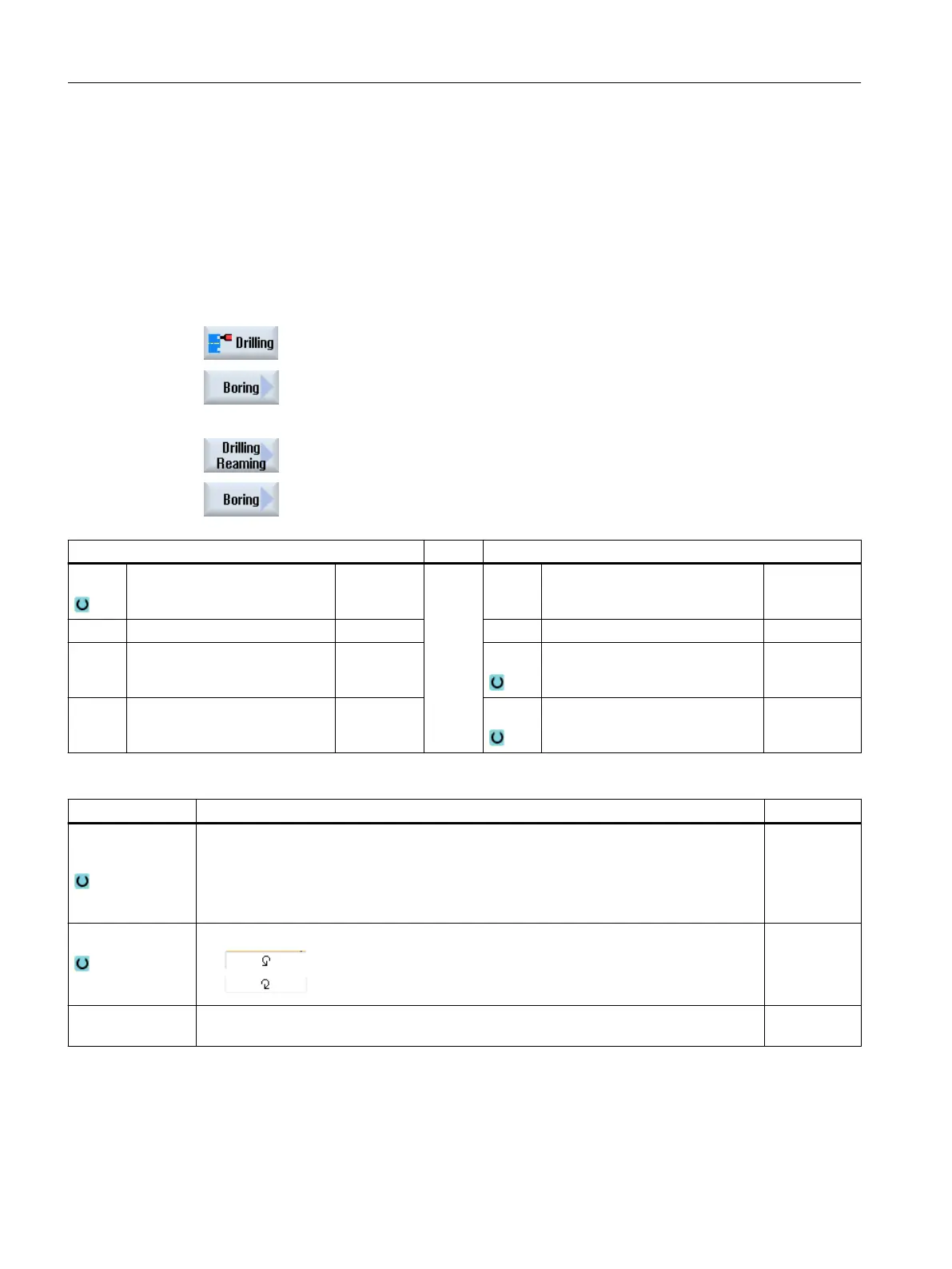

The "Boring" input window opens.
Parameters, G code program Parameters, ShopTurn program
PL Machining plane T Tool name
RP Retraction plane mm D Cutting edge number
SC Safety clearance mm F Feedrate mm/min
mm/rev
S / V Spindle speed or constant cutting
rate
rpm
m/min
Parameter Description Unit
Machining
position
(only for G code)
● Single position
Drill hole at programmed position.
● Position pattern
Position with MCALL
DIR
(only for G code)
Direction of rotation
●
●
Z0 (only for G
code)
Reference point Z mm
Programming technology functions (cycles)
10.1 Drilling
Turning
