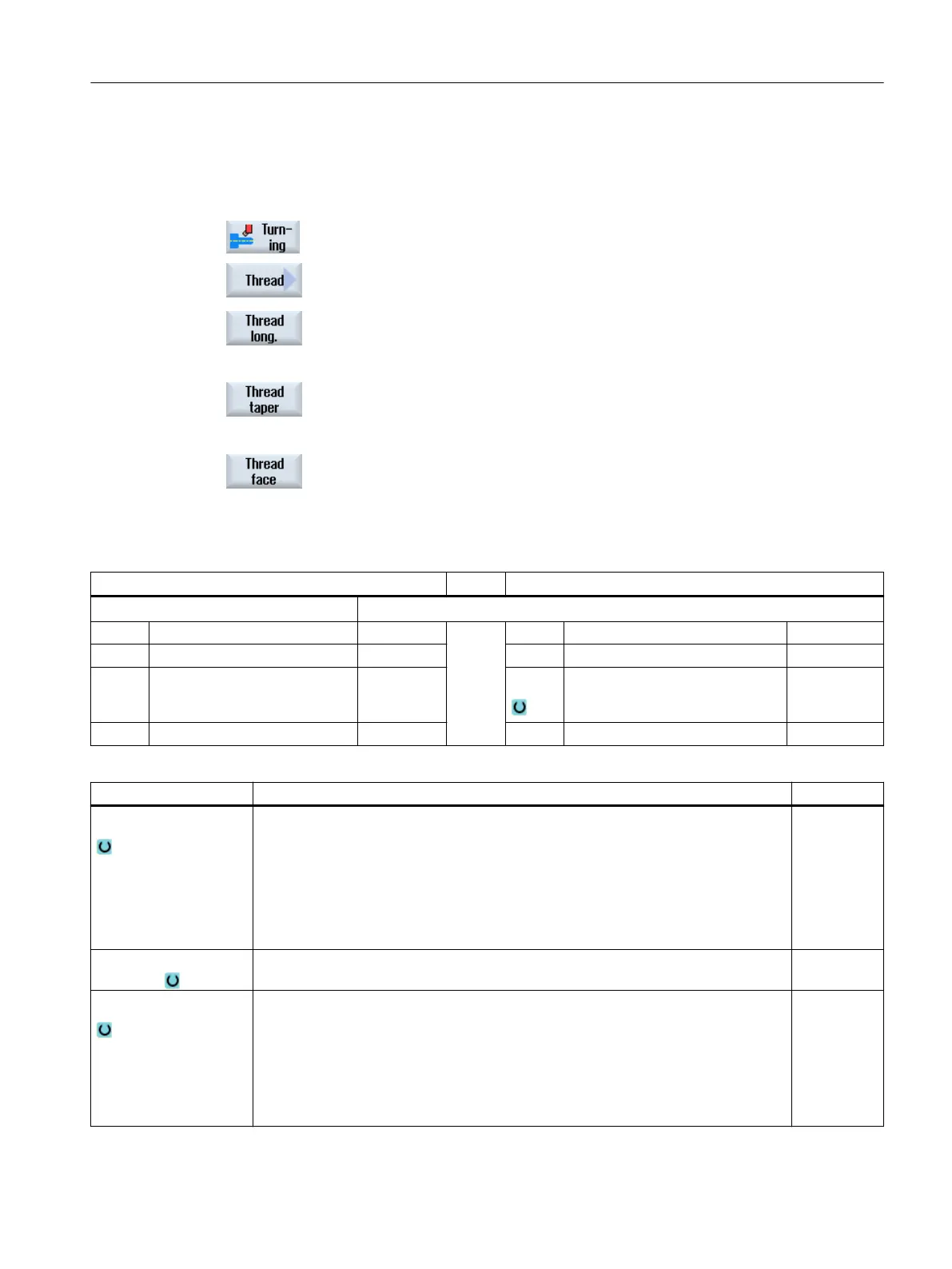

Procedure for longitudinal thread, tapered thread, or face thread
1. The part program or ShopTurn program to be processed has been cre‐
ated and you are in the editor.
2. Press the "Turning" softkey.
3. Press the "Thread" softkey.
The "Thread" input window opens.
4. Press the "Longitudinal thread" softkey.
The "Longitudinal Thread" input window opens.
- OR -
Press the "Tapered thread" softkey.
The "Tapered Thread" input window opens.
- OR -
Press the "Face thread" softkey.
The "Face Thread" input window opens.
Parameter "Longitudinal thread" in the "Input complete" mode
G code program parameters ShopTurn program parameters
Input
● Complete
PL Machining plane T Tool name
D Cutting edge number
S / V Spindle speed or constant cutting
rate
rpm
m/min
Parameter Description Unit
Table Thread table selection:
● Without
● ISO metric
● Whitworth BSW
● Whitworth BSP
● UNC
Selection - (not for table
"Without")
Data, table value, e.g. M10, M12, M14, ...
P Select the thread pitch/turns for table "Without" or specify the thread pitch/turns
corresponding to the selection in the thread table:
● Thread pitch in mm/revolution
● Thread pitch in inch/revolution
● Thread turns per inch
● Thread pitch in MODULUS
mm/rev
in/rev
turns/"
MODULUS
Programming technology functions (cycles)
10.2 Rotate
Turning
Operating Manual, 06/2019, A5E44903486B AB 419
