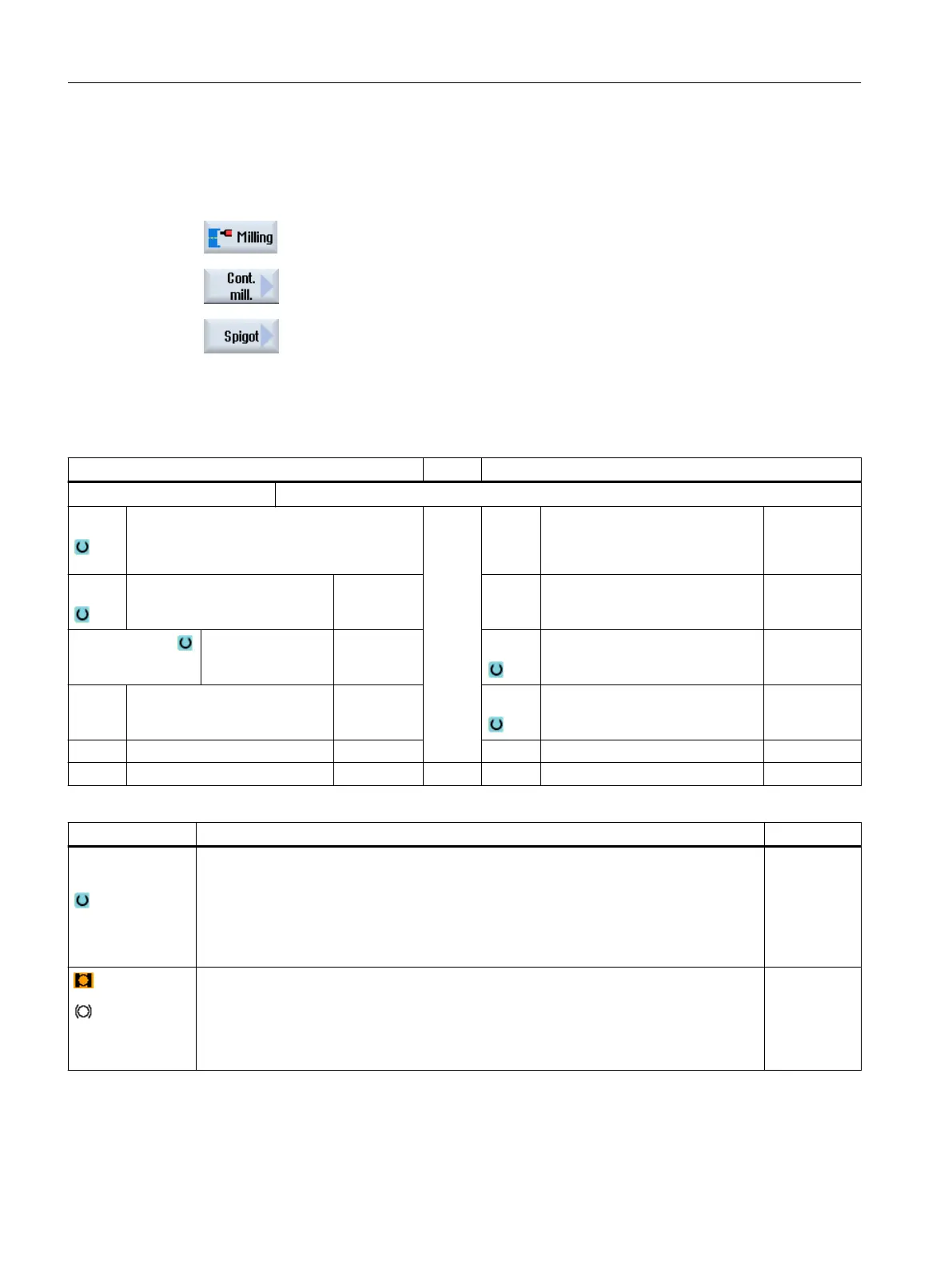

Procedure
1. The part program or ShopTurn program to be processed has been cre‐
ated and you are in the editor.
2. Press the "Milling", "Contour milling" and "Spigot" softkeys.
The "Mill spigot" input window opens.
3. Select the "Roughing" machining type.
Parameters in the "Input complete" mode
G code program parameters ShopTurn program parameters
Input
● Complete
PRG
● Name of the program to be generated
● Automatic
Automatic generation of program names
T Tool name
PL Machining plane D Cutting edge number
Milling direction
● Climbing
● Conventional
F Feedrate mm/min
mm/tooth
RP Retraction plane mm S / V Spindle speed or constant cutting
rate
rpm
m/min
SC Safety clearance mm
F Feedrate mm/min
Parameter Description Unit
Machining
surface
(only for Shop‐
Turn)
● Face C
● Face Y
● Face B
● Peripheral surface C
● Peripheral surface Y
(only for Shop‐
Turn)
Clamp/release spindle (only for end face Y/B and peripheral surface Y)
The function must be set up by the machine manufacturer.
Programming technology functions (cycles)
10.5 Contour milling
Turning
598 Operating Manual, 06/2019, A5E44903486B AB
