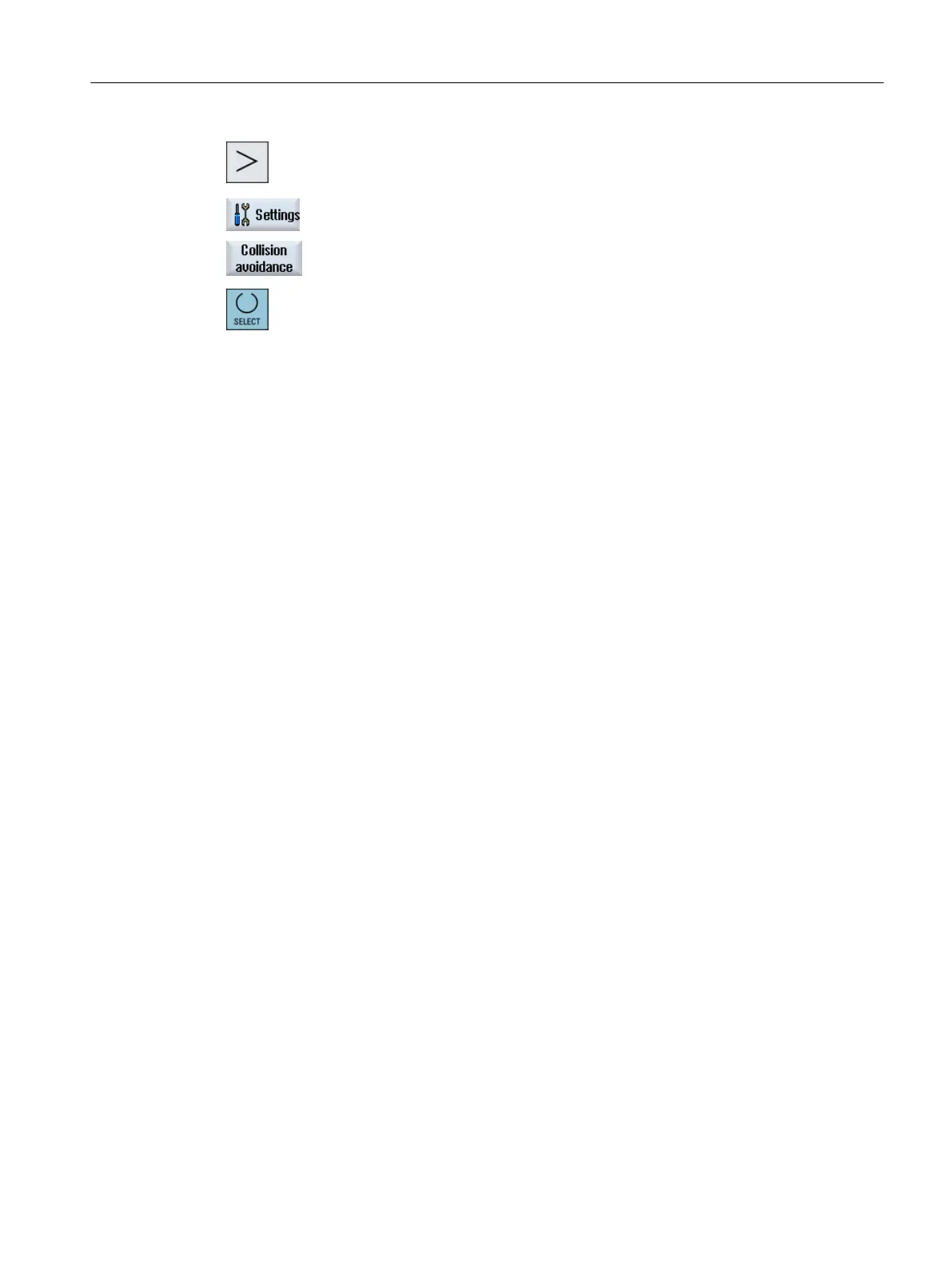

3. Press the menu forward key and the "Settings" softkey.
4. Press the "Collision avoidance" softkey.
The "Collision Avoidance" window opens.
5. In the "Collision avoidance" line for the required operating modes (e.g. for
JOG/MDI), select the entry "On" to activate the collision avoidance or
"Off" to deactivate collision avoidance.
6. Deactivate the "Tools" checkbox if you only want to monitor the machine
protection areas.
See also
Actual value window (Page 45)
Collision avoidance
12.2 Set collision avoidance
Turning
Operating Manual, 06/2019, A5E44903486B AB 715
